Echo 99944200553 ProSweep Attachment S/N: S08200001001 - S08200999999

Model: 99944200553 ProSweep Attachment

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

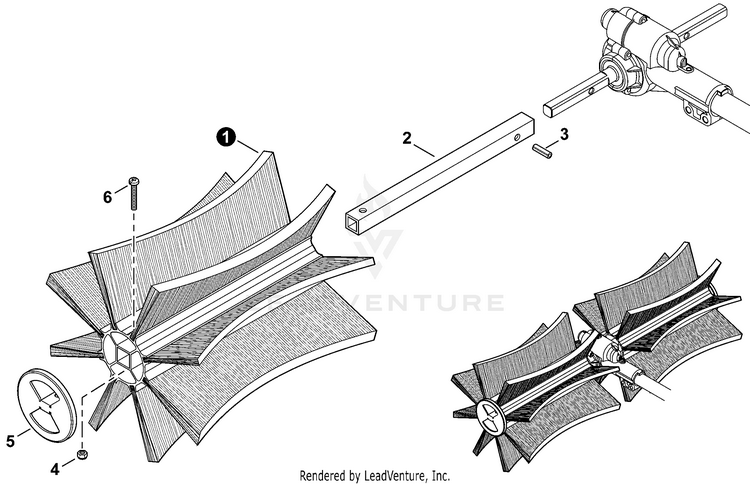

Brush

...
...
1
BRUSH KIT (2 pieces) SET OF 2 ECH-P021007010
...
2
SHAFT, DRUM ECH-C517000070
...
3
PIN, SPRING ECH-40452325560
...
4
NUT, LOCK M5 ECH-90056000005
...
5
CAP, DRUM ECH-25023025561
...
6
SCREW 5x30 ECH-90022005030

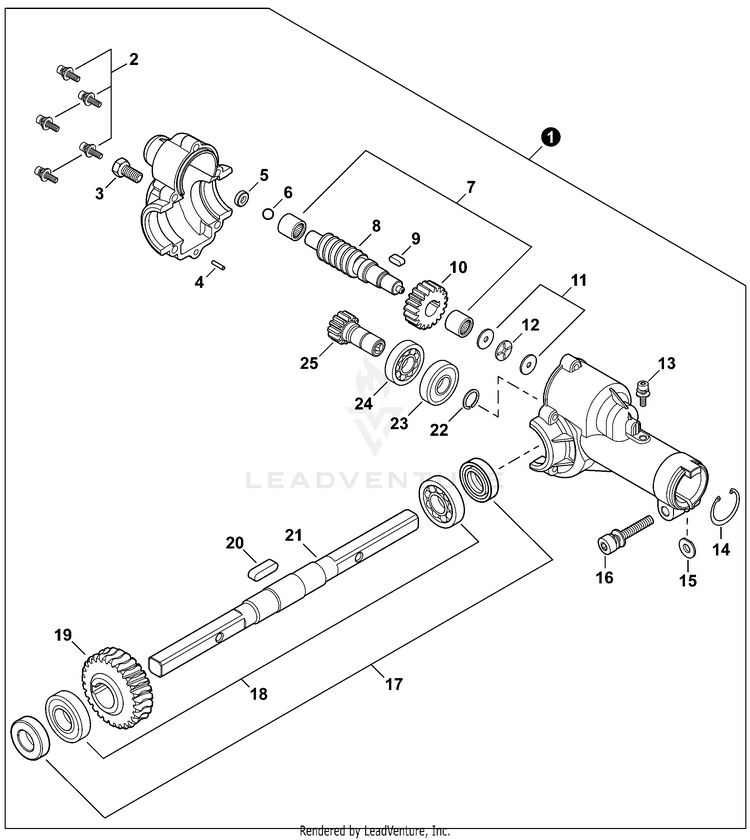

Gear case

...
...
1
GEAR CASE ASSY Includes ITEMS 2-25 ECH-C051000301
...
2
BOLT 5x20 ECH-90016205020
...
3
BOLT 8x10 ECH-90010008010
...
4
PIN, LOCATING 4x20 ECH-V622000030
...
5
SPACER ECH-V376001040
...
6
BALL ECH-V585000030
...
7
BEARING, NEEDLE 10 ECH-V555000060
...
8
GEAR, WORM ECH-V652000060
...
9
KEY, WOODRUFF ECH-V381000010
...
10
GEAR, SPUR 19 TOOTH ECH-V650000380
...
11
WASHER ECH-V340000230
...
12
BEARING, THRUST ECH-V590000010
...
13
BOLT 5x12 ECH-90016205012
...
14
RING, RETAINING 24 ECH-61033521460
...
15
D-WASHER ECH-V340000220
...
16
BOLT 6x30 ECH-90016206030
...
17
SEAL, OIL 17 ECH-60541611050
...
18
BEARING, BALL 6003 ECH-9400306003
...
19
GEAR, WORM WHEEL ECH-V653000000
...
20
KEY, WOODRUFF ECH-V381000000
...
21
SHAFT, WORM WHEEL ECH-C534000490
...
22
RING, SNAP 12 ECH-90070600012
...
23
BEARING, BALL 6901 ECH-90085706901
...
24
BEARING, BALL 6901 ECH-90085506901
...
25
GEAR, SPUR 12 TOOTH ECH-V650000370

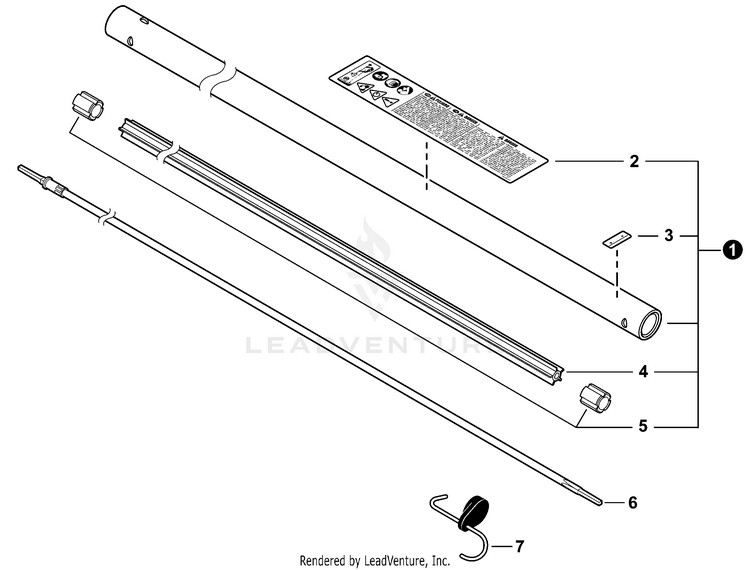

Main Pipe S/N: S08200001001 - S08200011214

...
...
1
MAIN PIPE ASSY Includes ITEMS 2-5 ECH-C059000250
...
2
LABEL - CAUTION ECH-X505009770
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000520
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE ECH-C506000760
...
7
HANGER, ATTACHMENT ECH-P021047620

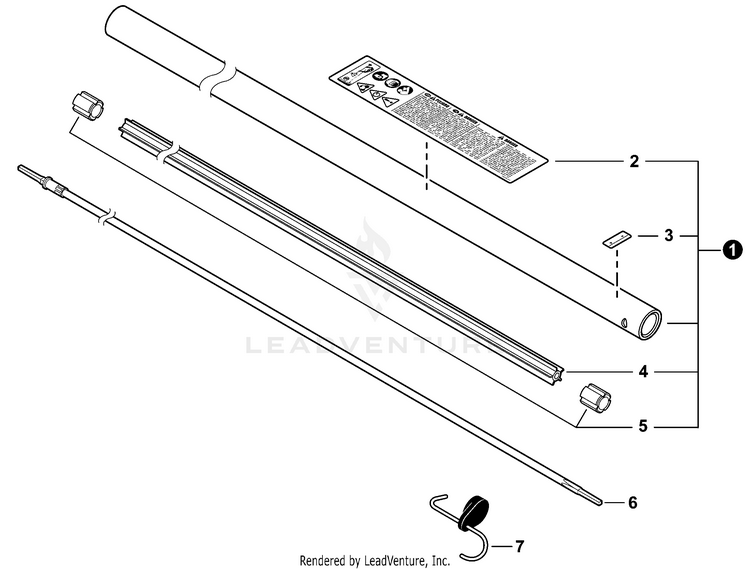

Main Pipe S/N: S08200011215 - S08200999999

...
...
1
MAIN PIPE ASSY Includes ITEMS 2-5 ECH-C059000250
...
2
LABEL - CAUTION ECH-X505009770
...
3
LABEL - ALIGNMENT ECH-89015204930
...
4
LINER - FLEXIBLE ECH-C507000520
...
5
STOPPER ECH-61024644730
...
6
DRIVESHAFT - FLEXIBLE ECH-C506000760
...
7
HANGER, ATTACHMENT ECH-P021047620
...
...
...
...
...
