Echo 99944200540 Speed-Feed Trimmer Attachment S/N: S06400001001 - S06400999999

Model: 99944200540 Speed-Feed Trimmer Attachment

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

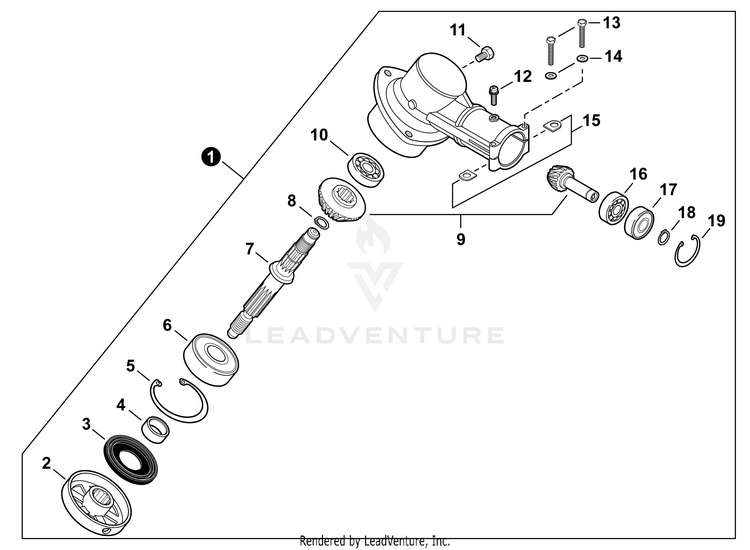

Gear case S/N: S06400001001 - S06400145917

...
...
1
GEAR CASE ASSY Includes Items 2-19 ECH-P021053000
...
2
PLATE, ADAPTOR - UPPER ECH-61031347731
...
3
SEAL, OIL 22 ECH-61041307130
...
4
SPACER 11.8x15x9 ECH-61031507130
...
5
RING, SNAP 32 ECH-90070200032
...
6
BEARING, BALL 6201 ECH-90081006201
...
7
SHAFT, GEAR ECH-C534000270
...
8
RING, SNAP 12 ECH-90070600012
...
9
GEAR SET ECH-61030044830
...
10
BEARING, BALL 609 ECH-90080000609
...
11
BOLT M8x8 ECH-61043450031
...
12
SCREW 5x10 ECH-90024205010
...
13
BOLT 5x35 SP ECH-90010005035
...
14
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
15
D-WASHER ECH-61023904130
...
16
BEARING, BALL 6900 ECH-90085506900
...
17
BEARING, BALL 6900Z ECH-90085806900
...
18
RING, SNAP 10 ECH-90070600010
...
19
RING, SNAP 22 ECH-90070200022
...
...
...
...
...
