Echo 99944200540 Speed-Feed Trimmer Attachment S/N: S06400001001 - S06400999999

Model: 99944200540 Speed-Feed Trimmer Attachment

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

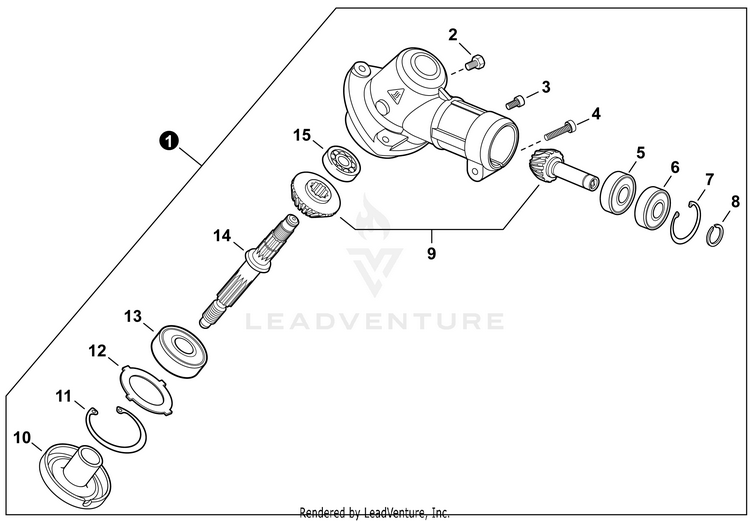

Gear case S/N: S06400374601 - S06400999999

...
...
1
GEAR CASE ASSY Includes Items 2-15 ECH-P021051520
...
2
BOLT M8x8 ECH-61043450031
...
3
BOLT, TORX 5x12 ECH-V805000140
...
4
BOLT, TORX 5x25 ECH-V805000170
...
5
BEARING, BALL 609A ECH-9411000609
...
6
BEARING, BALL 609ZA ECH-9411100609
...
7
RING, SNAP 25 ECH-90070200025
...
8
RING, SNAP 9 ECH-90070100009
...
9
GEAR SET ECH-V000000250
...
10
PLATE, ADAPTOR - UPPER ECH-C535001370
...
11
RING, SNAP 32 ECH-90070200032
...
12
WASHER ECH-V340000180
...
13
BEARING, BALL 6201 ECH-90081206201
...
14
SHAFT, GEAR ECH-C534001090
...
15
BEARING, BALL 629A ECH-9411000629
...
...
...
...
...
