Echo 600sx S/N: C69415001001 - C69415999999 Chainsaw

Model: 600sx S/N: C69415001001 - C69415999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

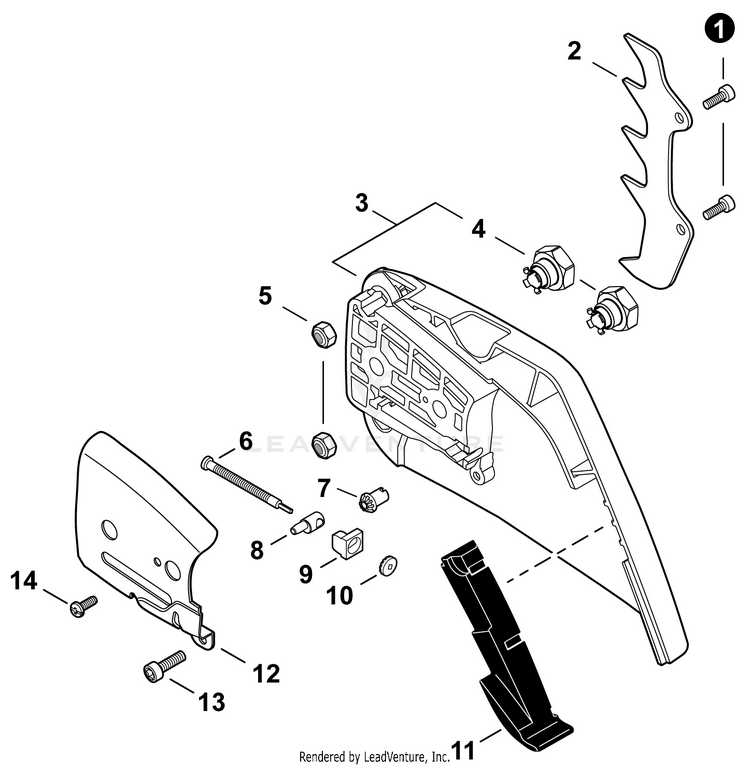

Sprocket Guard S/N C69415001577 - C69415999999

...
...
1
BOLT, TORX 5x12 ECH-V805000300
...
2
SPIKE, BUMPER ECH-C304000300
...
3
GUARD, SPROCKET Includes item 4 ECH-C300001210
...
4
NUT 8 ECH-V265000660
...
5
NUT, LOCK M5 ECH-90056000005
...
6
SCREW, CHAIN TENSION 63 MM ECH-V203002140
...
7
GEAR, BEVEL ECH-V651001040
...
8
TENSIONER, CHAIN ECH-C309000160
...
9
COLLAR 8 ECH-V355000800
...
10
GEAR, BEVEL ECH-V651001050
...
11
CUSHION ECH-C302000011
...
12
PLATE, GUIDE - OUTER ECH-C305000101
...
13
BOLT, TORX 4x12 ECH-V804000000
...
14
SCREW 3x5 ECH-9132503005
...
...
...
...
...
