Echo 600sx S/N: C69415001001 - C69415999999 Chainsaw

Model: 600sx S/N: C69415001001 - C69415999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

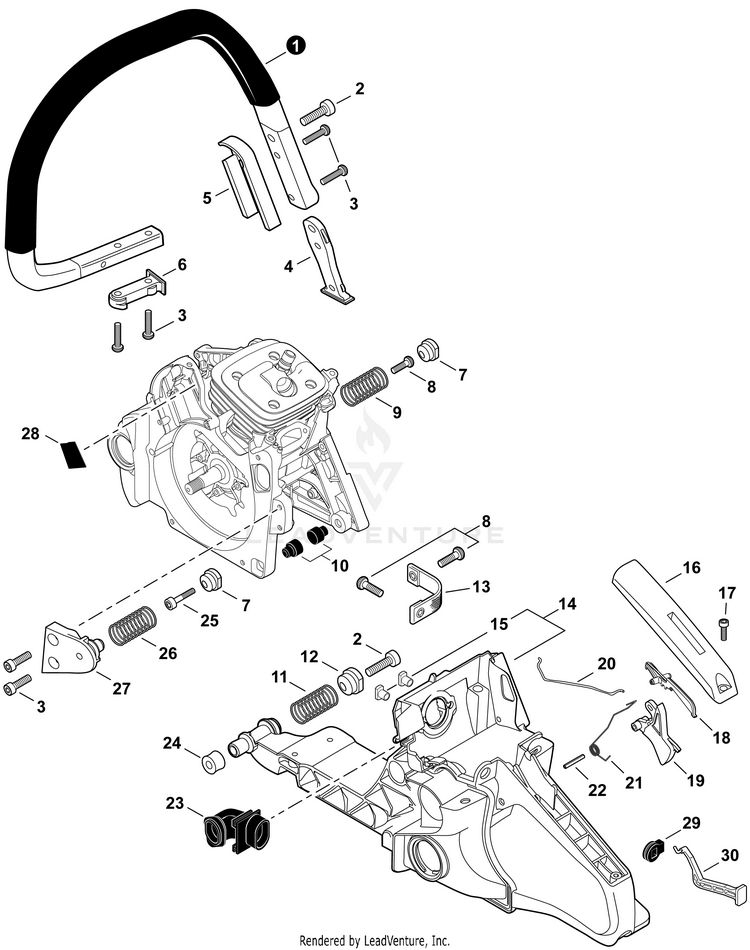

Handles

...
...
1
HANDLE, FRONT ECH-C400001171
...
2
BOLT, TORX 6x20 ECH-V806000000
...
3
BOLT, TORX 5x20 ECH-V805000010
...
4
MOUNT, HANDLE ECH-C405000560
...
5
HOLDER, SPRING ECH-V456000280
...
6
MOUNT, HANDLE ECH-C405000570
...
7
HOLDER, SPRING 14.4 ECH-V456000080
...
8
BOLT, TORX 5x16 ECH-V805000000
...
9
SPRING, COMPRESSION 17x38.4x2.6 ECH-V450000730
...
10
CUSHION ECH-V420003800
...
11
SPRING, COMPRESSION 20x40x3.3 ECH-V450000771
...
12
HOLDER, SPRING 17 ECH-V456000101
...
13
STRAP, SAFETY ECH-C617000362
...
14
HANDLE, REAR Includes Item 15 ECH-C410001262
...
15
NUT M5 ECH-V263000450
...
16
COVER, HANDLE ECH-C411000001
...
17
BOLT, TORX 4x12 ECH-V804000000
...
18
LEVER, THROTTLE LOCKOUT ECH-17809019830
...
19
TRIGGER, THROTTLE ECH-C450000360
...
20
ROD, THROTTLE ECH-C454000170
...
21
SPRING, TORSION ECH-V452000260
...
22
PIN, SPRING 4x25 SUS ECH-90034540025
...
23
PIPE, AIR INTAKE ECH-A239000060
...
24
CUSHION 10 ECH-V404000210
...
25
BOLT, TORX 5x25 ECH-V805000230
...
26
SPRING, COMPRESSION 17x36.7x2.6 ECH-V450000760
...
27
HOLDER, SPRING ECH-V456000110
...
28
CUSHION ECH-V376001780
...
29
GROMMET, CHOKE ECH-V130000030
...
30
ROD, CHOKE ECH-A241000192
...
...
...
...
...
