Echo 600sx S/N: C69415001001 - C69415999999 Chainsaw

Model: 600sx S/N: C69415001001 - C69415999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

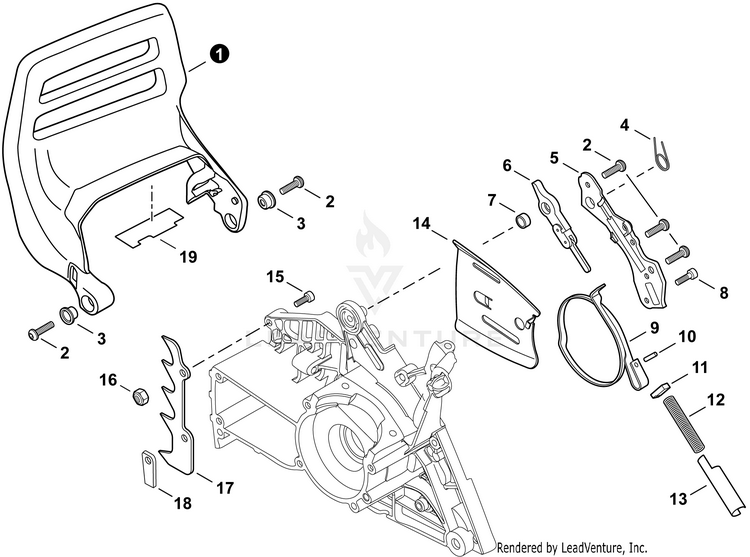

Chain Brake

...
...
1
LEVER, BRAKE ECH-C320000183
...
2
BOLT, TORX 5x16 ECH-V805000000
...
3
COLLAR 10 ECH-V356000440
...
4
SPRING, TORSION ECH-V452000400
...
5
COVER, BRAKE ECH-C345000343
...
6
CONNECTOR, BRAKE ECH-C334000111
...
7
SPACER 12x10xT: 1.0 ECH-V356000470
...
8
BOLT, TORX 4x12 ECH-V804000000
...
9
BAND, BRAKE ECH-C328000121
...
10
PIN, SPRING 3x9.8 ECH-9305030098
...
11
GUIDE ECH-V376000450
...
12
SPRING, COMPRESSION 12x70.5 ECH-V450000740
...
13
PLATE, SIDE ECH-C603000220
...
14
PLATE, GUIDE - INNER ECH-C305000111
...
15
BOLT, TORX 5x16 ECH-V805000250
...
16
NUT, LOCK M5 ECH-90056000005
...
17
SPIKE, BUMPER ECH-C304000290
...
18
SPACER ECH-V376001890
...
19
SHIELD, HEAT 75x27x0.15 ECH-V341000131
...
...
...
...
...
