Echo 600sx S/N: C69415001001 - C69415999999 Chainsaw

Model: 600sx S/N: C69415001001 - C69415999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

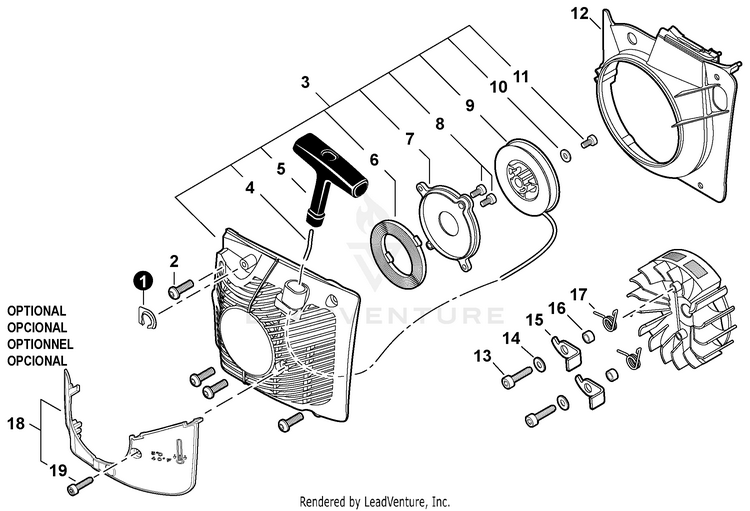

Recoil Starter S/N C69415001001 - C69415001096

...
...
1
PLATE, EYE ECH-V150003800
...
2
BOLT, TORX 5x20 ECH-V805000010
...
3
STARTER ASSY, RECOIL Includes Items 4-11 ECH-P200001020
...
4
ROPE, STARTER 4x950 ECH-A509000540
...
5
GRIP, STARTER ECH-A511000072
...
6
SPRING, RECOIL ECH-17722035430
...
7
PLATE, STARTER ECH-A503000032
...
8
BOLT, TORX 4x12 ECH-V804000000
...
9
REEL, ROPE ECH-A506000112
...
10
WASHER 5.2x16x1.0 ECH-17721402830
...
11
BOLT, TORX 5x10 ECH-V805000130
...
12
STARTER & FAN COVER KIT ECH-P200001011
...
13
BOLT, TORX 5x16 ECH-V835000000
...
14
WASHER 5.5x12x0.8 ECH-90060300005
...
15
PAWL, STARTER ECH-17721819830
...
16
SPACER 5.2x8x2.1 ECH-17724704630
...
17
SPRING, TORSION ECH-17723435430
...
18
SHIELD KIT - SNOW Includes Item 19 ECH-P021045730
...
19
BOLT, TORX 4x12 ECH-V804000000
...
...
...
...
...
