Echo 600sx S/N: C35912001001 - C35912999999 Chainsaw

Model: 600sx S/N: C35912001001 - C35912999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

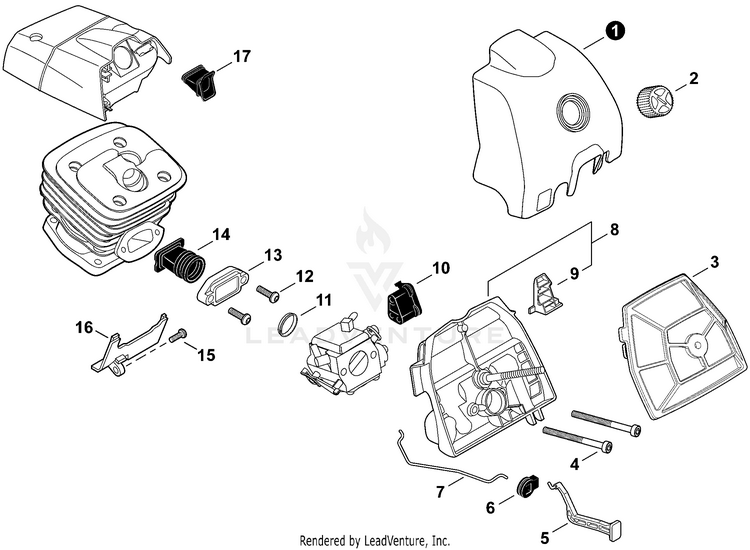

INTAKE, AIR FILTER

...
...
1
COVER, AIR FILTER ECH-A232000512
...
2
KNOB, AIR FILTER COVER ECH-A235000201
...
3
FILTER ASSY, AIR ECH-P021016372
...
4
BOLT, TORX 5x50 ECH-V805000080
...
5
ROD, CHOKE ECH-A241000192
...
6
GROMMET, CHOKE ECH-V130000030
...
7
ROD, THROTTLE ECH-C454000170
...
8
CASE ASSY, AIR FILTER Includes ITEM 9 ECH-P021045111
...
9
SHUTTER, AIR ECH-A219000000
...
10
GROMMET, NEEDLE ECH-V131000020
...
11
COLLAR 18.6x20.4x4 ECH-V360000060
...
12
BOLT, TORX 5x16 ECH-V805000000
...
13
HOLDER, BELLOWS ECH-A206000010
...
14
BELLOWS, INTAKE ECH-A202000081
...
15
BOLT, TORX 5x16 ECH-V805000000
...
16
GUIDE, AIR ECH-E106000040
...
17
PIPE, INTAKE ECH-A239000070
...
...
...
...
...
