Echo 591 S/N: C69115001001 - C69115999999 Chainsaw

Model: 591 S/N: C69115001001 - C69115999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

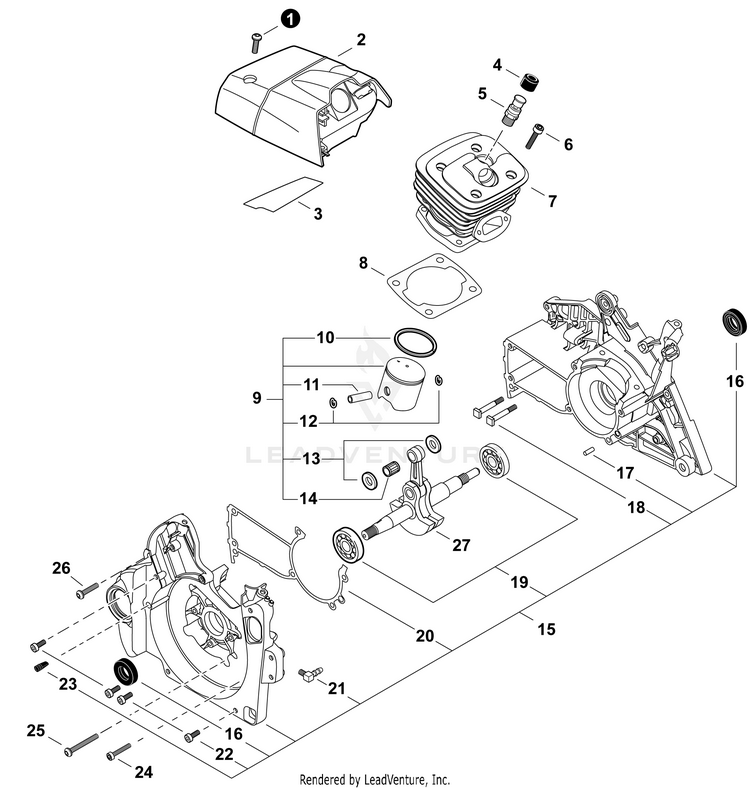

ENGINE / ENGINE COVER S/N C69115002106 - C69115999999

...
...
1
BOLT, TORX 5x16 ECH-V805000000
...
2
COVER, ENGINE ECH-A160001181
...
3
SHIELD, HEAT 75x32x0.15 ECH-V341000140
...
4
COVER, DUST ECH-V141000090
...
5
VALVE ASSY, DECOMPRESSION ECH-A014000110
...
6
BOLT, TORX 5x25 ECH-V805000220
...
7
CYLINDER ECH-A130002041
...
8
GASKET, CYLINDER ECH-V100000270
...
9
PISTON KIT Includes Items 10-14 ECH-P021038790
...
10
RING, PISTON ECH-A101000210
...
11
PIN, PISTON ECH-V609000010
...
12
RING, SNAP 11 ECH-V580000030
...
13
WASHER, THRUST 11 ECH-V308000040
...
14
BEARING, NEEDLE 11 ECH-V556000000
...
15
CRANKCASE SET Includes Items 16-23 ECH-P200001290
...
16
SEAL, OIL 15 ECH-V508000100
...
17
PIN, LOCATING 5x10 ECH-90033050100
...
18
STUD, GUIDE BAR 8 ECH-43301119831
...
19
BEARING, BALL 6202 ECH-9403646202
...
20
GASKET, CRANKCASE ECH-V102000060
...
21
CONNECTOR, PIPE ECH-43723914730
...
22
BOLT, TORX 5x20 ECH-V805000160
...
23
VENT ASSY ECH-43611413930
...
24
BOLT, TORX 5x25 ECH-V805000170
...
25
BOLT, TORX 5x35 ECH-V805000020
...
26
BOLT, TORX 5x20 ECH-V805000010
...
27
CRANKSHAFT ASSY ECH-A011001270
...
...
...
...
...
