Echo 591 S/N: C69115001001 - C69115999999 Chainsaw

Model: 591 S/N: C69115001001 - C69115999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

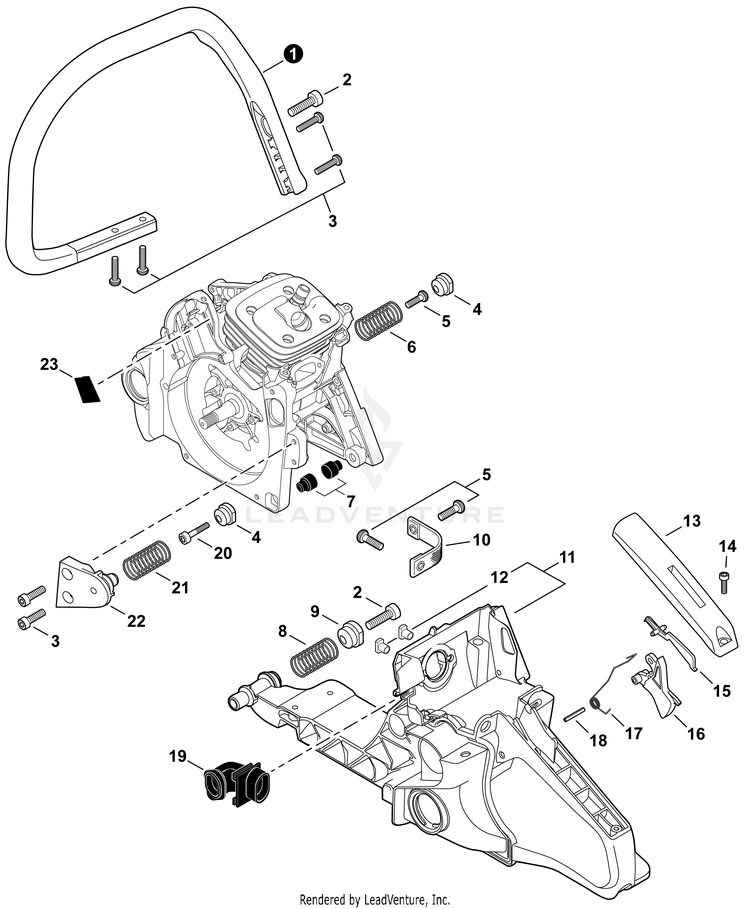

HANDLES

...
...
1
HANDLE, FRONT ECH-C400000551
...
2
BOLT, TORX 6x20 ECH-V806000000
...
3
BOLT, TORX 5x20 ECH-V805000010
...
4
HOLDER, SPRING 14.4 ECH-V456000080
...
5
BOLT, TORX 5x16 ECH-V805000000
...
6
SPRING, COMPRESSION 17x38.4x2.6 ECH-V450000730
...
7
CUSHION ECH-V420003800
...
8
SPRING, COMPRESSION 20x40x3.3 ECH-V450000771
...
9
HOLDER, SPRING 17 ECH-V456000101
...
10
STRAP, SAFETY ECH-C617000362
...
11
HANDLE, REAR Includes Item 12 ECH-C410001262
...
12
NUT M5 ECH-V263000450
...
13
COVER, HANDLE ECH-C411000001
...
14
BOLT, TORX 4x12 ECH-V804000000
...
15
LEVER, THROTTLE LOCKOUT ECH-17809019830
...
16
TRIGGER, THROTTLE ECH-C450000360
...
17
SPRING, TORSION ECH-V452000260
...
18
PIN, SPRING 4x25 SUS ECH-90034540025
...
19
PIPE, AIR INTAKE ECH-A239000060
...
20
BOLT, TORX 5x25 ECH-V805000230
...
21
SPRING, COMPRESSION 17x36.7x2.6 ECH-V450000760
...
22
HOLDER, SPRING ECH-V456000110
...
23
CUSHION ECH-V376001780
...
...
...
...
...
