Echo 591 S/N: C36112001001 - C36112999999 Chainsaw

Model: 591 S/N: C36112001001 - C36112999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

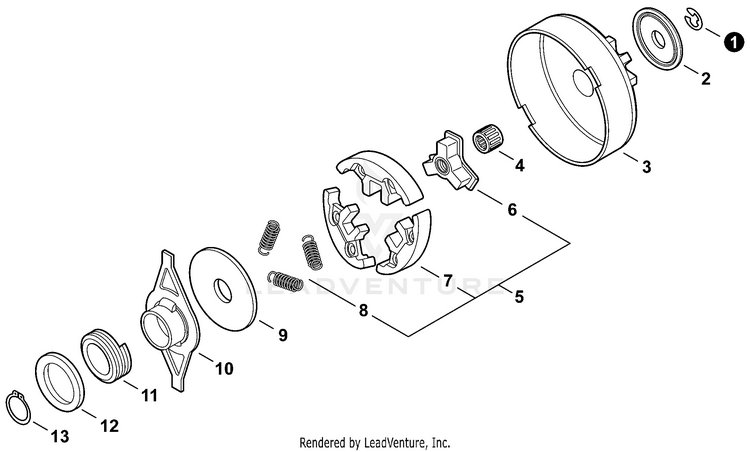

CLUTCH

...
...
1
E-RING 8.1 ECH-V583000440
...
2
WASHER 10 ECH-V307000510
...
3
DRUM, CLUTCH ECH-A556001580
...
4
BEARING, NEEDLE 10 ECH-V555000010
...
5
CLUTCH ASSY Includes ITEMS 6-8 ECH-A056000221
...
6
HUB, CLUTCH ECH-A552000110
...
7
CLUTCH SHOE SET (3PCS) ECH-P021007051
...
8
SPRING, TENSION ECH-V451000500
...
9
PLATE, CLUTCH ECH-A551000110
...
10
COLLAR 15x19x73 ECH-V358000090
...
11
GEAR, WORM ECH-V652000050
...
12
WASHER 15.5x22.5x0.5 ECH-V311000090
...
13
RING, RETAINING 15 ECH-90070100015
...
...
...
...
...
