Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

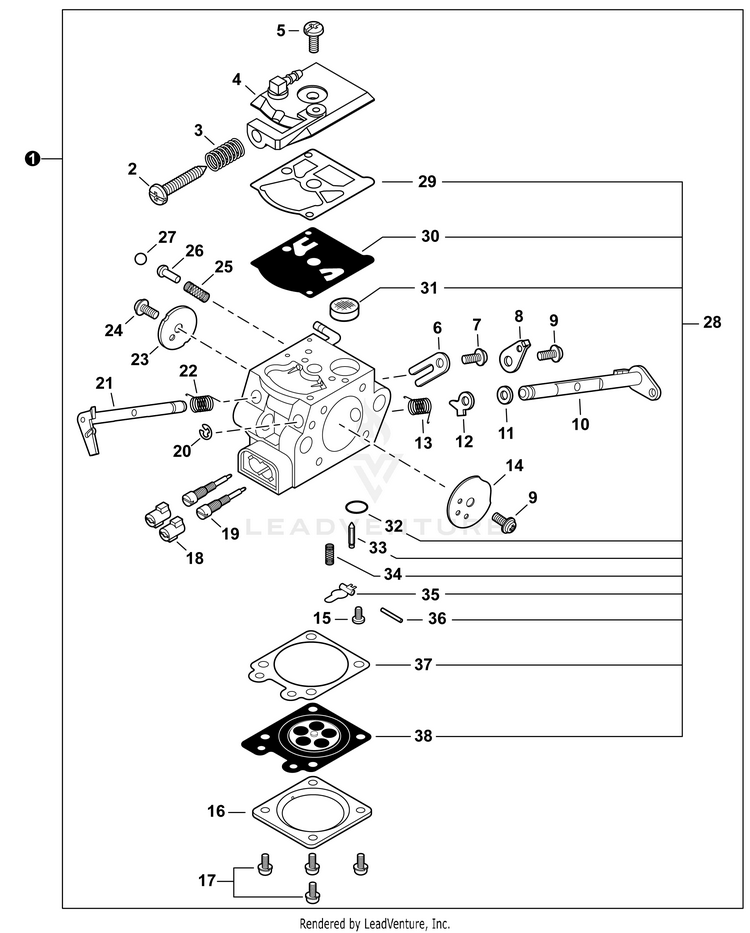

CARBURETOR

...
...
1
CARBURETOR - WT-1141 Includes Items 2-38 ECH-A021004570
...
2
SCREW, IDLE ADJUST ECH-P003003650
...
3
SPRING, IDLE ADJUST ECH-12313304260
...
4
COVER, PUMP ECH-P003005830
...
5
SCREW ECH-12311003930
...
6
CLIP, THROTTLE SHAFT ECH-12312703930
...
7
SCREW ECH-P003005120
...
8
LEVER, THROTTLE ECH-P003003180
...
9
SCREW ECH-12311438830
...
10
SHAFT ASSY, CHOKE ECH-P003003190
...
11
WASHER ECH-12314926030
...
12
LEVER, FAST IDLE ECH-P003001510
...
13
SPRING ECH-P003002260
...
14
VALVE, CHOKE ECH-P003005590
...
15
SCREW ECH-P003005400
...
16
COVER, METERING DIAPHRAGM ECH-12314203930
...
17
SCREW ECH-12313002960
...
18
CAP, LIMITER ECH-P003000010
...
19
NEEDLE, MIXTURE ECH-12311802261
...
20
E-RING ECH-12312715030
...
21
SHAFT ASSY, THROTTLE ECH-P003005840
...
22
SPRING, THROTTLE RETURN ECH-12311337530
...
23
VALVE, THROTTLE ECH-12311610530
...
24
SCREW ECH-P003002380
...
25
SPRING, START VALVE ECH-12318609660
...
26
PISTON ASSY ECH-P003005730
...
27
BALL ECH-12313609660
...
28
REPAIR KIT, CARBURETOR Includes Items 29-38 ECH-P033000020
...
29
GASKET, FUEL PUMP ECH---
...
30
DIAPHRAGM, PUMP ECH---
...
31
SCREEN, FUEL INLET ECH---
...
32
PLUG, WELCH ECH---
...
33
VALVE, INLET NEEDLE ECH---
...
34
SPRING, METERING LEVER ECH---
...
35
LEVER, METERING ECH---
...
36
PIN, METERING LEVER ECH---
...
37
GASKET, METERING DIAPHRAGM ECH---
...
38
DIAPHRAGM, METERING ECH---
...
...
...
...
...
