Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

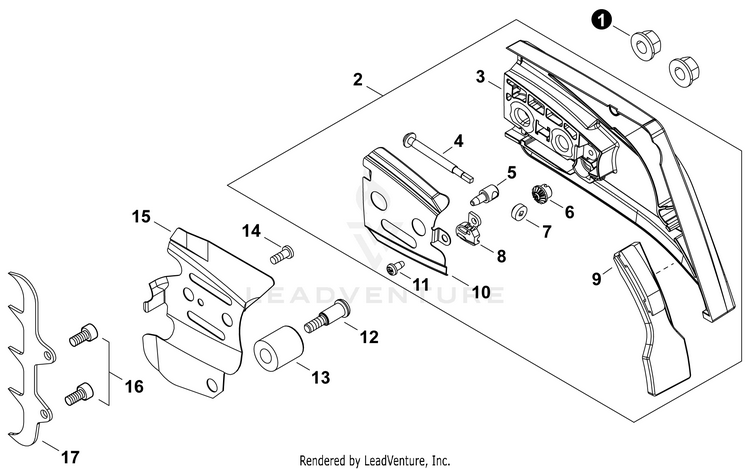

CLUTCH COVER

...
...
1
NUT, FLANGE M8x1.25 ECH-V265000200
...
2
SPROCKET GUARD ASSY Includes Items 3-11 ECH-P021049930
...
3
GUARD, SPROCKET ECH-C300001060
...
4
SCREW, CHAIN TENSION ECH-V203000021
...
5
TENSIONER, CHAIN ECH-C309000190
...
6
GEAR, BEVEL ECH-V651001060
...
7
GEAR, BEVEL ECH-V651000011
...
8
COLLAR 8 ECH-V355000840
...
9
PROTECTOR ECH-C302000030
...
10
PLATE, GUIDE - OUTER ECH-C305000470
...
11
SCREW 4x8 ECH-90025304008
...
12
BOLT 5 ECH-V203002410
...
13
CATCHER, CHAIN ECH-C310000180
...
14
SCREW M4x7 ECH-V252000470
...
15
PLATE, GUIDE - INNER ECH-C305000480
...
16
BOLT 5x12 ECH-V203002010
...
17
SPIKE, BUMPER ECH-C304000310
...
...
...
...
...
