Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

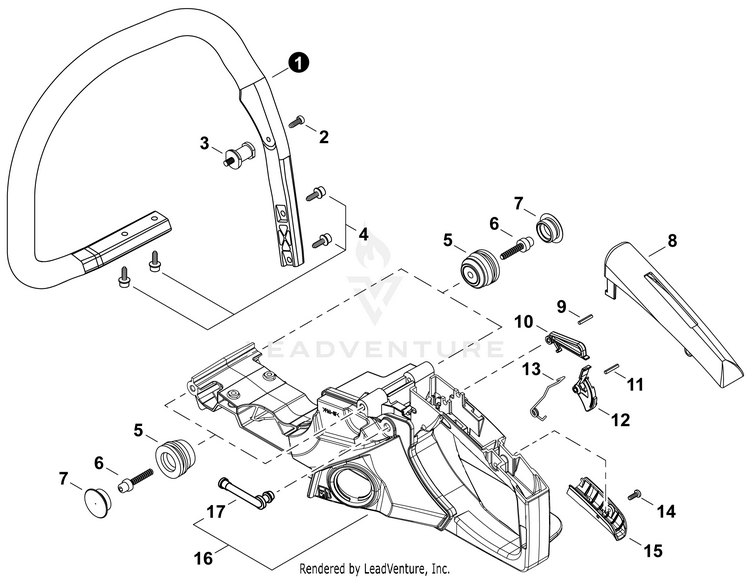

HANDLES

...
...
1
HANDLE, FRONT ECH-C400001470
...
2
BOLT M4x14 ECH-V202000350
...
3
CUSHION 5 ECH-V401000330
...
4
BOLT 5x20 ECH-V203002190
...
5
CUSHION ECH-V401000610
...
6
BOLT 5 ECH-V203001950
...
7
CAP, CUSHION ECH-V421000070
...
8
COVER, HANDLE ECH-C411000130
...
9
PIN, SPRING 4x22 MM ECH-9304240220
...
10
LOCKOUT, THROTTLE ECH-C460000311
...
11
PIN, SPRING 4x25 MM ECH-9306040250
...
12
TRIGGER, THROTTLE ECH-C450000642
...
13
SPRING, THROTTLE RETURN ECH-V452000850
...
14
SCREW 4x25 ECH-90025304025
...
15
GRIP, LOWER ECH-C403000830
...
16
HANDLE ASSY, REAR Includes Item 17 ECH-C041000715
...
17
PIPE, FUEL VENT 2x5x43 ECH-V470001531
...
...
...
...
...
