Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

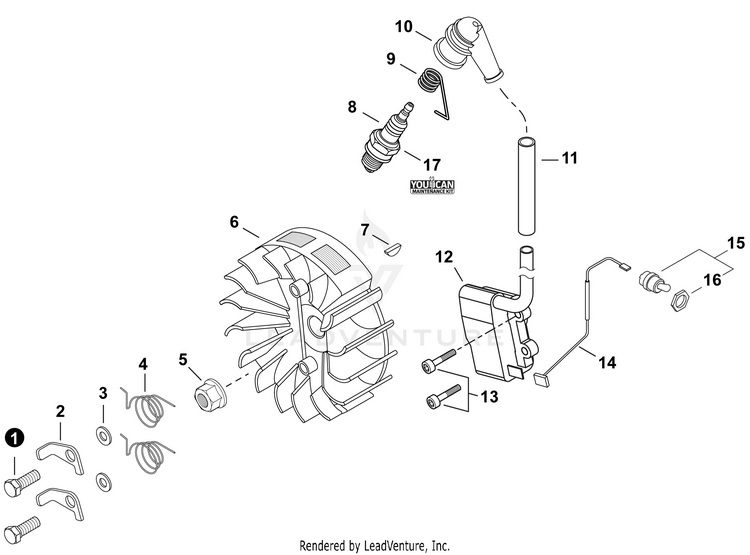

IGNITION

...
...
1
BOLT 6 ECH-V204000620
...
2
PAWL ECH-A514000220
...
3
WASHER 6 ECH-V304000270
...
4
SPRING, TORSION ECH-V452000870
...
5
NUT M8x1.0 ECH-V265000220
...
6
FLYWHEEL ECH-A409001151
...
7
KEY, WOODRUFF 3x10 ECH-9311503010
...
8
SPARK PLUG - BPMR8Y ECH-A425000000
...
9
TERMINAL, SPARK PLUG ECH-A426000010
...
10
CAP, SPARK PLUG ECH-A427000013
...
11
TUBE, INSULATOR ECH-V475005180
...
12
COIL, IGNITION ECH-A411001210
...
13
BOLT, ADHESIVE M4x20 ECH-V202000540
...
14
LEAD - IGNITION ECH-V485002030
...
15
SWITCH ASSY, ON-OFF Includes item 16 ECH-A440002680
...
16
NUT 10 ECH-V266000090
...
17
TUNE-UP KIT - YOUCAN™ ECH-84021Y
...
...
...
...
...
