Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

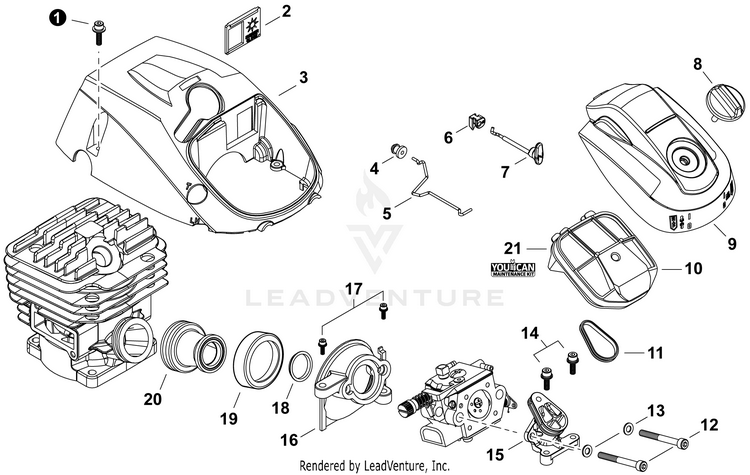

INTAKE, AIR FILTER, ENGINE COVER

...
...
1
BOLT M4x14 ECH-V202000690
...
2
PLATE, SHUTTER ECH-A219000040
...
3
COVER, ENGINE ECH-A160003070
...
4
GROMMET ECH-V133000040
...
5
ROD, THROTTLE ECH-C454000280
...
6
GROMMET, CHOKE ECH-V130000131
...
7
ROD, CHOKE ECH-A240000111
...
8
THUMBSCREW ECH-A235000490
...
9
COVER, AIR FILTER ECH-A232001522
...
10
FILTER ASSY, AIR, FLOCKED ECH-A226001090
...
11
GASKET ECH-V581000280
...
12
BOLT M5x48 ECH-9110005048
...
13
WASHER, FLAT 5.5x10x0.8 ECH-90060000005
...
14
BOLT M4x16 ECH-V202000200
...
15
ADAPTOR, AIR FILTER ECH-A204000220
...
16
INSULATOR, INTAKE ECH-A200001050
...
17
BOLT M4x16 ECH-V202000200
...
18
COLLAR 16 ECH-V359000200
...
19
HOLDER, BELLOWS ECH-A206000030
...
20
BELLOWS, INTAKE ECH-A202000150
...
21
TUNE-UP KIT - YOUCAN™ ECH-84021Y
...
...
...
...
...
