Echo 492 S/N: C83615001001 - C83615999999 Chainsaw

Model: 492 S/N: C83615001001 - C83615999999

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

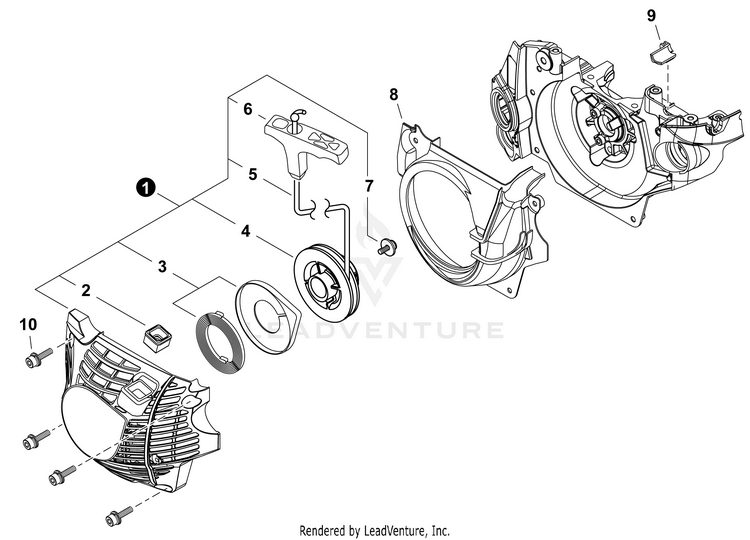

RECOIL STARTER

...
...
1
STARTER ASSY, RECOIL Includes Items 2-7 ECH-A051002990
...
2
GUIDE, ROPE ECH-A510000130
...
3
RECOIL SPRING W/CASE ECH-A504000190
...
4
REEL, ROPE ECH-P022039780
...
5
ROPE, STARTER 4.0x880 ECH-17722601110
...
6
GRIP, STARTER ECH-A511000230
...
7
SCREW 5 ECH-V253000680
...
8
COVER, FAN ECH-A172001870
...
9
GROMMET, NEEDLE ECH-V131000190
...
10
BOLT M4x16 ECH-V202000200
...
...
...
...
...
