EarthQuake RC4432 (2019) Mower Rough Cut 44 Inch Briggs Series #035835

Model: RC4432_2019

Save
 Part Not Listed?Part Not Listed?
product name

EarthQuake RC4432_2019

...
...
1
Bolt M14X2.0X55 Mm Hhcs Gr10.9 Blk Ox F-T ARD-33957
...
2
Bolt M22X2.5X70 Mm Hhcs Gr8.8 Zn F-T ARD-21669
...
3
Brace Bottom Cutting Blade Mount ARD-21665
...
4
Bushing Blade 338 X 22.5 X 13 Mm Deep ARD-21667
...
5
Blade 380X75X41 Mm ARD-21666
...
6
Weldment Blade Mount ARD-21664
...
7
Washer M22X39X3.0 Mm Gr8.8 Zn ARD-21674
...
8
Nut M22X2.5X22 Mm Hnylk Cl8 Zn ARD-21671
...
10
Washer M14X28X2.8 Mm Gr8.8 Zn ARD-21673

EarthQuake RC4432_2019

...
...
1
Bolt M12X1.75X30 Mm Hhcs Gr8.8 Zn F-T ARD-21613
...
2
Washer M12X24X2.5 Mm Gr8.8 Zn ARD-21632
...
3
Chain Assembly 6 Linkages ARD-21354
...
4
Weldment Brush Guard Front Red ARD-29254
...
5
Weldment Brush Guard Rear Red ARD-29148
...
6
Nut M12X1.75X12 Mm H Nylk Gr8.8 Zn ARD-18274
...
7
Pin Cotter 3.2 Od X 30 Mm Long ARD-21304
...
8
Washer M8X16X1.6 Mm 140Hv Zn ARD-400024
...
9
Rod 8 Mm Od X 580 Long 2X 3.50 Dia Holes ARD-21374
...
10
Deflector Engagement Lever Black ARD-29256

EarthQuake RC4432_2019

...
...
1
Bolt M8X1.25X25 Mm Hhcs Gr8.8 Zn F-T ARD-13826
...
3
Bolt M10X1.5X50 Mm Hhcs Gr8.8 Zn P-T ARD-20145
...
4
Bolt M8X1.25X35 Mm Hhcs Gr8.8 Zn F-T ARD-20816
...
5
Pin Cotter 3.2 Od X 30 Mm Long ARD-21304
...
8
Bolt M10X1.5X55 Mm Hhcs Gr8.8 Zn P-T ARD-21600
...
9
Washer M12X24X2.5 Mm Gr8.8 Zn ARD-21632
...
10
Washer M8X13.95X1.6 Mm Sprlk Gr8.8 Zn ARD-21640

EarthQuake RC4432_2019

...
...
2
Assembly Gas Tank Box ARD-23424
...
3
Custom Bracket For Gas Tank ARD-23426
...
4
Washer M8X16X1.9 Mm Sprlk Blk Ox ARD-W1200114
...
5
Bolt M8X1.25X16 Mm Hhcs Gr8.8 Zn F-T ARD-17984
...
6
Washer M8X24X2 Mm 140Hv Zn ARD-3245

EarthQuake RC4432_2019

...
...
2
Bolt M8X1.25X35 Mm Hhcs Gr8.8 Zn F-T ARD-20816
...
4
Bolt M10X1.5X30 Mm Hhcs Gr8.8 Zn F-T ARD-21247
...
5
Bolt M10X1.5X55 Mm Hhcs Gr8.8 Zn P-T ARD-21600
...
7
Key 45 X 8 X 10 Mm X 5 Radius ARD-21692
...
8
Assembly Drive Brake ARD-21704
...
9
Cotter Pin 4 X 40 Mm Long Zn ARD-21715
...
11
Bolt M10X1.5X50 Mm Hh Gr8.8 Zn F-T ARD-22937
...
12
Arm Brake Engage ARD-23410
...
13
Assembly Cam ARD-23411
...
15
Brake Pin ARD-24115
...
16
Washer M10X20X2.0 Mm Gr8.8 Zn ARD-2431
...
18
Wheel Guard Left Red ARD-29221
...
19
Wheel Guard Right Red ARD-29222
...
21
Spring Ext 37X16X2.2 Mm 11Coil 7.94 Nmm ARD-34286
...
23
Belt Guide 225X65X37 Mm Sheet Steel ARD-34554
...
26
Nut M8X1.25X9.5 Mm Hnylk Cl8 Zn ARD-400023
...
27
Washer M8X16X1.6 Mm 140Hv Zn ARD-400024
...
31
Nut M10X1.5X8.4 Mm Hnylk Gr8.8 Zn ARD-W1265V0903

EarthQuake RC4432_2019

...
...
1
Bolt M10X1.5X50 Mm Hhcs Gr8.8 Zn P-T ARD-20145
...
2
Washer M10X18.1X1.8 Mm Sprlk Gr8.8 Zn ARD-21656
...
3
Bolt M10X1.5X45 Mm Hh Cs Gr8.8 Zn F-T ARD-24176
...
4
Washer M10X20X2.0 Mm Gr8.8 Zn ARD-2431
...
5
Assembly Hatch Panel With Decals ARD-29208

EarthQuake RC4432_2019

...
...
1
Nut M6X1.0X9.1 Mm Hfnylk Cl8 Zn ARD-13599
...
2
Canister Manual 82 Id X 310 Mm Inner Lg ARD-21655
...
3
Bolt M6X1.0X20 Mm Shfh Gr10.9 Zn ARD-25058

EarthQuake RC4432_2019

...
...
1
Cap Wheel Hub Dust 2 In ARD-21611
...
2
Bolt M12X1.75X30 Mm Hhcs Gr8.8 Zn F-T ARD-21613
...
3
Washer M12 Spring Lock Zinc ARD-21615
...
4
Washer M12X37X3 Mm Gr8.8 Zn ARD-21614
...
5

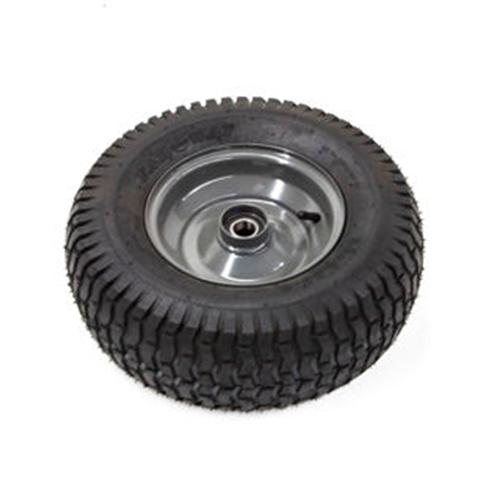

Assembly Wheel And Tire Grey 16X6.5-8 ARD-29262
...
6
Bolt M8 X 1.25 X 20 Hhfcs Gr8.8 Zn ARD-18106
...
7
Washer M8X13.95X1.6 Mm Sprlk Gr8.8 Zn ARD-21640
...
8
Washer M8X16X1.6 Mm 140Hv Zn ARD-400024
...
9
Washer 9 X 50 X 6 Mm Gr8.8 Zn ARD-21641
...
10
Weldment Wheel Hub Left ARD-21623
...
11
Weldment Wheel Hub Right ARD-21602
...
12
Nut M8X1.25X9.5 Mm Hnylk Cl8 Zn ARD-400023
...
13
Assembly Wheel Latch Pin Green 11.5 Mm Od ARD-29313
...
14
Spacer Wheel Hub 60 Od X 27 Mm Deep ARD-21616
...
15
Bolt M8X1.25X30 Mm Hhcs Gr8.8 Zn F-T ARD-21618
...
16
Weldment Height Adjust Battery Side ARD-21635
...
18
Bolt M8X1.25X25 Mm Hhcs Gr8.8 Zn F-T ARD-13826
...
19
Washer M8X24X2 Mm 140Hv Zn ARD-3245
...
20
Bolt M10X1.5X55 Mm Hhcs Gr8.8 Zn P-T ARD-21600
...
21
Washer M10X20X2.0 Mm Gr8.8 Zn ARD-2431
...
22
Nut M10X1.5X8.4 Mm Hnylk Gr8.8 Zn ARD-W1265V0903

EarthQuake RC4432_2019

...
...
3
Nut M10X1.5X13.5 Mm Hfnlyk Cl8 Zn ARD-16903
...
8
Battery Lead Acid Gh190 190Cca ARD-21574
...
9
Bolt M6X1.0X20 Mm Shfh Gr10.9 Zn ARD-25058
...
10
Assembly Strt Solenoid 12V 2 Post 1 Male Tab ARD-4660

EarthQuake RC4432_2019

...
...
1
Nut M6X1.0X9.1 Mm Hfnylk Cl8 Zn ARD-13599
...
2
Canister Manual 82 Id X 310 Mm Inner Lg ARD-21655
...
3
Bolt M6X1.0X20 Mm Shfh Gr10.9 Zn ARD-25058
...
...
...
...
...
