product name

Dyson DC50 Animal and Multi-floor Uprights

Model: DC50

Save
 Part Not Listed?Part Not Listed?
product name

Dyson DC50

...
...
1
Switch Button Service Assembly DYS-964710-01
...
2
On/Off Switch Assembly DYS-965145-01
...
3
Brushbar On/Off Switch DYS-965146-01
...
4
Spring DYS-919901-81
...
5
Button Housing DYS-965084-01
...
6
Internal Powercord Assembly DYS-965098-02
...
7
Screw M3.5x16-T15 DYS-910703-01
...
8
Spring DYS-965089-01
...
9
Handle Retract Catch DYS-965094-01
...
10
Screw M3.5x16-T15 DYS-910703-02
...
11
Cable Protector DYS-965075-01
...
12
Mini Cable Clip DYS-923255-01
...
13
Power Cord Assembly DYS-965092-02
...
14
Upper Chassis Assembly DYS-965104-01
...
15
Lower Cable Winder DYS-965079-01
...
16
Tool Holder Service Assembly DYS-964709-01
...
17
Screw DYS-910703-01

Dyson DC50

...
...
1
Screw with Captive Washer DYS-965087-01
...
2
Screw DYS-910702-05
...
3
Motor Bucket Cover Overmould DYS-965100-01
...
4
Motor Assembly DYS-965099-02
...
5
Motor Bearing Mount DYS-965085-02
...
6
Screw DYS-910702-05
...
7
Yoke Service Assembly DYS-964713-01
...
8
Screw M3.0x10-T10 DYS-910702-28
...
9
Internal Hose Service Assembly DYS-964708-01
...
10
Upright Lock DYS-965148-01
...
11
Upright Lock Cover DYS-965105-01
...
12
Screw DYS-910702-29
...
13
Interface Plate DYS-965147-01
...
14
Screw DYS-910703-02
...
15
Post Filter Assembly DYS-965080-01
...
16
Ball Shell Filterside Service Assembly DYS-964703-01
...
17
Glamour Cap DYS-921348-01
...
18
Motorbucket Wiring Assembly DYS-965101-02
...
19
Screw M3.5x16-T15 DYS-910703-24
...
20

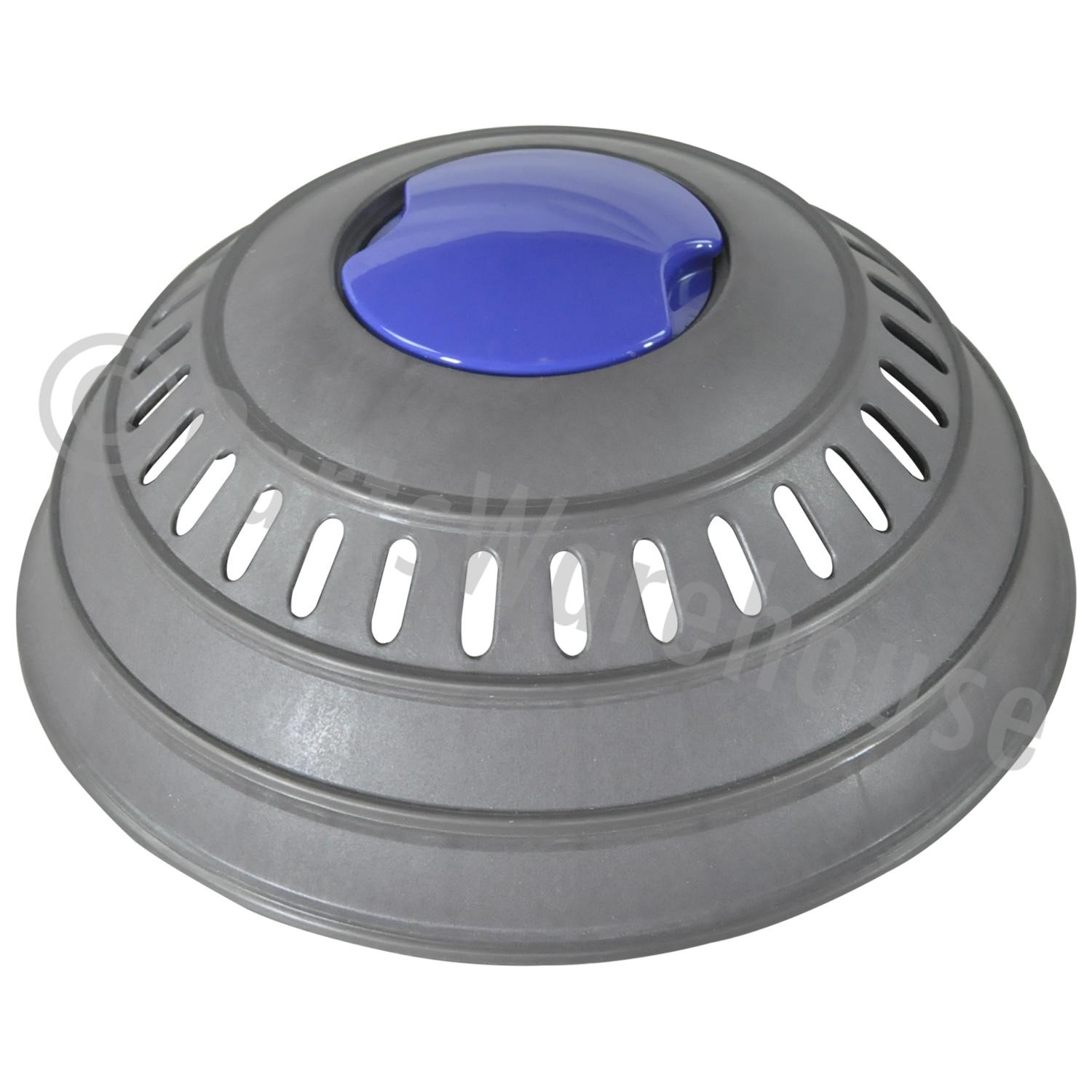

Ball Shell Ductside DYS-925769-01
...
21
Screw M3.5x16-T15 DYS-910703-01
...
22
Yoke Upper DYS-965106-01
...
23
Screw M3.5x12-T15 DYS-910703-03
...
24
PCB Cover DYS-966532-01
...
25
PCB Assembly DYS-965086-02
...
26
Screw M3.5x12-T15 DYS-965150-01
...
27
Duct Cyclone Seal DYS-965088-01
...
28
Screw M3.5x16-T15 DYS-910703-01
...
29
Screw with Captive Washer DYS-965087-01
...
30
Ductside & Filterside Arm Service Assembly DYS-964712-01
...
31
Stand Assembly DYS-965103-01
...
32
Stabiliser Wheel DYS-965102-01
...
33
COV Hose Assembly DYS-965093-01
...
34
Spring DYS-965090-01

Dyson DC50

...
...
1
Cleanerhead Assembly DYS-965071-02
...
2
Brush Bar Service Assembly DYS-964705-01
...
3
Soleplate Service Assembly DYS-964707-01
...
4
Soleplate Axle DYS-965930-01
...
5
Brush Bar Motor Housing Service Assembly DYS-964714-01
...
6
Screw DYS-914501-01
...
7
Soleplate Axle DYS-911434-01
...
8
Soleplate Wheel DYS-914892-01
...
9
Slim Roller DYS-921816-01

Dyson DC50

...
...
1a
Satin Yellow/Iron Cyclone Assembly (Multi-Floor) DYS-965073-01
...
1b
Satin Rich Royal Purple/Iron Cyclone Assembly (Animal / Ball Compact) DYS-965073-02
...
1c
Satin Blue Cyclone Assembly (Allergy / Multi-Floor) DYS-965073-04
...
1d
Satin Silver Cyclone Assembly (Animal) DYS-965073-10
...
1e
Satin Fuchsia Cyclone Assembly (DC50 Exclusive USA) DYS-965073-12
...
2
Bin Assembly DYS-965070-01
...
3
Cyclone Handle Assembly DYS-965074-01
...
4
Pre-Filter Assembly DYS-965081-01

Dyson DC50

...
...
1
Handle Cap DYS-965096-01
...
2
Handle Cover DYS-965097-01
...
3
Handle Assembly DYS-965076-01
...
4
Combination Tool Assembly DYS-965072-01
...
5
Stair Tool Assembly DYS-965082-01
...
6
Wand Assembly DYS-965083-01
...
7
Hose Assembly DYS-965077-02

Dyson DC50

...
...
1
Mattress Tool DYS-908887-02
...
2
Stubborn Dirt/Stiff Bristle Brush Assy DYS-918508-01
...
3
Tangle-free Turbine Tool DYS-925068-02
...
4
Paddle Service Assy DYS-963556-01
...
5
Soleplate Service Assy DYS-963826-01
...
6
Flat Out Head Assy DYS-914617-02
...
7
Dyzolv DYS-903888-06
...
8
Dyson Groom DYS-921001-01
...
9
Soft Dusting Brush DYS-908896-02
...
10
Up Top Tool/Multi Angle Brush DYS-917646-01
...
11
Flexi Crevice Tool Assy DYS-917633-01
...
12a
Iron/Clear Car Cleaning Kit DYS-908909-08
...
12b
Carpet Cleaning Kit DYS-904975-03
...
13
Articulating Hard Floor Tool DYS-920019-01
...
14
Zorb Pouch DYS-903914-07
...
...
...
...
...
