Duerr 241-521-003 (1991) Lawn Tractor

Model: 241-521-003 (1991)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

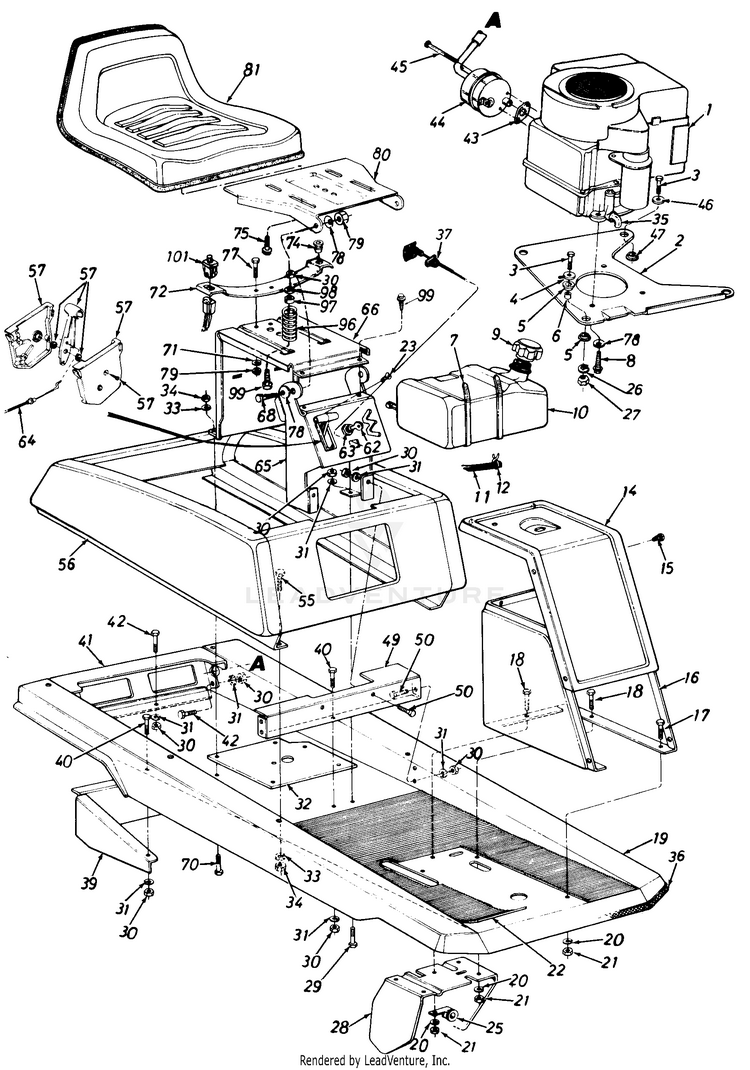

Parts

...
...
1
Engine MTD-NA
...
2
ENGINE PLATE MTG MTD-15572A-0637
...
3
Hex Bolt 5/16-24 x 1.25" Lg. MTD-710-0672
...
4
Fl-Wash. .330" I.D. x 1.125" O.D. MTD-736-0231
...
5
Engine Mounting Grommet MTD-722-0153
...
6
SPACER MTD-950-0539
...
7
Cable Tie MTD-726-0230
...
8
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg. MTD-710-0502A
...
9
GAUGE-GAS (Used w/Black Fuel Tank) MTD-723-0155
...
xx
TANK CAP (Used w/White Fuel Tank) MTD-751-0603B
...
10
FUEL TANK 1.6 G MTD-751-0368
...
xx
FUEL TANK 1.6 G MTD-751-0368A
...
11
FUEL HOSE 1/4-36" MTD-751-22813-36
...
12
Hose Clamp-1/2" O.D. Tube MTD-726-0205
...
14
Refer to page 32 MTD-NA
...
15
Refer to page 32 MTD-NA
...
16
Refer to page 32 MTD-NA
...
17
Refer to page 32 MTD-NA
...
18
Refer to page 3 MTD-NA
...
19
Refer to page 32 MTD-NA
...
20
Refer to page 32 MTD-NA
...
21
Refer to page 32 MTD-NA
...
22
FLOOR MAT MTD-735-0220A
...
23
Truss Mach. AB-Tap Scr. #10 x .50" Lg. MTD-710-0779A
...
25
CLAMP MTD-726-0175
...
26
Lock Wash. 5/16" I.D. MTD-936-0119
...
27
Hex Nut 5/16-24 Thd. MTD-912-3057
...
28
PEDAL ASSEMBLY MTD-17677
...
29
Hex Bolt 5/16-18 x .75" Lg* MTD-710-0118
...
30
HEX NUT 5/16-18 MTD-712-3010
...
31
Lock Wash. 5/16" I.D. MTD-936-0119
...
32
VARIABLE SPEED MOUNTING PLATE MTD-783-0005
...
33
L-Wash. 1/4" I.D. MTD-936-0329
...
34
HEX NUT 1/4-20 MTD-912-0287
...
35
90 DEGREE ELBOW MTD-737-0125
...
36
Trim Strip 18" Lg. MTD-731-0511-18
...
37
Choke Control MTD-746-0614A
...
39
SUPPORT ASSY-TRANS MTD-15552
...
40
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
41
PANEL-FRAM MTD-15571
...
42
SCREW 5/16-18 x .50 GR5 MTD-710-3039
...
43
Gasket-Exhaust (Adapter Mounting) (8 H.P.) MTD-BS-692237
...
xx
Gasket-Exhaust (10, 11 & 12 H.P.) MTD-BS-692236
...
44
MUFFLER (8 H.P.) MTD-751-0412
...
xx
ARRESTOR-S (Optional Part) MTD-751-0425
...
xx
MUFFLER AS (10, 11 & 12 H.P.) MTD-751-0413
...
xx
ARRESTOR-SPARK-1-1/4 (Optional Part) MTD-951-0544
...
45
SHOULDER BOLT (8 H.P.) MTD-738-0635
...
xx
SHOULDER SCREW (10, 11 & 12 H.P.) MTD-938-0636
...
46
Fl-Wash. .330" I.D. x 1.25" O.D. MTD-736-0343
...
47
FLANGE WASH .32" I.D. x .75" O.D. MTD-736-0392
...
49
BRACKET-SE MTD-15604
...
50
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
55
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
56
Refer to Page 32 MTD-NA
...
57
Throttle Control Box Ass'y. MTD-831-0823A
...
62
Key MTD-925-0201
...
63
Ignition Switch MTD-925-0267B
...
64
35" THROTTLE CABLE MTD-946-0503
...
65
BRACKET-SEAT MTD-16483A
...
66
BRACKET MTD-15606A
...
68
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
xx
HEX NUT 5/16-18 MTD-712-3010
...
70
Screw, Hex MTD-710-0788
...
71
Lock Wash. 5/16" I.D. MTD-936-0119
...
72
SPRING-SEAT SWITCH MTD-732-0632
...
74
GROMMET MTD-731-0555A
...
75
Hex Wash. Hd. Tap Scr. 3/8-16 x 3/4" Lg. MTD-710-0623
...
77
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
78
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
79
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
80
SEAT PIVOT BRACKET MTD-783-0039A
...
81
LOW BACK SEAT BLACK W/SWITCH MTD-957-0378
...
96
COMPRESSION SPRING MTD-732-0633
...
97
RUBBER BUSHING .318IDX.930OD MTD-722-0160
...
98
Fl-Wash. .344" I.D. x .875" MTD-736-0159
...
99
Hex Bolt 5/16-18 x 1" Lg. (Grade 5) MTD-710-0376
...
101
SWITCH-SEA MTD-725-1441
...
...
...
...
...
