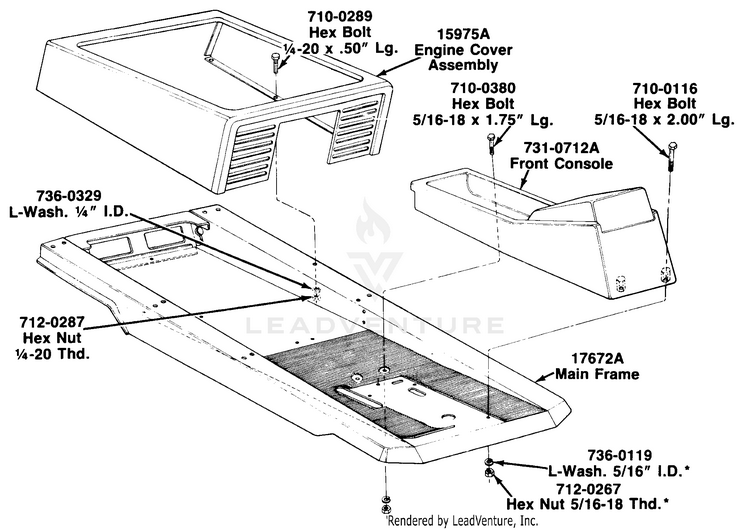

Duerr 241-521-003 (1991) Lawn Tractor

Model: 241-521-003 (1991)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
712-0287
HEX NUT 1/4-20 MTD-912-0287
...
736-0329
L-Wash. 1/4" I.D. MTD-936-0329
...
710-0289
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
15975A
COVER ASSEMBLY MTD-15975A
...
710-0380
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180
...
712-0267
HEX NUT 5/16-18 MTD-712-3010
...
736-0119
Lock Wash. 5/16" I.D. MTD-936-0119
...
710-0116
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
17672A
Main Frame MTD-17672A
...
731-0712A
CONSOLE-FR MTD-731-0712A
...
...
...
...
...
