Duerr 241-521-003 (1991) Lawn Tractor

Model: 241-521-003 (1991)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

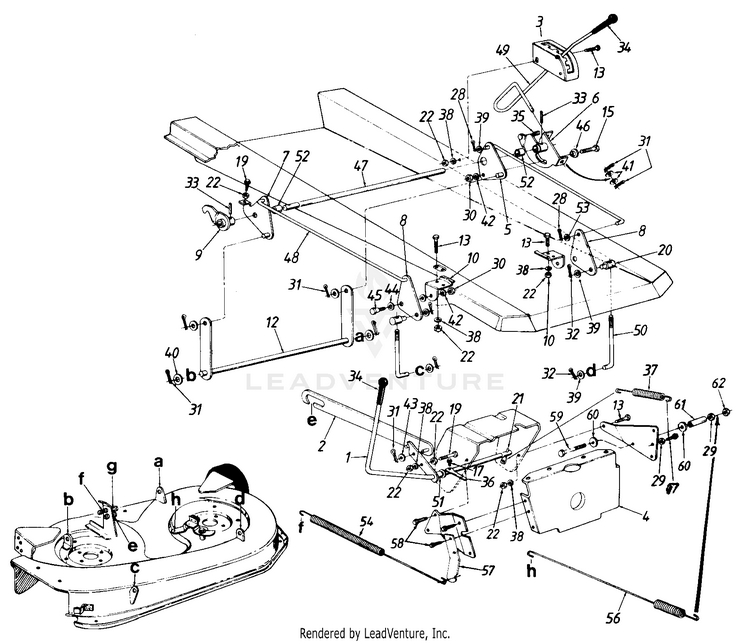

Parts, With 32" Or 38" Decks

...
...
1
LEVER ASSEMBLY-BLADE E MTD-15568A
...
2
DECK DRIVE CONTROL BRACKET MTD-15644A
...
3
BRACKET-DECK INDEX MTD-16397
...
4
PIVOT BAR BRACKET MTD-15613A
...
5
BRACKET-DE MTD-17108
...
6
Deck Lift Handle Retainer Ass'y. MTD-17109
...
7
Deck Lift Brkt. Ass'y. MTD-17111
...
8
Deck Lift Bracket MTD-17112
...
9
DECK LIFT BRACKET MTD-17114A
...
10
BRACKET-PI MTD-17115
...
12
SHAFT ASSEMBLY MTD-17123
...
13
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
15
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
17
Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg. MTD-710-0778
...
19
Hex Wash.-Tap Scr. 5/16-18 x 1.25" Lg. MTD-710-0817
...
20
Ferrule MTD-911-0198
...
21
CLEVIS PIN (Special) MTD-711-0753
...
22
HEX NUT 5/16-18 MTD-712-3010
...
28
Cotter Pin 3/32" Dia. MTD-714-0507
...
29
HEX NUT 1/4-20 MTD-912-0287
...
30
Hex Nut 3/8-16 Thd. MTD-712-0798
...
31
Internal Cot. Pin 1/2" Dia. MTD-714-0101
...
32
Int. Cot. Pins 3/8" Dia. MTD-714-0145
...
33
Spring Pin Spir. 1/4" Dia. MTD-715-0114A
...
34
Grip MTD-720-0223
...
35
COMPRESSION SPRING MTD-732-0430
...
36
ACTUATOR-SWITCH MTD-732-0435
...
37
EXTENSION SPRING MTD-732-0565
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
Fl-Wash. .385 I.D. x .62 MTD-736-0140
...
40
Fl-Wash. .635 I.D. x 1.12 MTD-736-0156
...
41
Fl-Wash. .531 I.D. x .930 MTD-736-0160
...
42
L-Wash. 3/8" I.D. MTD-736-0169
...
43
Fl-Wash. .385 I.D. x .87 O.D. MTD-736-0300
...
44
Spring Washer .530 I.D. MTD-736-0232
...
45
SHOULDER SCREW MTD-738-0183
...
46
Shld. Spacer .625" I.D. MTD-938-0347
...
47
SHAFT-HGT ADJ-RR MTD-738-0550
...
48
CONNECTING ROD MTD-747-0557
...
49
DECK LIFT HANDLE MTD-747-0651
...
50
BOLT-J 3/8-24 x 5. MTD-747-0690
...
51
Spacer. 511 I.D. MTD-750-0515
...
52
SPACER MTD-750-0707
...
53
Fl-Wash. 5/16" I.D. MTD-736-0264
...
54
SPRING MTD-732-0531
...
56
EXTENSION SPRING (32" Deck) MTD-732-0575
...
xx
EXTENSION SPRING (38" Deck) MTD-732-0587
...
57
ANCHOR-SPR MTD-17310
...
58
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
59
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
60
Fl-Wash. .25" I.D. x .93" O.D. MTD-736-0176
...
61
SPACER .255" 1 .D. MTD-750-0583
...
62
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
...
...
...
...
