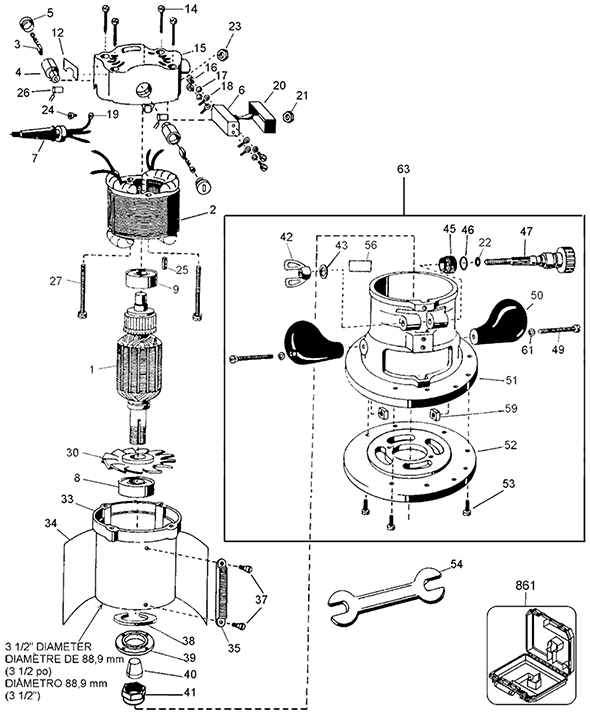

Dewalt D610-04 Type 1 Router

Model: D610-04 Type 1

Save
 Part Not Listed?Part Not Listed?
product name

Dewalt D610-04 Type 1

...
...
xxx
Nut Wing DWB-090914-00
...
xxx
Terminal DWB-68470-00
...
xxx
Screw DWB-6125-00
...
xxx
Terminal DWB-053650-00
...
xxx
Ring DWB-050056-00
...
xxx
Brush Cap DWB-46210-00
...
xxx
Cord DWB-400366-98
...
xxx
Plug DWB-30612-00
...
xxx
Washer Lock DWB-001991-00
...
xxx
Bearing DWB-146555-01
...
xxx
Nut, Clamp DWB-394219-00
...
1
Armature DWB-146557-01
...
2
Field DWB-400252-71
...
3
Brush & Spring DWB-400814-00
...
4
Brush Holder DWB-61208-03
...
5
Brush Cap DWB-046210-00
...
6
Switch DWB-37502-00
...
7
Cord/Sj/18-3 DWB-70540-02
...
8
Bearing DWB-146555-01
...
9
Bearing DWB-158475-00
...
12
Nameplate DWB-263433-01
...
14
Screw DWB-131516-00
...
15
Housing DWB-88199-18
...
16
Screw DWB-20405-00
...
17
Washer DWB-001991-00
...
18
Terminal DWB-053650-00
...
19
Terminal DWB-88667-00
...
20
Insulator DWB-72127-00
...
21
Nut DWB-24699-00
...
22
O Ring DWB-050056-00
...
23
Nut DWB-24701-00
...
24
Screw DWB-626-00
...
25
Plug DWB-030612-00
...
26
Terminal DWB-068470-00
...
27
Screw DWB-006125-00
...
30
Fan DWB-146558-00
...
33
Housing DWB-146547-00
...
34
Housing DWB-146549-00
...
35
Rack DWB-146556-00
...
37
Screw DWB-158487-00
...
38
Retainer DWB-146561-00
...
39
Clamp DWB-394219-00
...
40
Collet 1/2 DWB-150061-00
...
40
Collet 1/4 DWB-150062-00
...
41
Nut DWB-150063-00
...
42
Wing Nut DWB-090914-00
...
43
Washer DWB-46084-00
...
45
Sleeve DWB-71635-01
...
46
Ring DWB-50049-00
...
47
Pinion DWB-133553-00
...
49
Screw DWB-399748-00
...
50
Knob DWB-88024-00
...
51
Base DWB-89192-01
...
52
Base DWB-88761-00
...
53
Screw DWB-158414-00
...
54
Wrench DWB-150133-00
...
56
Label DWB-149661-00
...
59
Nut DWB-81999-00
...
61
Washer DWB-143168-00
...
63
Base DWB-40184-00
...
...
...
...
...
