Cub Cadet CC98M 12A-98M7 (HM 2012) 12A-98M7009 (HM 2012) 12A-98M7010 (HM 2012) Mower

Model: CC98M 12A-98M7/98M7009/98M7010(HM 2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

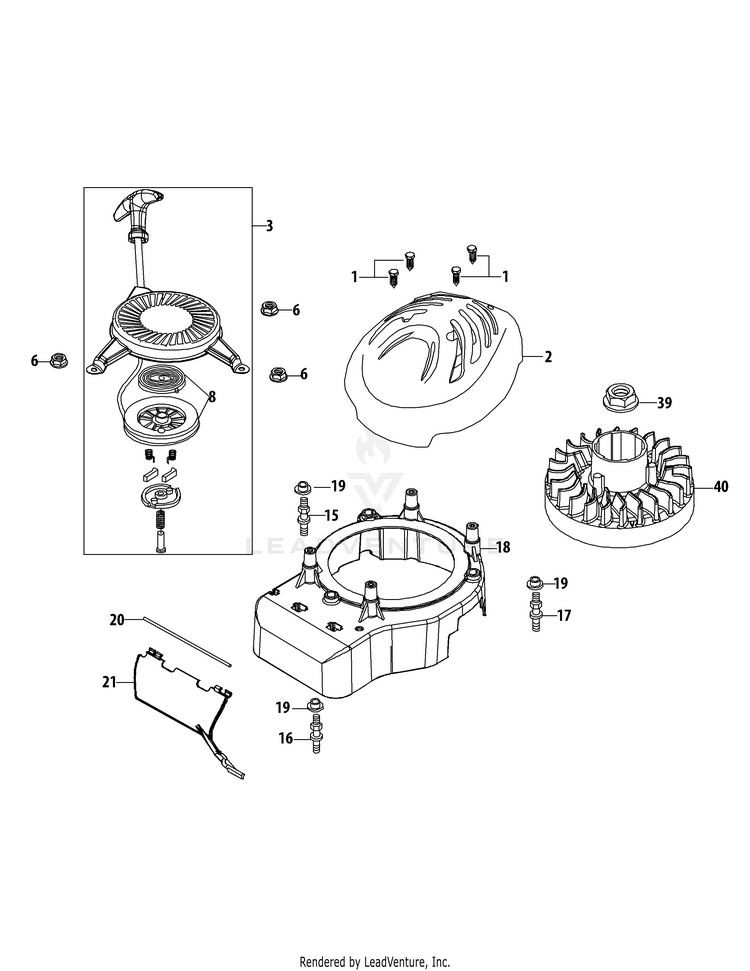

5P70M0C Flywheel & Shroud

...
...
1
Self-Tapping Bolt, Hilo #12-16 X 1.00" MTD-710-04744
...
2
Outer Shroud (Model Specific) See unit breakdown MTD-NA
...
3
Recoil Starter Assembly MTD-951-12683
...
6
Nut M6 MTD-712-05015
...
8
Recoil Spring and Pulley Ass'y MTD-951-11721
...
15
Stud Left/Black/Wh Zinc MTD-710-04976
...
16
Stud Front/Unmarked/Wh Zinc MTD-710-04977
...
17
STARTER SHROUD STUD M6 x 79 MTD-710-04978
...
18
FLYWHEEL SHROUD MTD-951-10764
...
18
INNER SHROUD ASSEMBLY MTD-951-12869
...
19
Engine Shroud Spacer MTD-750-05320
...
20
AIR VANE SHAFT MTD-951-11610
...
21
Air Vane MTD-951-11611
...
39
Flywheel Nut M14 MTD-712-04287
...
40
FLYWHEEL MTD-951-11046
...
...
...
...
...
