product name

Cub Cadet CC760ES 12AE764N (2010) 12AE764N009 (2010) 12AE764N010 (2010) 12AE764N056 (2010) Mower

Model: CC760ES 12AE764N/N009/N010/N056 (2010)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

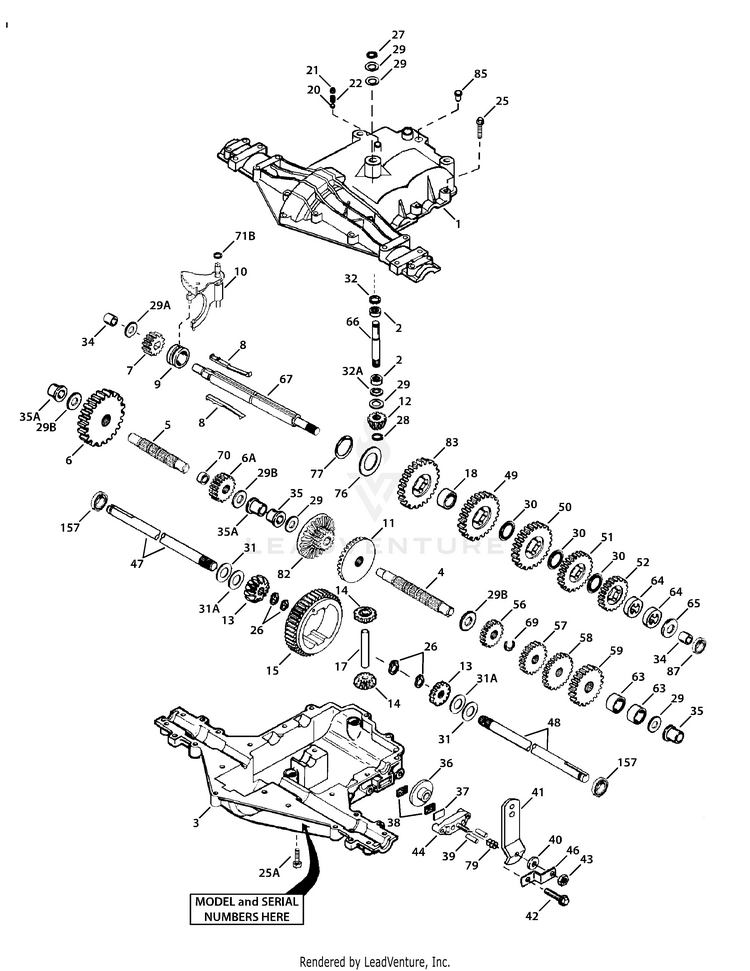

Transmission

...
...
1
COVER-TRNSAXLE UPP MTD-TC-772157A
...
2
THRUST BEARING MTD-TC-780086
...
3
CASE-TRANSAXLE LOWER MTD-TC-770148A
...
4
COUNTERSHAFT MTD-TC-776395
...
5
OUTPUT SHAFT MTD-TC-776409
...
6
SPUR GEAR 38T MTD-TC-778364
...
6A
SPUR GEAR 15T MTD-TC-778369
...
7
SPUR GEAR 11T MTD-TC-778330
...
8
KEY SET-SHIFT MTD-TC-792180A
...
9
COLLAR-SHIFTER MTD-TC-784352
...
10
FORK-SHIFT W/ROD MTD-TC-784378A
...
11
BEVEL GEAR 30T MTD-TC-778334
...
12
GEAR-INPUT PINION MTD-TC-778309
...
13
GEAR SET-BEVEL 13 MTD-TC-778368
...
14
GEAR SET-BEVEL 13 MTD-TC-778368
...
15
RING GEAR 43T MTD-TC-778370
...
17
PIN-DRIVE MTD-TC-786188
...
18
SPACER 1.130 x .6 MTD-TC-786102
...
20
BALL-5/16 GRADE 20 MTD-TC-792077A
...
21
SCREW-SET 3/8-16X3 MTD-TC-792211
...
22
SPRING MTD-TC-792079
...
25
HEX SCREW HD TAP-1 MTD-TC-792073A
...
25A
HEX SCREW 1/4-20X MTD-TC-792177
...
26
RING-RETAINER (SET MTD-TC-792125
...
27
Retaining Ring MTD-TC-792035
...
28
E-RINGXT RET .521 MTD-TC-788040
...
29
THRUST WASHER MTD-TC-780072
...
29A
WASHER MTD-TC-780160
...
29B
WASHER,THRUST MTD-TC-780051
...
30
Shift Washer (Cupped) MTD-TC-780108
...
31
WASHER MTD-TC-780001
...
31A
FLAT WASHER (.062) MTD-TC-780195
...
32
OIL SEAL 5/8 MTD-TC-788083
...
32A
RING-QUAD MTD-TC-792001
...
34
BUSHING (.563) MTD-TC-780194
...
35
FLANGED BUSHING MTD-TC-780210
...
35A
FLANGED BUSHING MTD-TC-780197
...
36
BRAKE DISK MTD-TC-790075
...
37
PLATE-BRAKE PAD MTD-TC-790007
...
38
BRAKE PAD KIT (1 PKG = 2 PADS ) MTD-TC-799021
...
39
DOWEL PIN MTD-TC-786026
...
40
Fl-Wash. .34" I.D. x 1" O.D. MTD-736-3078
...
41
BRAKE LEVER MTD-TC-790104
...
42
HEX SCREW 1/4-20X MTD-TC-792177
...
43
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
44
HOLDER-BRAKE PAD MTD-TC-790025
...
46
BRACKET-BRAKE LEVE MTD-TC-786086
...
47
AXLE SHAFT (LH) MTD-TC-775146
...
48
AXLE SHAFT (RH) MTD-TC-775147
...
49
SPUR GEAR 27T MTD-TC-778338
...
50
SPUR GEAR 22T MTD-TC-778342
...
51
SPUR GEAR 19T MTD-TC-778313
...
52
SPUR GEAR 16T MTD-TC-778350
...
56
SPUR GEAR 13T MTD-TC-778337
...
57
SPUR GEAR 18T MTD-TC-778341
...
58
SPUR GEAR 21T MTD-TC-778351
...
59
SPUR GEAR 24T MTD-TC-778349
...
63
SPACER-COUNTERSHAF MTD-TC-786071
...
64
SPACER-BRAKE SHAFT MTD-TC-786072
...
65
WASHER .563 ID MTD-TC-780189
...
66
SHAFT-TRNSMISN INP MTD-TC-776472
...
67
SHAFT-SHIFTER/BRAK MTD-TC-776396
...
69
RETAINING RING MTD-TC-792170
...
70
SPACER-OUTPUT SHAF MTD-TC-786187
...
71B
O-RING MTD-TC-788092
...
76
THRUST WASHER MTD-TC-780090
...
77
RETAINING RING MTD-TC-788078A
...
79
SPRING MTD-TC-792144
...
82
BEVEL GEAR & SPUR MTD-TC-778333
...
83
SPUR GEAR 27T MTD-TC-778338
...
85
PLUG-PIPE MTD-TC-792154
...
87
OIL SEAL MTD-TC-788089A
...
157
OIL SEAL MTD-TC-788088A
...
...
...
...
...
