Cub Cadet CC550ES 12AE18JA (HM 2012) 12AE18JA010 (HM 2012) Mower

Model: CC550ES 12AE18JA, 12AE18JA010 (HM 2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

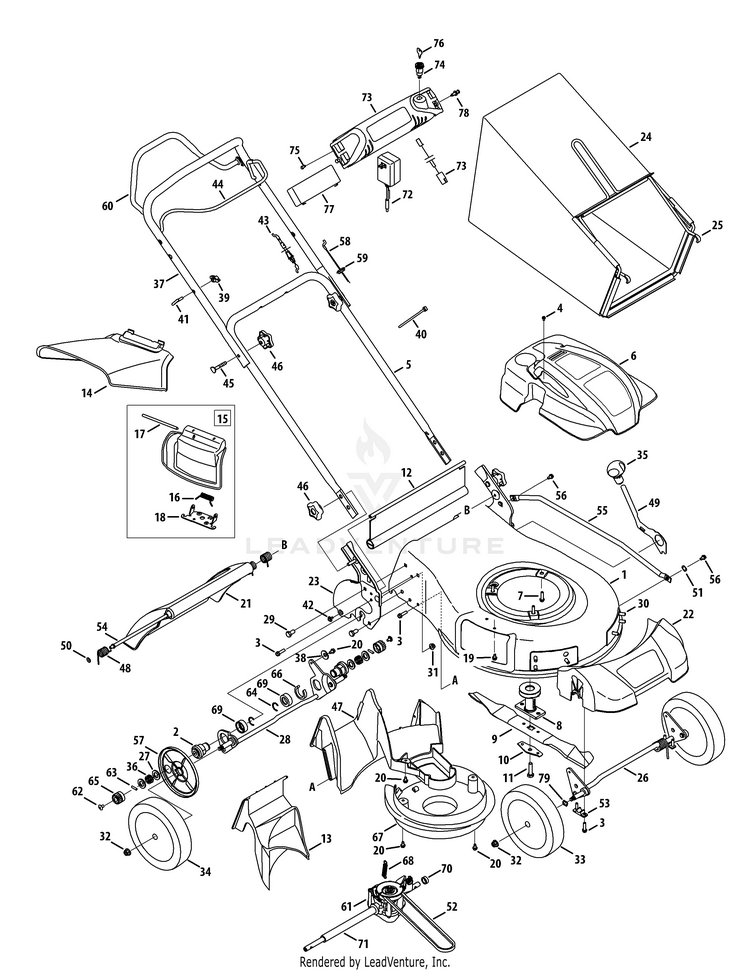

CC550ES General Assembly

...
...
1
19" DECK SHELL (CUB YELLOW 2) MTD-787-01629-4021
...
2
Transmission Support Bearing MTD-687-02415
...
3
Screw, 1/4-15 x 1.000 MTD-710-1241
...
4
Screw, HL, #12-16 x 1.00 MTD-710-04744
...
5
LOWER HANDLE MTD-749-04556
...
6
Engine Shroud MTD-931-04232B
...
7
Screw, 3/8-16 x 1.00 MTD-710-0654A
...
8
Blade Adapter MTD-687-02555
...
9
19" BLADE (MULCH) MTD-742-0739-0637
...
10
BLADE BELL SUPPORT MTD-736-0524B-1
...
11
Screw, 3/8-24 x 1.50 MTD-710-1044
...
12
Trailing Shield MTD-731-05639A
...
13
MULCH PLUG MTD-731-05746
...
14
Side Discharge Chute MTD-731-04177
...
15
Mulch Plug (Incl. 16-18) MTD-987-02055
...
16
Torsion Spring MTD-732-1014C
...
17
Hinge Pin MTD-747-0710A
...
18
PLATE-ADAPTER MTD-17032A
...
19
Screw MTD-710-05073
...
20
Screw MTD-710-0599
...
21
REAR DECK DOOR MTD-931-05686
...
22
Front Cover MTD-931-05673
...
23
HANDLE BRACKET ASSEMBLY (RH)(POWDER BLACK) MTD-687-02323-0637
...
23
HANDLE BRACKET ASSEMBLY (LH) MTD-687-02322
...
24
Grass Bag MTD-964-04066
...
25
Grass Bag Frame MTD-647-04082-0637
...
26
Front Bracket Assembly MTD-687-02225-0637
...
27
Fl-Wash. .50" I.D. x 1.0" O.D. MTD-736-0369
...
28
REAR AXLE ASSEMBLY (POWDER BLACK) MTD-687-02304-0637
...
29
Hhcs, 5/16-18 x .625 MTD-710-3025
...
30
Screw, 5/16-14 x .750 MTD-710-1242
...
31
Nut, Flange Lock, 5/16-18 MTD-712-04063
...
32
Nut, Flange Lock, 3/8-16 MTD-712-04065
...
33
Front Wheel MTD-634-04346
...
34
COGGED WHEEL 8X2.235 (BEIGE) MTD-934-04348
...
35
Knob MTD-720-04096
...
36
Wave Spring MTD-732-04650
...
37
UPPER HANDLE MTD-749-04550
...
38
Washer, Bell, .340 x .872 x .060 MTD-736-0242
...
39
Knob MTD-720-0279
...
40
Cable Tie MTD-725-0157
...
41
Rope Guide MTD-710-1205
...
42
Screw, #10-16 x .500 MTD-710-0779A
...
43
Control Cable MTD-946-04633
...
44
Blade Control MTD-747-05045
...
45
Bolt Carriage, 5/16-18 x 2.0 MTD-710-1174
...
46
Star Knob MTD-720-04072A
...
47
DECK BAFFLE MTD-731-06190
...
48
Door Torsion Spring - RH MTD-732-04534
...
48
Door Torsion Spring - LH MTD-732-04535
...
49
HEIGHT CONTROL LEVER MTD-732-04338C
...
50
Nut, Spd MTD-726-0201
...
51
Wshr, Wave, .385 ID x .598 OD MTD-736-04413
...
52
V-Belt MTD-954-04158
...
53
Bushing, Lock, .505 Dia. X .62 MTD-741-0492A
...
54
DECK DOOR PIVOT ROD MTD-747-04589
...
55
Cross Bracket MTD-749-04307-0637
...
56
Scr., Shldr., 1/4-20 x .50 MTD-738-04278
...
57
Wheel Dust Cover MTD-731-06974
...
58
Drive Cable MTD-946-04519B
...
59
Grommet MTD-735-04059
...
60
DRIVE BAIL MTD-747-05559
...
61
TRANSMISSION MTD-918-04463A
...
62
Screw, 1/4-20 x .390 MTD-710-04531
...
63
Dowel Pin MTD-915-0221
...
64
Retainer Ring MTD-716-0198
...
65
Spur Gear - RH MTD-917-04192C
...
65
Spur Gear - LH MTD-917-04184C
...
66
Spacer, Clip MTD-731-05872
...
67
Engine Baffle MTD-731-06164
...
68
Exten. Spring, .429OD x 2.515 MTD-932-04262
...
69
Bearing Support Spacer MTD-748-0390
...
70
Sleeve Spacer, .550ID x .340 Lg. MTD-750-04870
...
71
SLEEVE SPACER MTD-750-04853
...
72
BATTERY CHARGER MTD-725-06121C
...
73
Electric Start Harness Assembly MTD-925-04072
...
74
Key Switch MTD-925-04347
...
75
Screw, #10-16 x .750 MTD-710-1667A
...
76
Key MTD-925-0201
...
77
BATTERY REPLACEMENT KIT MTD-753-10804
...
78
Rivet MTD-728-0199
...
79
Washer, Wave, .510 x .750 x .017 MTD-936-0504
...
...
...
...
...
