Cub Cadet CC500 11A-18M9 (HM 2012) 11A-18M9010 (HM 2012) Mower

Model: CC500 11A-18M9, 11A-18M9010 (HM 2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

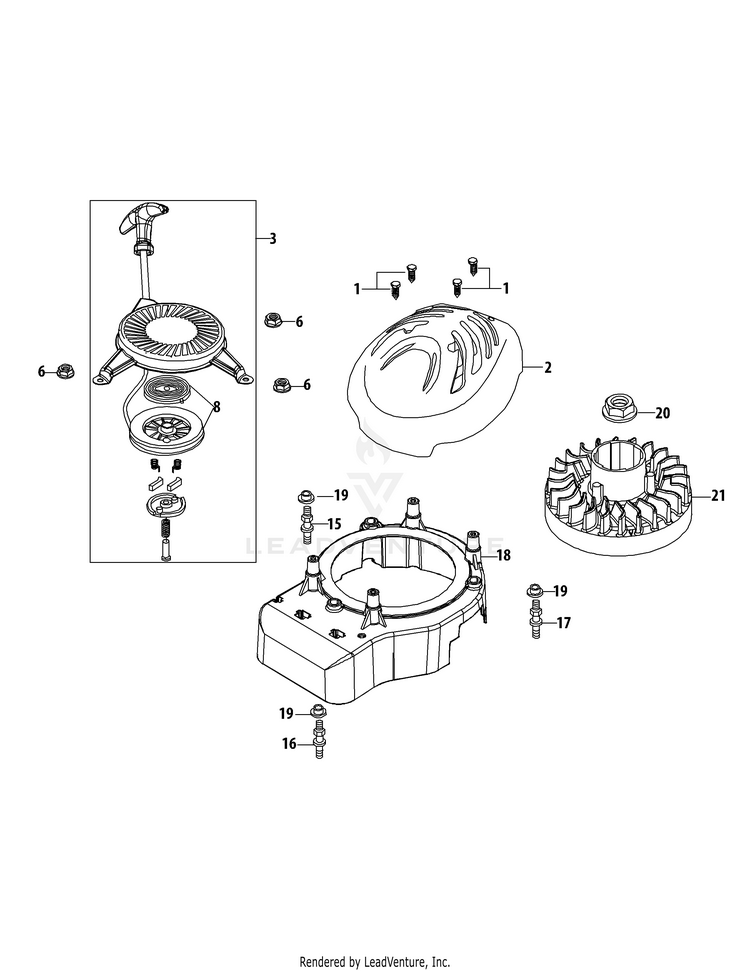

5P65M0C Flywheel & Shroud

...
...
1
Screw, #12-16 X 1.00" MTD-710-04744
...
2
Outer Shroud (Model Specific) MTD-NA
...
3
Recoil Starter Assembly MTD-951-12683
...
6
Nut M6 MTD-712-05015
...
8
Recoil Spring and Pulley Ass'y MTD-951-11721
...
15
Stud Left/Black MTD-751-11722
...
16
Stud Front/Unmarked MTD-951-11723
...
17
Stud Right/White MTD-951-11724
...
18
Inner Shroud MTD-951-10875
...
19
Engine Shroud Spacer MTD-750-05320
...
20
Flywheel Nut M14 MTD-712-04287
...
21
Flywheel MTD-951-11043
...
...
...
...
...
