Craftsman CMXGSAMY462S 41BY462S793 Gas Chainsaw

Model: CMXGSAMY462S 41BY462S793

Save
 Part Not Listed?Part Not Listed?
product name

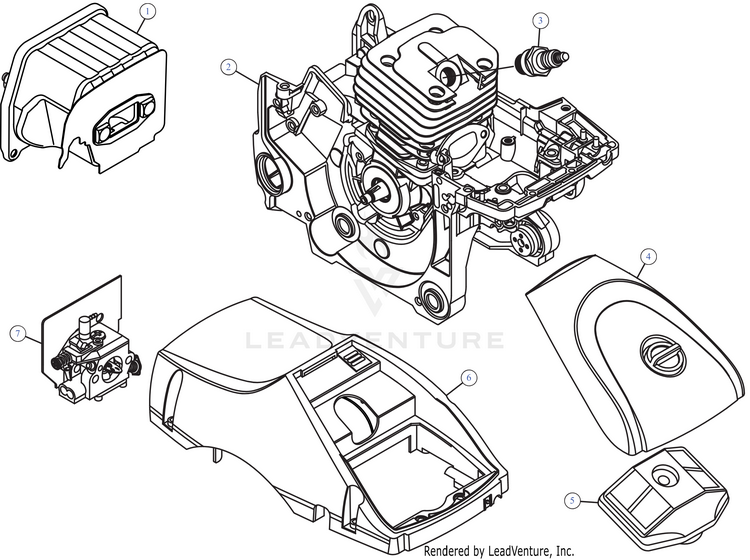

Engine Assembly

...
...
1
MUFFLER ASSEMBLY MTD-953-08106
...
2
SHORTBLOCK 46CC MTD-953-08217
...
3
SPARK PLUG:L8RTF YD4500-26200 MTD-953-08107
...
4
AIR FILTER COVER ASSEMBLY MTD-953-08129
...
5
AIR FILTER W/SEAL MTD-953-08134
...
6
COVER (with Plate and Screws (5)) MTD-953-08135
...
7
CARBURATOR MTD-953-08137
...
xx
OIL PUMP MTD-753-11219

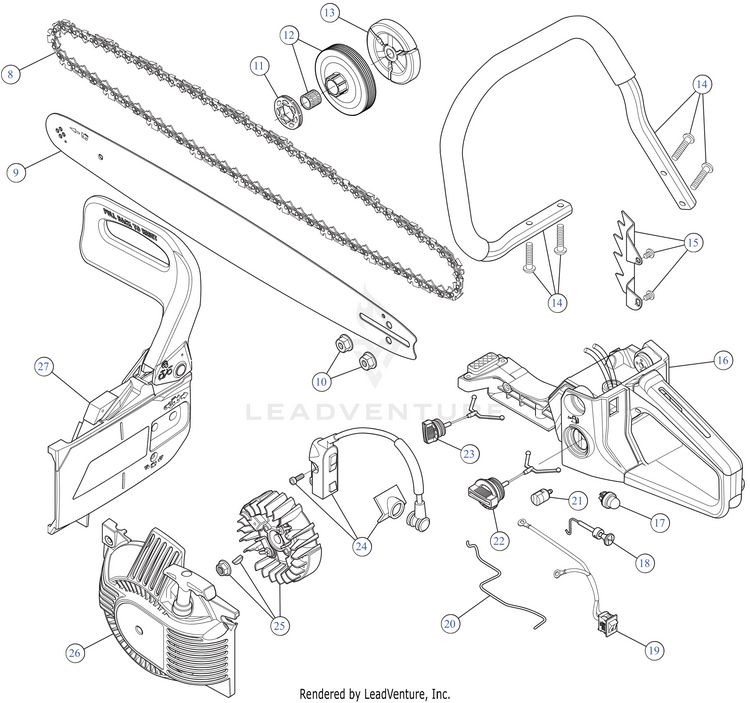

General Assembly

...
...
8
20" CHAINSAW CHAIN MTD-913-05044
...
9
20" BAR MTD-795-00602
...
10
BAR NUT M8 MTD-953-08105
...
11
SPROCKET MTD-953-08219
...
12
CLUTCH DRUM ASSEMBLY MTD-953-08220
...
13
CLUTCH ASSEMBLY MTD-953-08145
...
14
HANDLE ASSEMBLY MTD-953-08130
...
15
SPIKE PLATE W/HDW MTD-953-08128
...
16
FUEL HOUSING ASSEMBLY MTD-953-08142
...
17
PRIMER BULB YD2500-18410 MTD-953-08127
...
18
CHOKE LEVER ASSEMBLY MTD-953-08271
...
19
SWITCH ASSEMBLY MTD-953-08223
...
20
THROTTLE ROD MTD-953-08132
...
21
FUEL FILTER YD4600-18034 MTD-953-08123
...
22
FUEL CAP ASSEMBLY SRS MTD-953-08268
...
23
OIL CAP ASSEMBLY MTD-953-08222
...
24
MODULE MTD-953-08138
...
25
FLYWHEEL MTD-953-08131
...
26
RECOIL ASSEMBLY (SBD4620YD4620.8CM-25313) MTD-753-09386
...
27
BRAKE ASSEMBLY (SBD4620 YD4620.8CM-27724) MTD-753-09389
...
...
...
...
...
