Craftsman CMXGSAMA426S 41AY426S791 Gas Chainsaw

Model: CMXGSAMA426S 41AY426S791

Save
 Part Not Listed?Part Not Listed?
product name

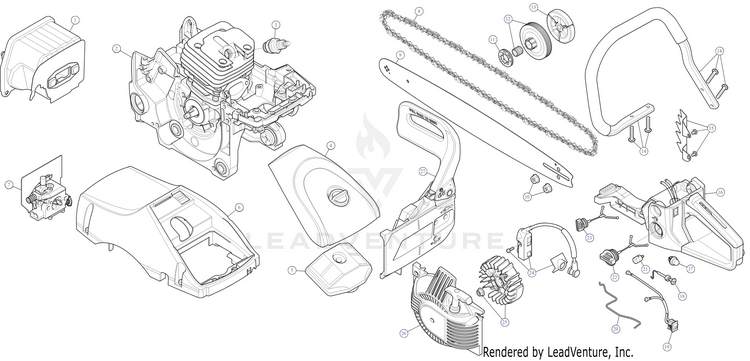

General Assembly

...
...
1
MUFFLER ASSEMBLY MTD-953-08106
...
2
SHORT BLOCK 42CC YD4200.8-31000 MTD-953-08331
...
3
SPARK PLUG:L8RTF YD4500-26200 MTD-953-08107
...
4
AIR FILTER COVER ASSEMBLY MTD-953-08129
...
5
AIR FILTER W/SEAL MTD-953-08134
...
6
COVER (with Plate and Screws (5) MTD-953-08135
...
7
CARBURATOR MTD-953-08137
...
8
CHAIN: 16" TRILINK MTD-713-05041
...
9
16" GUIDE BAR MTD-795-00542
...
10
BAR NUT M8 MTD-953-08105
...
11
SPROCKET MTD-753-10164
...
12
CLUTCH DRUM ASSEMBLY MTD-953-08220
...
13
CLUTCH ASSEMBLY MTD-953-08145
...
14
HANDLE ASSEMBLY (with Screws (4) MTD-953-08130
...
15
SPIKE PLATE W/HDW (with Screws (2) MTD-953-08128
...
16
FUEL HOUSING ASSEMBLY MTD-953-08142
...
17
PRIMER BULB YD2500-18410 MTD-953-08127
...
18
CHOKE LEVER ASSEMBLY MTD-953-08271
...
19
SWITCH ASSEMBLY MTD-953-08223
...
20
THROTTLE ROD MTD-953-08132
...
21
FUEL FILTER YD4600-18034 MTD-953-08123
...
22
FUEL CAP ASSEMBLY SRS MTD-953-08268
...
23
OIL CAP ASSEMBLY MTD-953-08222
...
24
MODULE (with Screws (2) MTD-953-08138
...
25
FLYWHEEL MTD-953-08131
...
26
RECOIL ASSEMBLY (SBD4216YD4216.8CM-25313) MTD-753-09384
...
27
BRAKE ASSEMBLY (SBD4216 YD4216.8CM-27724) MTD-753-09387
...
...
...
...
...
