Craftsman 41DR2BEG799 (316.794030) Gas Blower

Model: 41DR2BEG799 (316.794030)

Save
 Part Not Listed?Part Not Listed?

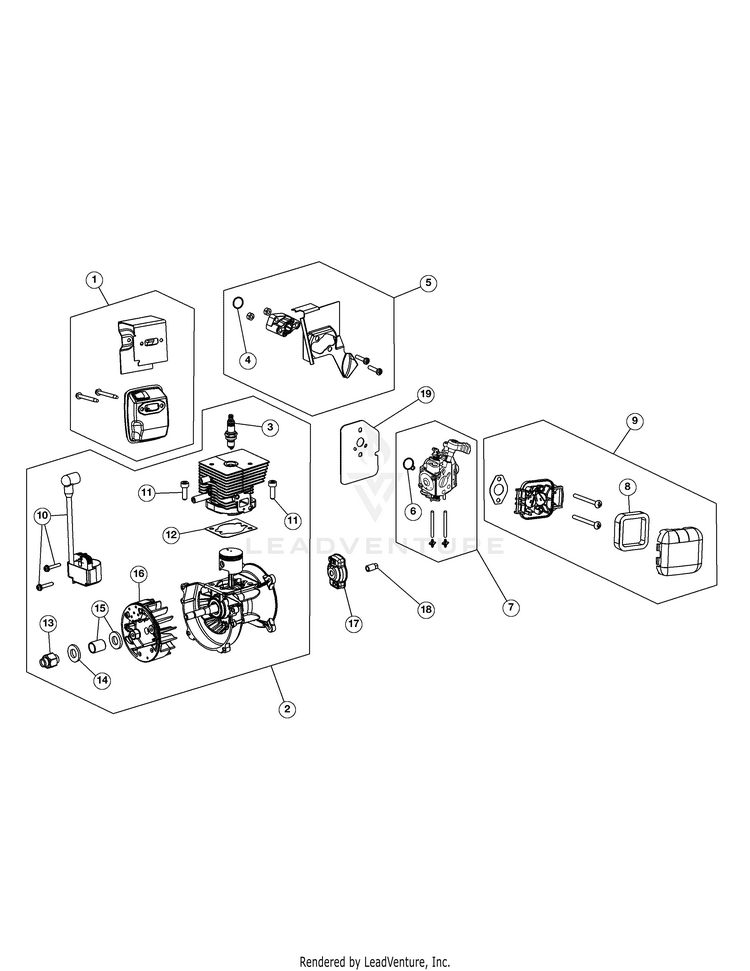

product name

Engine Assembly

...
...
1
MUFFLER ASSEMBLY MTD-753-08745
...
2
Shortblock Assembly (Incl. 3 & 10-16) MTD-753-06441
...
3
Spark Plug MTD-753-06847
...
4
Insulator O-Ring MTD-753-06184
...
5
Insulator Assembly (Incl. 4) MTD-753-06189
...
6
Carburetor Gasket MTD-753-06253
...
7
Carburetor Assembly (Incl. 6) MTD-753-06288
...
8
Air Filter MTD-791-181757
...
9
AIRCLEANER ASSEMBLY MTD-753-08274
...
10
Module Assembly MTD-753-06443
...
11
Screw MTD-710-04715
...
12
Cylinder Gasket MTD-753-06827
...
13
Flywheel Adapter MTD-753-05705
...
14
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
15
Bushing MTD-753-05707
...
16
Flywheel Assembly MTD-753-06246
...
17
Pawl Assembly MTD-753-06091
...
18
Electric Start Adapter MTD-753-06104
...
19
Gasket MTD-721-04721

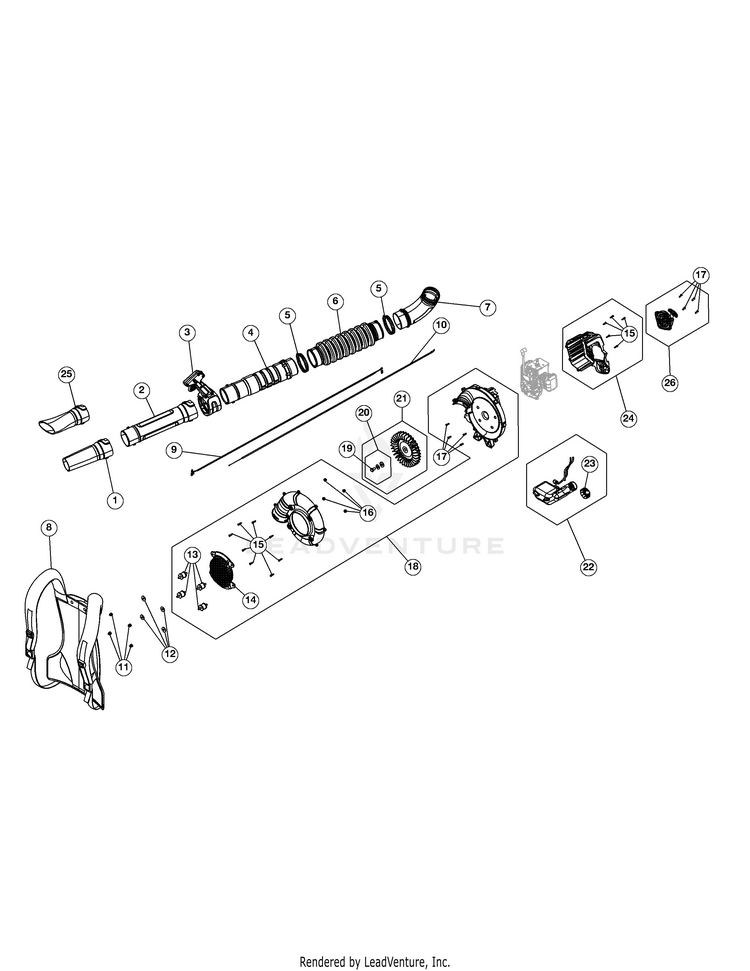

General Assembly

...
...
1
Nozzle MTD-753-06000
...
2
Lower Blower Tube MTD-753-05971
...
3
Throttle Grip Assembly MTD-753-05975
...
4
Upper Blower Tube MTD-753-05991
...
5
Clamp MTD-726-04080
...
6
Flex Tube MTD-753-05641
...
7
Elbow MTD-753-05990
...
8
Harness MTD-753-05645
...
9
Lead Wire MTD-753-06994
...
10
Throttle Cable MTD-946-05195
...
11
Acorn Lock Nut 1/4-20 MTD-712-0442
...
12
WASH, FLAT SPECIAL MTD-4150
...
13
Insulator Mount MTD-753-05648
...
14
Intake Cover MTD-753-05649
...
15
Screw MTD-791-181345
...
16
Nut MTD-712-0324
...
17
SCREW:10-32X.5 MTD-1964
...
18
IMPELLER HOUSING BPK MTD-753-06594
...
19
Bolt MTD-791-182414
...
20
HDWE-IMPELLER MTD-753-04482
...
21
Impeller (Incl. 19 & 20) MTD-753-05651
...
22
Fuel Tank Assembly (Incl. 23) MTD-753-05654
...
23
Fuel Cap MTD-791-182529
...
24
Housing Assembly (Incl. 15) MTD-753-06455
...
25
Flare Nozzle MTD-753-06001
...
26
STARTER ASSEMBLY RR MTD-753-06436
...
...
...
...
...
