Craftsman 41CY85AR799 (316.350851) Gas Chainsaw

Model: 41CY85AR799 (316.350851)

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

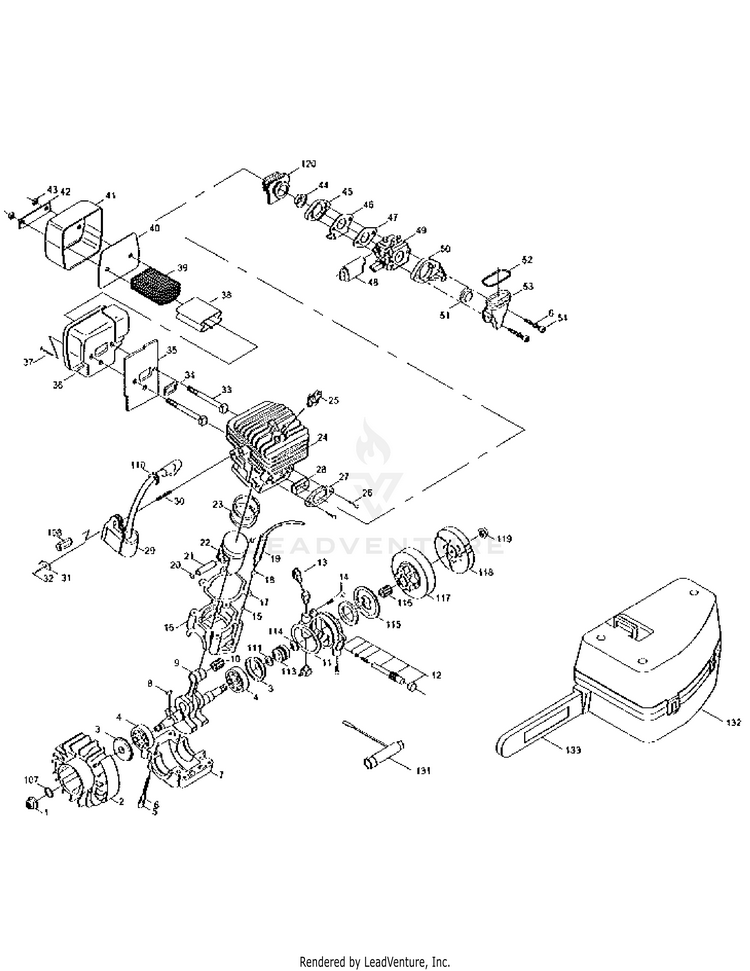

Engine

...
...
1
NUT MTD-MC-9NAB-516-24
...
2
FLYWL MTD-MC-9228-31B206
...
3
SEAL MTD-MC-9157-310201
...
4
BEARING MTD-MC-9DB-620201
...
5
SCREW 10/24-2.75 MTD-710-04505
...
6
WASHER MTD-MC-9WRB-0.2
...
7
CRCASE:LOW MTD-MC-9072-310201F
...
8
KEY MTD-MC-9221-310001
...
9
SHAFT ROD ASSEMBLY MTD-MC-9228-310203A
...
10
BEARING MTD-MC-9155-310201
...
11
O-RING MTD-MC-9076-310201
...
12
PUMP ASS'Y MTD-MC-9228-310208
...
13
CONNECTOR MTD-MC-9154-310201
...
14
SCREW 8/16-0.5 MTD-710-04493
...
15
FITTING-PULSE LINE MTD-MC-9124-310201
...
16
CRCASE:UPPER MTD-MC-9072-310202F
...
17
GASKET MTD-MC-9014-310212
...
18
WIRE CLAMP HOSE MTD-MC-9036-310201
...
19
CONDUIT, FLEX MTD-MC-9056-310201
...
20
RING MTD-MC-9CA-0.46
...
21
PIN MTD-MC-9PC-10-32.5
...
22
PISTON MTD-MC-9290-310201
...
23
RING-PISTON MTD-MC-9189-310201
...
24
CYLINDER MTD-MC-9292-310201F
...
25
SPARK PLUG MTD-MC-9295-320001
...
26
SCREW 10-24-0.75 MTD-710-04491
...
27
FLANGE MTD-MC-9014-310203
...
28
EYELET MTD-MC-9131-310202
...
29
IGNITION ASS'Y MTD-MC-9288-310201
...
30
STUD MTD-MC-9191-310201
...
31
CONTACT MTD-MC-9051-310202
...
32
SCREW 10-24-0.75 MTD-710-04491
...
33
SCREW 10/24-2.75 MTD-710-04506
...
34
WASHER MTD-MC-9014-310208
...
35
BAFFLE-MUF MTD-MC-9082-310201
...
36
MUFFLER MTD-MC-9228-310217
...
37
SCREW 10/24-0.5 MTD-710-04549
...
38
PLATE-MUFF MTD-MC-9211-310201
...
39
SCREEN-MUF MTD-MC-9183-310201
...
40
BAFFLER-MU MTD-MC-9082-310205
...
41
COVER-MUFF MTD-MC-9017-310204
...
42
LOCKPLATE MTD-MC-9158-310201
...
43
NUT MTD-MC-9NAC-1024
...
44
EYELET MTD-MC-9131-310203
...
45
FLANGE MTD-MC-9014-310204
...
46
PLATE MTD-MC-9102-310202
...
47
GASKET MTD-MC-9014-310202
...
48
BOOT MTD-MC-9124-310203
...
49
MTD-MC-9287-310201CARB
...
50
FLANGE MTD-MC-9014-310201
...
51
EYELET MTD-MC-9131-310204
...
52
SPRING MTD-MC-9024-310202
...
53
BOOT MTD-MC-9124-310204
...
54
SCREW 10/24-1.625 MTD-710-04503
...
55
STARTER ASS'Y MTD-MC-9228-31B208
...
56
SCREW MTD-710-04497
...
57
WASHER MTD-MC-9WFZ-0.18
...
58
CLIP MTD-MC-9223-310201
...
59
SCREEN MTD-MC-9183-310202
...
60
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
61
PRIMER MTD-MC-9142-310002
...
62
HOSE MTD-MC-9129-310214
...
63
SCREW 10/24-1 MTD-710-04551
...
64
PLATE MTD-MC-9043-310201
...
65
SPACER MTD-MC-9124-310206
...
66
FUEL CAP MTD-MC-9228-310206
...
67
FILTER MTD-MC-9182-310001
...
68
HOSE MTD-MC-9129-310004
...
69
SCREW 10/14-01 MTD-710-04501
...
70
BOOT-CARB MTD-MC-9124-310202
...
71
VALVE-DUCK MTD-MC-9070-310002
...
72
HOSE MTD-MC-9129-310209
...
73
PLUG MTD-MC-9013-310201
...
74
FILTER MTD-MC-9252-310002
...
75
WASHER MTD-MC-9131-310206
...
76
PLATE-BAR MTD-MC-9043-310203
...
77
PLATE-FLAN MTD-MC-9043-310202
...
78
SCREW 6/19-0.3 MTD-710-04492
...
79
SCREW 12/14-1.5 MTD-710-04496
...
80
HANDLE ASSEMBLY MTD-MC-9228-31B202P
...
81
COVER ASS'Y MTD-MC-9228-310216
...
82
SCREW 10/14-02 MTD-710-04504
...
83
SCREW 10/14-0.68 MTD-710-04548
...
84
CLEANER-AIR MTD-MC-9228-310204
...
85
AIR CLEANER COVER MTD-MC-9067-310202
...
86
SCREW MTD-MC-9214-310101
...
87
CHOKE ASSEMBLY MTD-MC-9228-310230
...
88
CHOKE-ROD MTD-MC-9114-310202
...
89
PLUG MTD-MC-9013-310202
...
90
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
91
CABLE ASSEMBLY MTD-MC-9228-310214
...
92
COVER ASSEMBLY MTD-MC-9228-310232
...
93
SCREW 8/16-1 MTD-710-04495
...
94
SCREW 8/16-1 MTD-710-04495
...
95
WIRE MTD-MC-9010-310203
...
96
ISOLATER MTD-MC-9228-310222
...
97
WASHER MTD-MC-9WFB-4.9-17
...
98
SPRING MTD-MC-9024-310206
...
99
CABLE MTD-MC-9010-310201
...
100
GROMMET MTD-MC-9124-310209
...
101
TRIGGER MTD-MC-9028-310202
...
102
RELEASE TRIGGER MTD-MC-9026-310201
...
103
LATCH-HIGH IDLE MTD-MC-9072-310203
...
104
SPRING MTD-MC-9024-310207
...
105
FRAME-REAR MTD-MC-9068-310203
...
106
SCREW 10-24-0.75 MTD-710-04491
...
107
WASHER MTD-MC-9WOC-08
...
108
SPACER MTD-MC-9124-310205
...
109
PLATE MTD-MC-9043-310205
...
110
GROMMET MTD-MC-9012-330301
...
111
WASH MTD-MC-6014-M96A01
...
112
FUEL FILTER MTD-MC-6182-210101
...
113
WORK GEAR MTD-MC-9073-310201
...
114
WASHER MTD-MC-9WFN-0.4
...
115
WASHER MTD-MC-9WDZ-0.722
...
116
BEARING MTD-MC-9155-310203
...
117
DRUM SPRKT ASS'Y MTD-MC-9228-310211
...
118
CLUTCH ASS'Y MTD-MC-9228-310210
...
119
NUT MTD-MC-9NHC-09
...
120
BOOT-CARB MTD-MC-9124-310202
...
121
SCREW MTD-710-04497
...
122
SCREW 10/24-0.5 MTD-710-04549
...
123
CHAIN MTD-MC-9220-31B202
...
123
Chain 20" MTD-913-05044
...
124
18 INCH BAR MTD-MC-9014-31A216
...
124
20 INCH BAR MTD-MC-9040-31A220
...
125
PLATE MTD-MC-9082-310204
...
126
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310245P
...
127
NUT MTD-MC-9NAZ-516-18
...
128
PLATE MTD-MC-9072-310206
...
129
NUT MTD-MC-9035-310201
...
130
SCREW MTD-MC-9214-310201
...
131
WRENCH MTD-MC-9042-310201
...
132
CASE-CARRY MTD-MC-9120-MD0701
...
133
SCABBARD MTD-MC-9017-310214

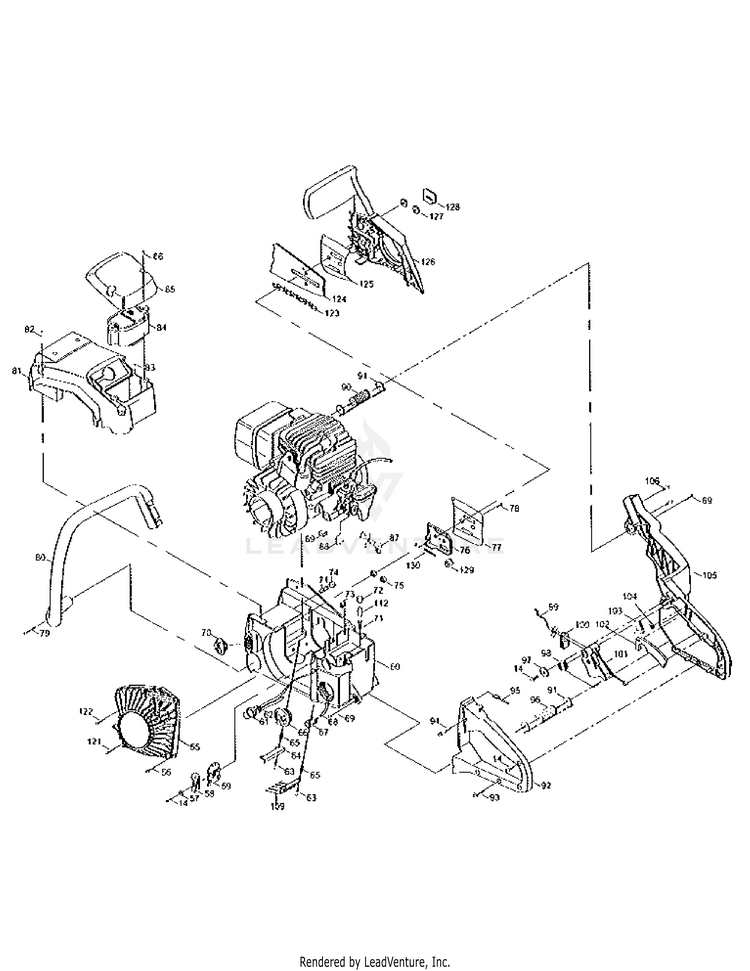

General Assembly

...
...
1
NUT MTD-MC-9NAB-516-24
...
2
FLYWL MTD-MC-9228-31B206
...
3
SEAL MTD-MC-9157-310201
...
4
BEARING MTD-MC-9DB-620201
...
5
SCREW 10/24-2.75 MTD-710-04505
...
6
WASHER MTD-MC-9WRB-0.2
...
7
CRCASE:LOW MTD-MC-9072-310201F
...
8
KEY MTD-MC-9221-310001
...
9
SHAFT ROD ASSEMBLY MTD-MC-9228-310203A
...
10
BEARING MTD-MC-9155-310201
...
11
O-RING MTD-MC-9076-310201
...
12
PUMP ASS'Y MTD-MC-9228-310208
...
13
CONNECTOR MTD-MC-9154-310201
...
14
SCREW 8/16-0.5 MTD-710-04493
...
15
FITTING-PULSE LINE MTD-MC-9124-310201
...
16
CRCASE:UPPER MTD-MC-9072-310202F
...
17
GASKET MTD-MC-9014-310212
...
18
WIRE CLAMP HOSE MTD-MC-9036-310201
...
19
CONDUIT, FLEX MTD-MC-9056-310201
...
20
RING MTD-MC-9CA-0.46
...
21
PIN MTD-MC-9PC-10-32.5
...
22
PISTON MTD-MC-9290-310201
...
23
RING-PISTON MTD-MC-9189-310201
...
24
CYLINDER MTD-MC-9292-310201F
...
25
SPARK PLUG MTD-MC-9295-320001
...
26
SCREW 10-24-0.75 MTD-710-04491
...
27
FLANGE MTD-MC-9014-310203
...
28
EYELET MTD-MC-9131-310202
...
29
IGNITION ASS'Y MTD-MC-9288-310201
...
30
STUD MTD-MC-9191-310201
...
31
CONTACT MTD-MC-9051-310202
...
32
SCREW 10-24-0.75 MTD-710-04491
...
33
SCREW 10/24-2.75 MTD-710-04506
...
34
WASHER MTD-MC-9014-310208
...
35
BAFFLE-MUF MTD-MC-9082-310201
...
36
MUFFLER MTD-MC-9228-310217
...
37
SCREW 10/24-0.5 MTD-710-04549
...
38
PLATE-MUFF MTD-MC-9211-310201
...
39
SCREEN-MUF MTD-MC-9183-310201
...
40
BAFFLER-MU MTD-MC-9082-310205
...
41
COVER-MUFF MTD-MC-9017-310204
...
42
LOCKPLATE MTD-MC-9158-310201
...
43
NUT MTD-MC-9NAC-1024
...
44
EYELET MTD-MC-9131-310203
...
45
FLANGE MTD-MC-9014-310204
...
46
PLATE MTD-MC-9102-310202
...
47
GASKET MTD-MC-9014-310202
...
48
BOOT MTD-MC-9124-310203
...
49
MTD-MC-9287-310201CARB
...
50
FLANGE MTD-MC-9014-310201
...
51
EYELET MTD-MC-9131-310204
...
52
SPRING MTD-MC-9024-310202
...
53
BOOT MTD-MC-9124-310204
...
54
SCREW 10/24-1.625 MTD-710-04503
...
55
STARTER ASS'Y MTD-MC-9228-31B208
...
56
SCREW MTD-710-04497
...
57
WASHER MTD-MC-9WFZ-0.18
...
58
CLIP MTD-MC-9223-310201
...
59
SCREEN MTD-MC-9183-310202
...
60
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
61
PRIMER MTD-MC-9142-310002
...
62
HOSE MTD-MC-9129-310214
...
63
SCREW 10/24-1 MTD-710-04551
...
64
PLATE MTD-MC-9043-310201
...
65
SPACER MTD-MC-9124-310206
...
66
FUEL CAP MTD-MC-9228-310206
...
67
FILTER MTD-MC-9182-310001
...
68
HOSE MTD-MC-9129-310004
...
69
SCREW 10/14-01 MTD-710-04501
...
70
BOOT-CARB MTD-MC-9124-310202
...
71
VALVE-DUCK MTD-MC-9070-310002
...
72
HOSE MTD-MC-9129-310209
...
73
PLUG MTD-MC-9013-310201
...
74
FILTER MTD-MC-9252-310002
...
75
WASHER MTD-MC-9131-310206
...
76
PLATE-BAR MTD-MC-9043-310203
...
77
PLATE-FLAN MTD-MC-9043-310202
...
78
SCREW 6/19-0.3 MTD-710-04492
...
79
SCREW 12/14-1.5 MTD-710-04496
...
80
HANDLE ASSEMBLY MTD-MC-9228-31B202P
...
81
COVER ASS'Y MTD-MC-9228-310216
...
82
SCREW 10/14-02 MTD-710-04504
...
83
SCREW 10/14-0.68 MTD-710-04548
...
84
CLEANER-AIR MTD-MC-9228-310204
...
85
AIR CLEANER COVER MTD-MC-9067-310202
...
86
SCREW MTD-MC-9214-310101
...
87
CHOKE ASSEMBLY MTD-MC-9228-310230
...
88
CHOKE-ROD MTD-MC-9114-310202
...
89
PLUG MTD-MC-9013-310202
...
90
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
91
CABLE ASSEMBLY MTD-MC-9228-310214
...
92
COVER ASSEMBLY MTD-MC-9228-310232
...
93
SCREW 8/16-1 MTD-710-04495
...
94
SCREW 8/16-1 MTD-710-04495
...
95
WIRE MTD-MC-9010-310203
...
96
ISOLATER MTD-MC-9228-310222
...
97
WASHER MTD-MC-9WFB-4.9-17
...
98
SPRING MTD-MC-9024-310206
...
99
CABLE MTD-MC-9010-310201
...
100
GROMMET MTD-MC-9124-310209
...
101
TRIGGER MTD-MC-9028-310202
...
102
RELEASE TRIGGER MTD-MC-9026-310201
...
103
LATCH-HIGH IDLE MTD-MC-9072-310203
...
104
SPRING MTD-MC-9024-310207
...
105
FRAME-REAR MTD-MC-9068-310203
...
106
SCREW 10-24-0.75 MTD-710-04491
...
107
WASHER MTD-MC-9WOC-08
...
108
SPACER MTD-MC-9124-310205
...
109
PLATE MTD-MC-9043-310205
...
110
GROMMET MTD-MC-9012-330301
...
111
WASH MTD-MC-6014-M96A01
...
112
FUEL FILTER MTD-MC-6182-210101
...
113
WORK GEAR MTD-MC-9073-310201
...
114
WASHER MTD-MC-9WFN-0.4
...
115
WASHER MTD-MC-9WDZ-0.722
...
116
BEARING MTD-MC-9155-310203
...
117
DRUM SPRKT ASS'Y MTD-MC-9228-310211
...
118
CLUTCH ASS'Y MTD-MC-9228-310210
...
119
NUT MTD-MC-9NHC-09
...
120
BOOT-CARB MTD-MC-9124-310202
...
121
SCREW MTD-710-04497
...
122
SCREW 10/24-0.5 MTD-710-04549
...
123
CHAIN MTD-MC-9220-31B202
...
123
Chain 20" MTD-913-05044
...
124
18 INCH BAR MTD-MC-9014-31A216
...
124
20 INCH BAR MTD-MC-9040-31A220
...
125
PLATE MTD-MC-9082-310204
...
126
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310245P
...
127
NUT MTD-MC-9NAZ-516-18
...
128
PLATE MTD-MC-9072-310206
...
129
NUT MTD-MC-9035-310201
...
130
SCREW MTD-MC-9214-310201
...
131
WRENCH MTD-MC-9042-310201
...
132
CASE-CARRY MTD-MC-9120-MD0701
...
133
SCABBARD MTD-MC-9017-310214
...
...
...
...
...
