Craftsman 41BY85AR799 (316.350850) Gas Chainsaw

Model: 41BY85AR799 (316.350850)

Save
 Part Not Listed?Part Not Listed?
product name

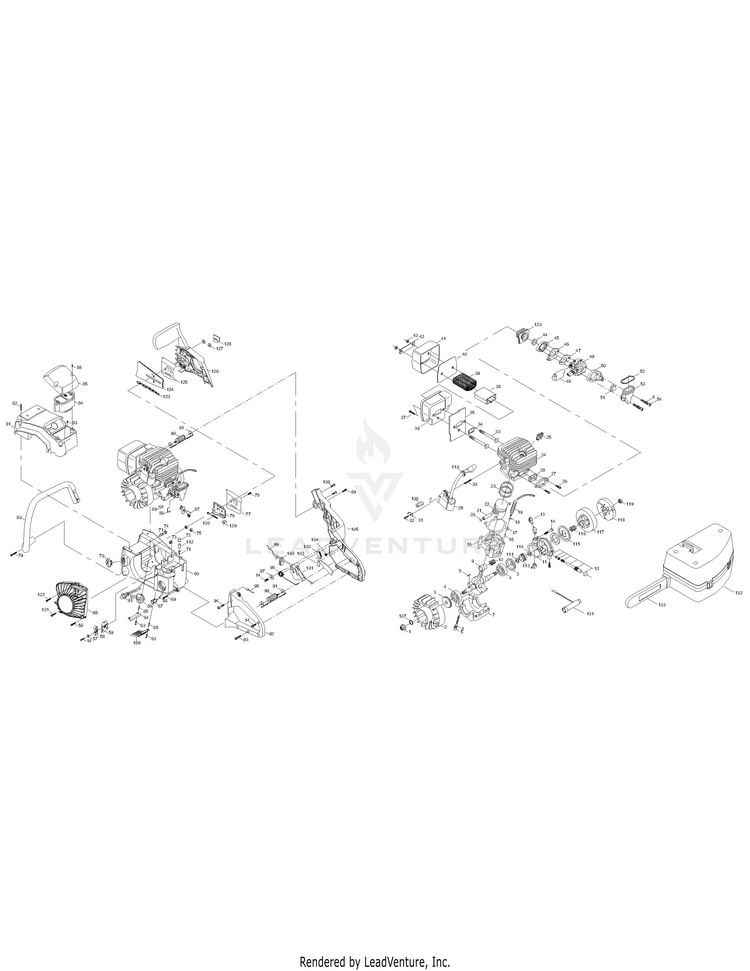

General Assembly

...
...
1
NUT MTD-MC-9NAB-516-24
...
2
FLYWHEEL MTD-9228-31B206
...
3
SEAL MTD-MC-9157-310201
...
4
BEARING MTD-MC-9DB-620201
...
5
SCREW MTD-9SREB-1024-2.75
...
6
WASHER MTD-9WFB-0.2
...
7
CRANKCASE LOWER MTD-9072-310201F
...
8
KEY MTD-9221-310001
...
9
SHAFT ROD ASSEMBLY MTD-MC-9228-310203A
...
10
BEARING MTD-MC-9155-310201
...
11
O RING MTD-9076-310201
...
12
PUMP ASS'Y MTD-9228-310208
...
13
CONNECTOR MTD-MC-9154-310201
...
14
SCREW 8/16-0.5 MTD-710-04493
...
15
FITTING-PULSE LINE MTD-MC-9124-310201
...
16
CRANKCASE UPPER MTD-9072-310202F
...
17
GASKET MTD-MC-9014-310212
...
18
WIRE CLAMP MTD-9036-310201
...
19
CONDUIT-FLEX MTD-MC-9059-310201
...
20
RING MTD-9CA-0.46
...
21
PIN MTD-MC-9PC-10-32.5
...
22
PISTON MTD-MC-9290-310201
...
23
RING-PISTON MTD-MC-9189-310201
...
24
CYLINDER MTD-9292-310201F
...
25
SPARK PLUG MTD-9295-320001
...
26
SCREW MTD-9SKKBY1024-0.62
...
27
FLANGE MTD-MC-9014-310203
...
28
EYELET MTD-MC-9131-310202
...
29
IGNITION ASS'Y MTD-9288-310201-CH
...
30
STUD MTD-9191-310201
...
31
CONTACT MTD-MC-9051-310202
...
32
SCREW MTD-9SKKBY1024-0.75
...
33
SCREW MTD-9STDZY1024-2.79
...
34
WASHER MTD-MC-9014-310208
...
35
BAFFLE-MUF MTD-9082-310201
...
36
MUFFLER MTD-9228-310217
...
37
SCREW MTD-9SKKBY1024-0.5
...
38
PLATE MTD-9211-310201
...
39
SCREEN MTD-9183-310201
...
40
BAFFLER MTD-9082-310205
...
41
COVER-MUFF MTD-9017-310204
...
42
LOCKPLATE MTD-9158-310201
...
43
NUT MTD-MC-9NAC-1024
...
44
EYELET MTD-9131-310203
...
45
FLANGE MTD-MC-9014-310204
...
46
PLATE MTD-MC-9102-310202
...
47
GASKET MTD-MC-9014-310202
...
48
BOOT MTD-MC-9124-310203
...
49
CARBURETOR MTD-9287-310201
...
50
FLANGE MTD-MC-9014-310201
...
51
EYELET MTD-MC-9131-310204
...
52
SPRING MTD-9024-310202
...
53
BOOT MTD-MC-9124-310204
...
54
SCREW MTD-9SREB-1024-1.625
...
55
STARTER ASS'Y MTD-9228-31B208
...
56
SCREW MTD-9SKKBY1014-0.625
...
57
WASHER MTD-9WFZ-0.18
...
58
CLIP MTD-9223-310201
...
59
SCREEN MTD-MC-9183-310202
...
60
FUEL/OIL TANK ASS'Y MTD-MC-9228-310205
...
61
PRIMER MTD-9142-310002
...
62
HOSE MTD-9129-310214
...
63
SCREW MTD-9SKKBY1024-1
...
64
PLATE MTD-9043-310201
...
65
SPACER MTD-9124-310206
...
66
FUEL CAP MTD-MC-9228-310206
...
67
FILTER MTD-9182-310001
...
68
HOSE MTD-9129-310004
...
69
SCREW 10/14-01 MTD-710-04501
...
70
BOOT-CARB MTD-9124-310202
...
71
VALVE DUCKBILL MTD-9070-310002
...
72
HOSE MTD-9129-310209
...
73
PLUG MTD-9013-310201
...
74
FILTER MTD-9252-310002
...
75
WASHER MTD-9131-310206
...
76
PLATE-BAR MTD-MC-9043-310203
...
77
PLATE, FLANGE MTD-9043-310202
...
78
SCREW MTD-9SKKBY619-0.375
...
79
SCREW MTD-9SJKB-1214-1.5
...
80
HANDLE ASSEMBLY MTD-MC-9228-31B202P
...
81
COVER ASS'Y MTD-9228-310216
...
82
SCREW MTD-9SKKBY1014-02
...
83
SCREW MTD-9SKKBY1014-0.68
...
84
AIR CLEANER ASS'Y MTD-9228-310204
...
85
AIR CLEANER COVER MTD-MC-9067-310202
...
86
SCREW MTD-9214-310101
...
87
CHOKE ASSEMBLY MTD-9228-310230
...
88
ROD, CHOKE MTD-9114-310202
...
89
PLUG MTD-9013-310202
...
90
ISOLATOR ASSEMBLY MTD-MC-9228-310213
...
91
CABLE ASS'Y MTD-9228-310214
...
92
COVER ASSEMBLY MTD-9228-310232
...
93
SCREW MTD-9SKKBY816-0.625
...
94
SCREW MTD-9SKKBY-816-1
...
95
WIRE MTD-MC-9010-310203
...
96
ISOLATOR ASS'Y MTD-9228-310222
...
97
WASHER MTD-MC-9WFB-4.9-17
...
98
SPRING MTD-MC-9024-310206
...
99
CABLE MTD-9010-310201
...
100
GROMMET MTD-MC-9124-310209
...
101
TRIGGER MTD-MC-9028-310202
...
102
RELEASE-TRIGGER MTD-MC-9028-310201
...
103
LATCH-HIGH IDLE MTD-MC-9072-310203
...
104
SPRING MTD-9024-310207
...
105
FRAME-REAR MTD-MC-9068-310203
...
106
SCREW 10-24-6.5 MTD-710-04490
...
107
WASHER MTD-9WOC-08
...
108
SPACER MTD-9124-310205
...
109
PLATE MTD-MC-9043-310205
...
110
GROMMET MTD-MC-9012-330301
...
111
WASH MTD-MC-6014-M96A01
...
112
FUEL FILTER MTD-MC-6182-210101
...
113
GEAR, WORM MTD-9073-310201
...
114
WASHER MTD-9WFN-0.4
...
115
WASHER MTD-MC-9WDZ-0.722
...
116
BEARING MTD-9155-310203
...
117
DRUM SPRKT ASS'Y MTD-9228-310211
...
118
CLUTCH ASS'Y MTD-9228-310210
...
119
NUT MTD-MC-9NHC-09
...
120
BOOT-CARB MTD-9124-310202
...
121
SCREW MTD-9SKKBY1014-0.625
...
122
SCREW MTD-9SKKBY1024-0.5
...
123
CHAIN MTD-9220-31B202
...
124
BAR MTD-9040-31A216
...
125
PLATE MTD-9082-310204
...
126
BRAKE ASSEMBLY:CHAIN MTD-MC-9228-310245P
...
127
NUT MTD-9NAZ-516-18
...
128
PLATE MTD-MC-9072-310206
...
129
NUT MTD-9035-310201
...
130
SCREW MTD-9214-310201
...
131
WRENCH MTD-9042-310201
...
132
CASE-CARRY MTD-9120-MD0701
...
133
SCABBARD MTD-9017-310214
...
...
...
...
...
