Craftsman 41BY462S799 (316.380200) Gas Chainsaw

Model: 41BY462S799 (316.380200)

Save
 Part Not Listed?Part Not Listed?
product name

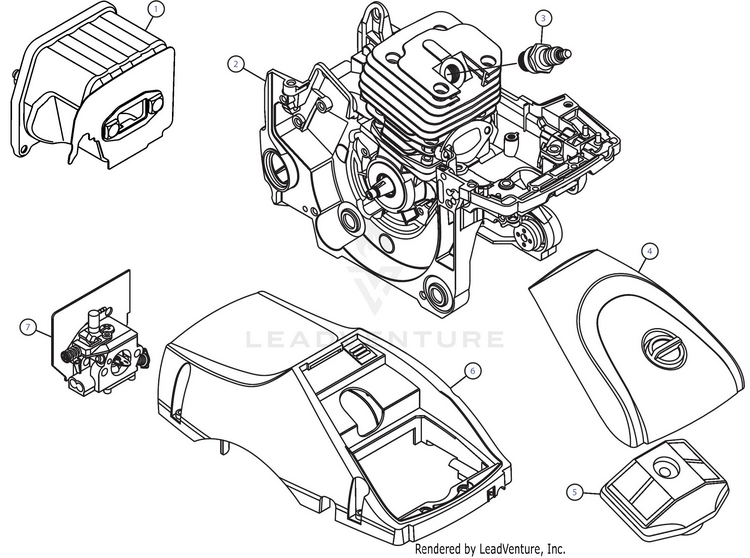

Engine Assembly

...
...
1
Muffler Assembly MTD-953-08106
...
2
46cc Short Block Assembly MTD-953-08217
...
3
Spark Plug MTD-953-08107
...
4
Air Filter Cover Assembly MTD-953-08129
...
5
Air Filter MTD-953-08134
...
6
Cylinder Cover Assembly (with Plate and Screws (5)) MTD-953-08135
...
7
Carburetor Assembly MTD-953-08137

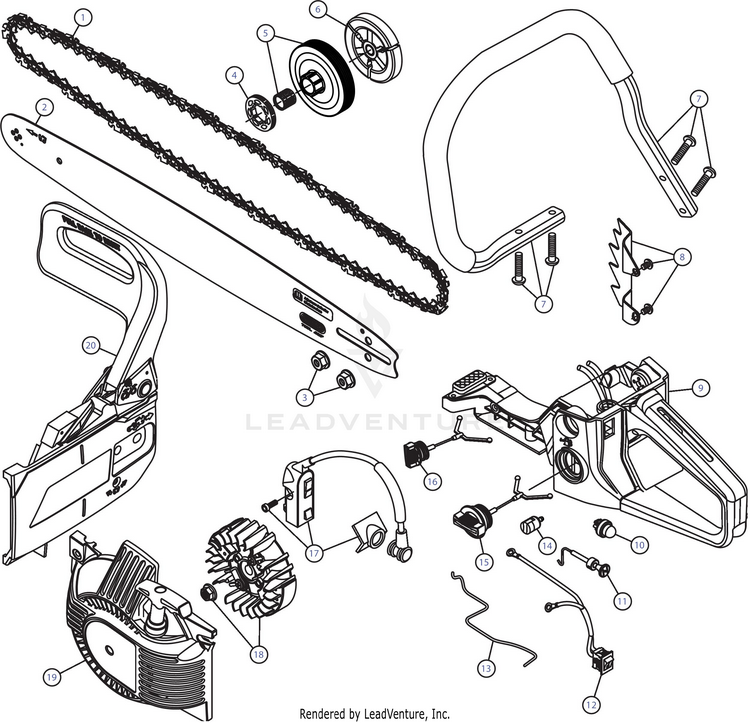

General Assembly

...
...
1
Chain 20" MTD-913-05044
...
2
Chain Guide Bar MTD-795-00277
...
3
Guide Bar Nuts (2) MTD-953-08105
...
4
Sprocket MTD-953-08219
...
5
Clutch Drum Assembly MTD-953-08220
...
6
Clutch Assembly MTD-953-08145
...
7
Chainsaw Handle Assembly (with Screws (4)) MTD-953-08130
...
8
Spike Plate (with Screws (2)) MTD-953-08128
...
9
Fuel Tank Assembly MTD-953-08142
...
10
Primer Bulb MTD-953-08127
...
11
Choke Lever Assembly MTD-953-08271
...
12
Stop Switch Assembly MTD-953-08223
...
13
THROTTLE ROD MTD-953-08132
...
14
Fuel Filter MTD-953-08123
...
15
Fuel Cap Assembly MTD-953-08268
...
16
Oil Cap Assembly MTD-953-08222
...
17
Ignition Module Assembly (with Screws (2)) MTD-953-08138
...
18
Flywheel Assembly MTD-953-08131
...
19
Starter Housing Assembly MTD-953-08270
...
20
Chainsaw Brake Assembly MTD-953-08269
...
...
...
...
...
