Craftsman 41BR2BPG799 (316.794791) Gas Blower

Model: 41BR2BPG799 (316.794791)

Save
 Part Not Listed?Part Not Listed?
product name

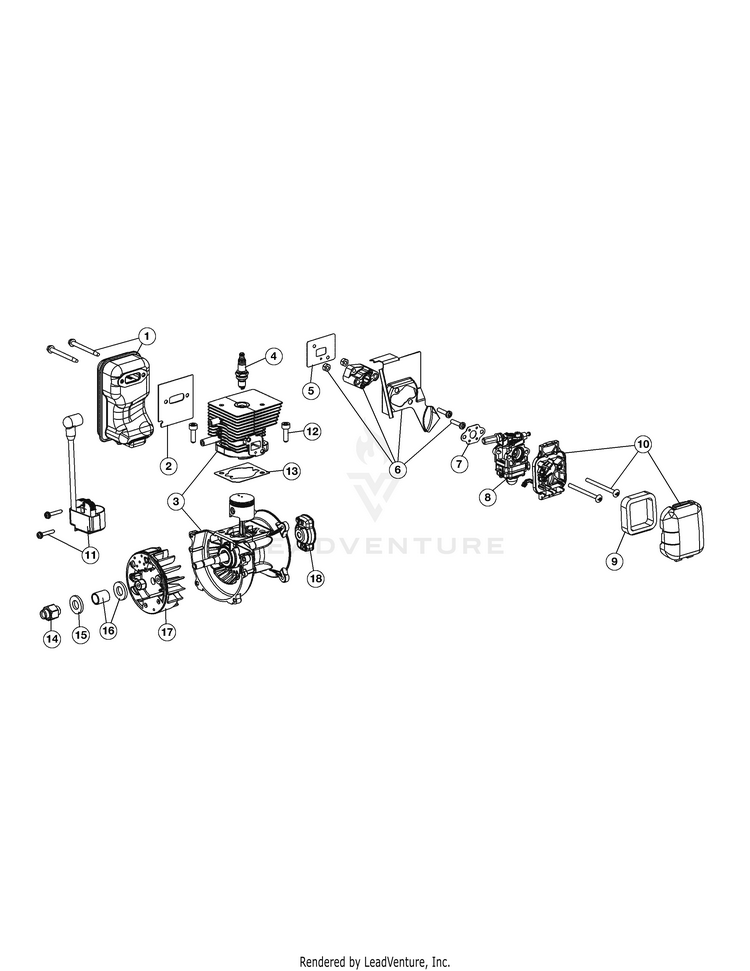

Engine Assembly

...
...
1
MUFFLER ASSEMBLY (Incl. Ref No. 2) MTD-753-05631
...
2
MUFFLER GASKET MTD-753-05701
...
3
SHORT BLOCK (Incl. Ref No. 4 & 11-17) MTD-753-05636
...
4
Spark Plug MTD-794-00082
...
5
INSULATOR GASKET MTD-753-05702
...
6
INSULATOR ASSEMBLY BKPK (Incl. Ref No. 5) MTD-753-05632
...
7
Carburetor Gasket MTD-791-181709
...
8
Carburetor Assembly (Incl. Ref No. 7) MTD-753-05633
...
9
Air Filter MTD-791-181757
...
10
Aircleaner Assembly (Incl. Ref No. 9) MTD-753-05725
...
11
MODULE ASSEMBLY WITH HARDWARE MTD-753-04324
...
12
Screw MTD-710-04715
...
13
CYLINDER GASKET MTD-753-05704
...
14
Flywheel Adapter MTD-753-05705
...
15
Flat Washer .51 " I.D. x 1.0" O.D. MTD-736-0326
...
16
Bushing MTD-753-05707
...
17
FLYWHEEL ASSEMBLY MTD-753-05708
...
18
PAWL ASSEMBLY 26CC MTD-753-05635

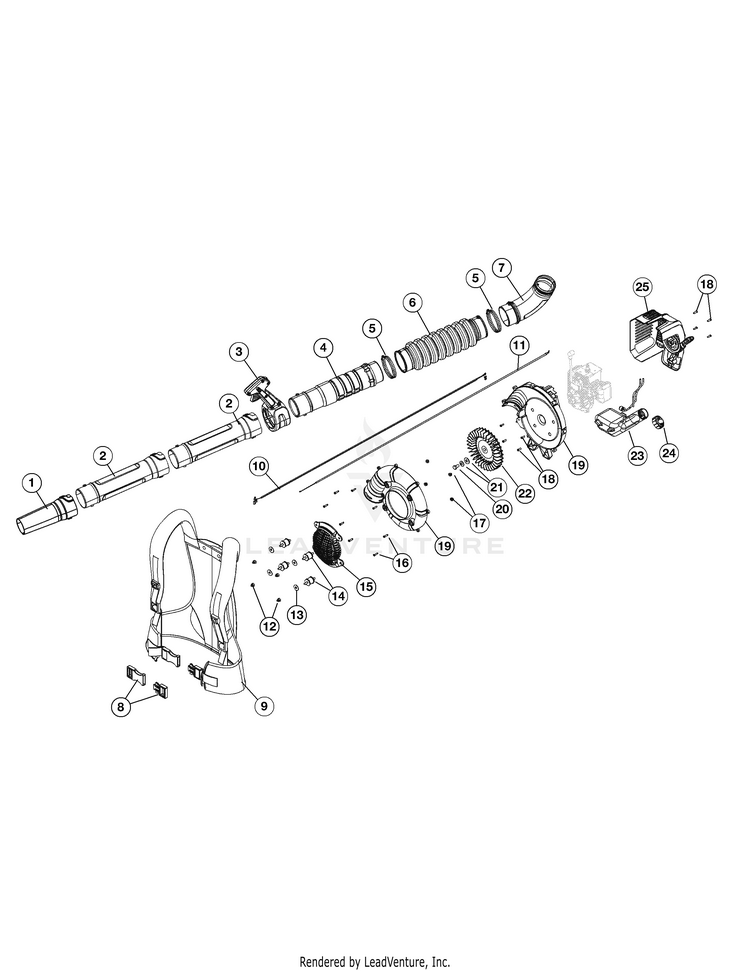

General Assembly

...
...
1
Nozzle MTD-753-06000
...
2
Lower Blower Tube MTD-753-05971
...
3
Throttle Grip Assembly MTD-753-05975
...
4
Upper Blower Tube MTD-753-05991
...
5
Clamp MTD-726-04080
...
6
Flex Tube MTD-753-05641
...
7
Elbow MTD-753-05990
...
8
Harness Clip MTD-731-06191
...
9
Harness (Incl. Ref No. 8) MTD-753-05645
...
10
Lead Wire MTD-753-05643
...
11
Throttle Cable MTD-753-06018
...
12
Acorn Lock Nut 1/4-20 MTD-712-0442
...
13
Spacer MTD-750-04929
...
14
Insulator Mount MTD-753-05648
...
15
Intake Cover MTD-753-05649
...
16
Screw MTD-791-181345
...
17
Hex Lock Nut MTD-712-0324
...
18
SCREW:10-32X.5 MTD-1964
...
19
IMPELLER HOUSING ASSEMBLY (Incl. Ref No.14 & 16-18) MTD-753-05650
...
20
Bolt MTD-791-182414
...
21
HDWE-IMPELLER (Incl. Ref No. 20) MTD-753-04482
...
22
Impeller (Incl. Ref No. 20 & 21) MTD-753-05651
...
23
Fuel Tank Assembly MTD-753-05654
...
24
Fuel Cap MTD-791-182529
...
25
STARTER HOUSING ASSEMBLY R (Incl. Ref No. 16 & 18) MTD-753-05726
...
...
...
...
...
