Craftsman 41AS4SCG799 (316.794830) Gas Blower

Model: 41AS4SCG799 (316.794830)

Save
 Part Not Listed?Part Not Listed?
product name

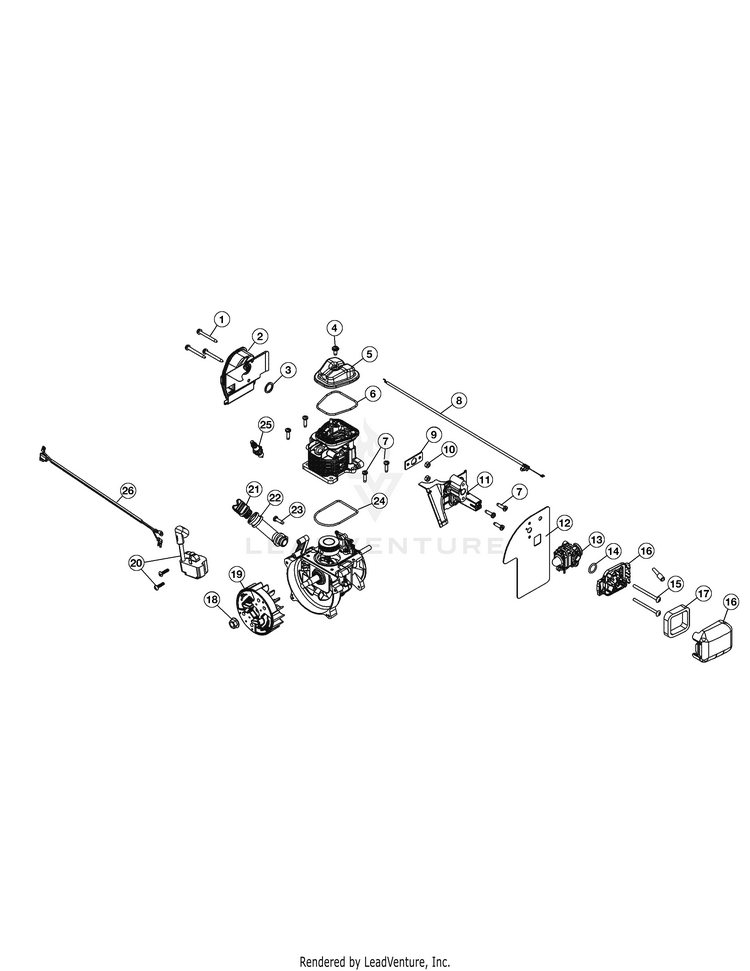

Engine Assembly

...
...
1
Screw MTD-710-04809
...
2
MUFFLER ASSEMBLY (Incl. Ref No. 1 & 3) MTD-753-05900
...
3
Muffler Gasket MTD-753-05244
...
4
Screw MTD-791-181025
...
5
Rocker Cover MTD-753-05901
...
6
O-Ring MTD-753-05902
...
7
SCREW, M5 X18 MTD-9052-1
...
8
Throttle Cable MTD-753-05903
...
9
Insulator Gasket MTD-753-05673
...
10
Nut MTD-712-04099
...
11
Insulator MTD-753-05904
...
12
Carburetor Gasket MTD-753-05905
...
13
CARB AC5 MTD-753-05908
...
14
Carburetor O-Ring MTD-791-181751
...
15
Screw MTD-710-04517
...
16
Air Cleaner Assembly (Incl. Ref No. 17) MTD-753-04223
...
17
Air Filter MTD-791-181757
...
18
Nut MTD-712-04137
...
19
FLYWHEEL ASSEMBLY MTD-753-05906
...
20
Module MTD-753-05907
...
21
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
22
Oil Fill Tube MTD-753-05909
...
23
SCREW M5X0.8 MTD-710-04604A
...
24
O-Ring MTD-753-05910
...
25
Spark Plug MTD-794-00082
...
26
Lead Wire MTD-753-05911
...
xx
Shortblock Assembly Not shown (Incl. Ref No. 4-7 & 21-25) MTD-753-05912
...
xx
Valve Not shown MTD-753-05966

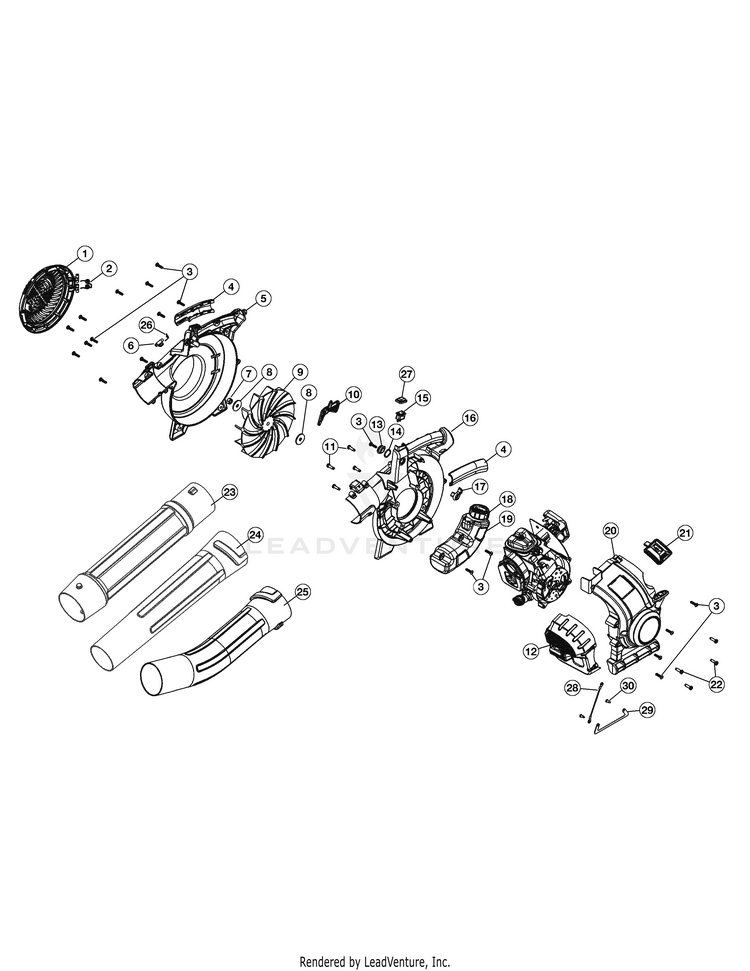

General Assembly

...
...
1
INTAKE COVER SCBLO MTD-753-05917
...
2
Spring MTD-753-05918
...
3
Screw MTD-710-04194
...
4
Handle Grips MTD-753-05919
...
5
IMPELLER HOUSING OTR (Incl. Ref No. 4) MTD-753-05920
...
6
Latch Tube MTD-753-05926
...
7
Nut MTD-753-05927
...
8
Washer MTD-753-05928
...
9
Impeller MTD-753-05929
...
10
THROTTLE TRIGGER MTD-753-05930
...
11
SCREW, M5 X18 MTD-9052-1
...
12
COVER MUFFLER (Incl. Ref No. 3) MTD-753-05931
...
13
Inner Trigger Lock MTD-753-05924
...
14
WAVE WASHER MTD-736-04353
...
15
Switch MTD-791-182405
...
16
Impeller Housing (Incl. Ref No. 4) MTD-753-06693
...
17
Outer Trigger Lock MTD-753-05932
...
18
Fuel Cap MTD-753-05289
...
19
Fuel Tank Assembly (Incl. Ref No. 18) MTD-753-05933
...
20
Engine Cover Assembly (Incl. Ref No. 3, 21 & 22) MTD-753-05934
...
21
Spark Plug Cover MTD-753-05935
...
22
SCREW M5X0.8 MTD-710-04604A
...
23
Upper Tube MTD-753-05936
...
24
Lower Tube MTD-753-05937
...
25
FLARE TUBE MTD-753-05938
...
26
Latch Spring MTD-753-05939
...
27
SWITCH COVER MTD-753-05942
...
28
Wire Ground MTD-753-05964
...
29
Strap Ground MTD-753-05965
...
30
Screw MTD-753-01202
...
...
...
...
...
