Craftsman 41AS360G799 (316.794980) Gas Blower

Model: 41AS360G799 (316.794980)

Save
 Part Not Listed?Part Not Listed?
product name

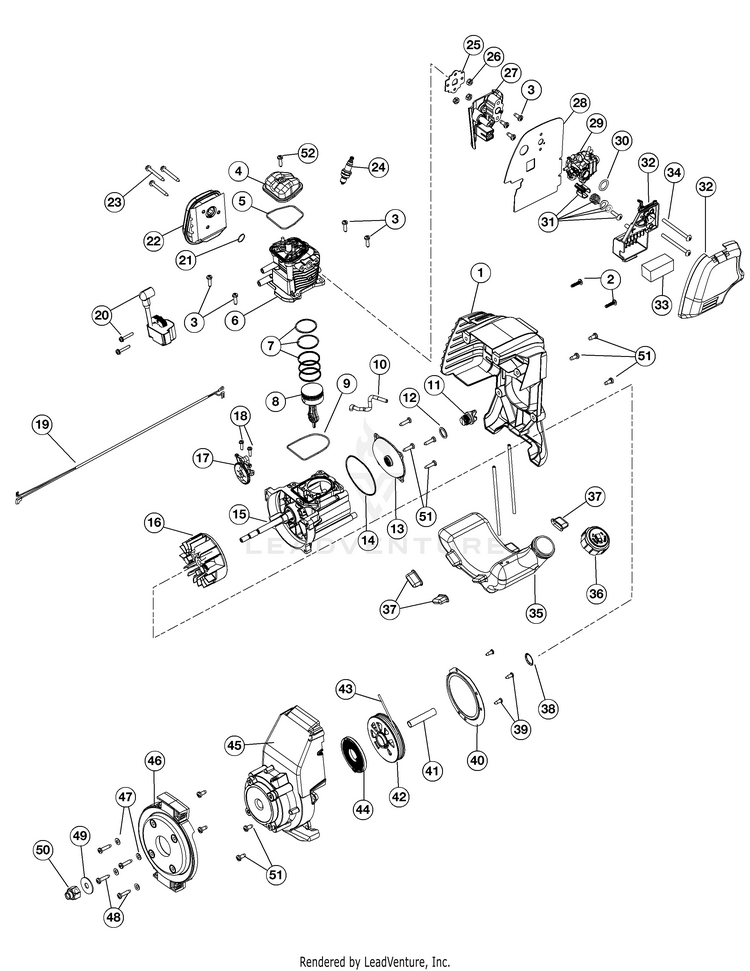

Engine Assembly

...
...
1
ENGINE COVER ASSEMBLY MTD-753-05363
...
2
Screw MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY MTD-753-05228
...
7
PISTON RING ASSEMBLY MTD-753-05229
...
8
PISTON ASSEMBLY MTD-753-05230
...
9
Cylinder O-Ring MTD-753-05232
...
10
Breather Hose MTD-791-182379
...
11
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
12
Oil Plug O-Ring MTD-791-182290
...
13
CRANKCASE COVER MTD-753-05237
...
14
Crankcase Cover O-ring MTD-753-05238
...
15
CRANK CASE ASSEMBLY AC3 MTD-753-05503
...
16
Flywheel Assembly MTD-753-05240
...
17
CAM BRACKET ASSEMBLY MTD-753-05241
...
18
CAM SCREW 8-32X.625 MTD-710-04584
...
19
LEAD WIRES MTD-753-05365
...
20
Module Assembly MTD-753-05301
...
21
Muffler Gasket MTD-753-05244
...
22
Muffler Assembly (includes 21 & 23) MTD-753-05245
...
23
Screw MTD-710-04809
...
24
Spark Plug MTD-794-00082
...
25
GASKET/INSULATOR MTD-753-05247
...
26
Nut MTD-712-04099
...
27
Insulator (includes 28) MTD-753-05249
...
28
Carburetor Gasket MTD-753-05366
...
29
CARBURETOR W/PRIME MTD-753-05367
...
30
O-Ring MTD-791-181751
...
31
THROTTLE LEVER MTD-753-05368
...
32
AIR CLEANER COVER ASSEMBLY MTD-753-05302
...
33
Air Filter MTD-753-05254
...
34
Screw MTD-710-04517
...
35
Fuel Tank Assembly w/Fuel Lines (includes 36) MTD-753-05256
...
36
Fuel Cap MTD-753-1229
...
37
Fuel Tank Pads MTD-753-05259
...
38
PUSH NUT MTD-712-04096
...
39
Screw, 10-9 x .50 MTD-1755
...
40
PLATE:PRESS:4 CY:AST MTD-753-05074
...
41
SPACER MTD-750-04704
...
42
STARTER ASSEMBLY MTD-753-05303
...
43
Rope MTD-791-613103
...
44
Recoil Spring MTD-753-04286
...
45
STARTER HOUSING ASSEMBLY MTD-753-05370
...
46
PLATE ASSEMBLY: MTD-753-04809
...
47
Washer MTD-791-182409
...
48
Screw MTD-710-04215A
...
49
Washer MTD-9162-1
...
50
NUT, DRIVE IMPELLE MTD-791-181524
...
51
SCREW M5X0.8 MTD-710-04604A
...
xx
SPARK ARRESTER Not Shown MTD-753-05297
...
xx
SHORT BLOCK Not Shown, (includes 3-12, 14, 15, 17, 24 & 51) MTD-753-05265

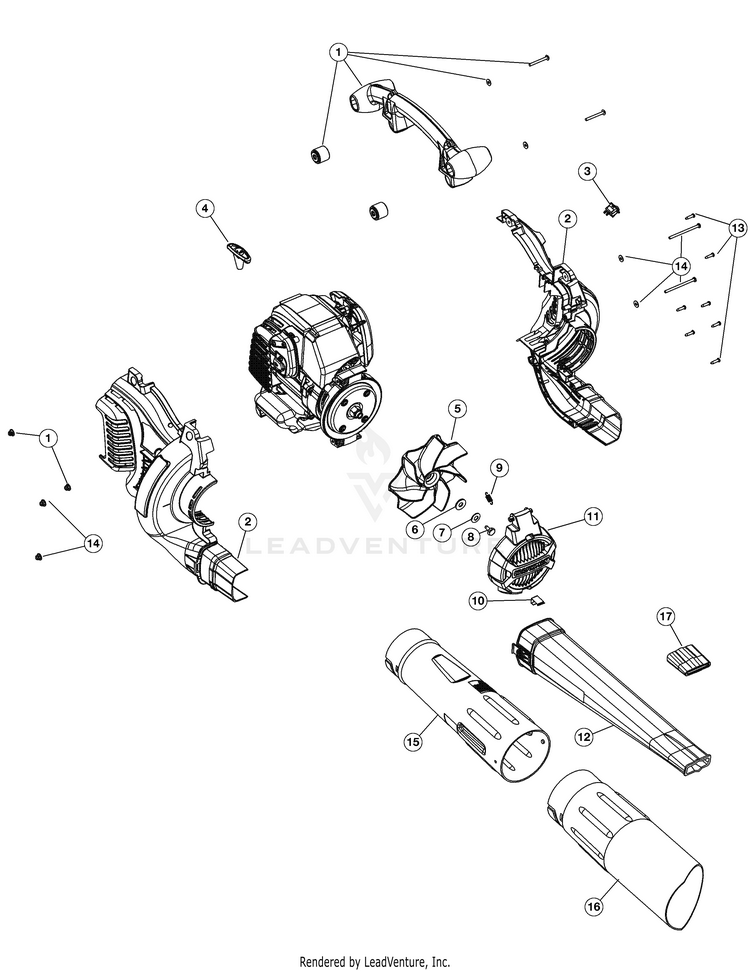

Housing Assembly

...
...
1
HANDLE ASSEMBLY MTD-753-05372
...
2
IMPELLER HOUSING ASSEMBLY MTD-753-05373
...
3
Switch MTD-791-182405
...
4
Pull Handle MTD-631-04164B
...
5
Impeller Blade MTD-731-04275
...
6
Washer MTD-736-04107
...
7
Lock Washer MTD-736-04110A
...
8
Bolt MTD-791-182414
...
9
SPRING-DOOR MTD-753-04456
...
10
Vacuum Door Lock MTD-732-04092A
...
11
VAC DOOR MTD-753-05380
...
12
TUBE:BLO:BK MTD-753-05016
...
13
Screw MTD-791-181345
...
14
IMPELLER HOUSING HDW MTD-753-05374
...
15
TUBE, UPPER VACUUM (ELEC BLWR- MTD-791-180466
...
16
Lower Vacuum Tube MTD-791-180467
...
17
CONCENTRATOR-AC3 B MTD-753-05379
...
xx
Shoulder Strap Not Shown MTD-791-682075B
...
xx
BAG ASSEMBLY-VAC W/BAG & CABLE TIE Not Shown, (includes Bag, Adapter & Cable Tie) MTD-753-04458
...
...
...
...
...
