Craftsman 41AS2BVG799 (316.794720) Gas Blower

Model: 41AS2BVG799 (316.794720)

Save
 Part Not Listed?Part Not Listed?
product name

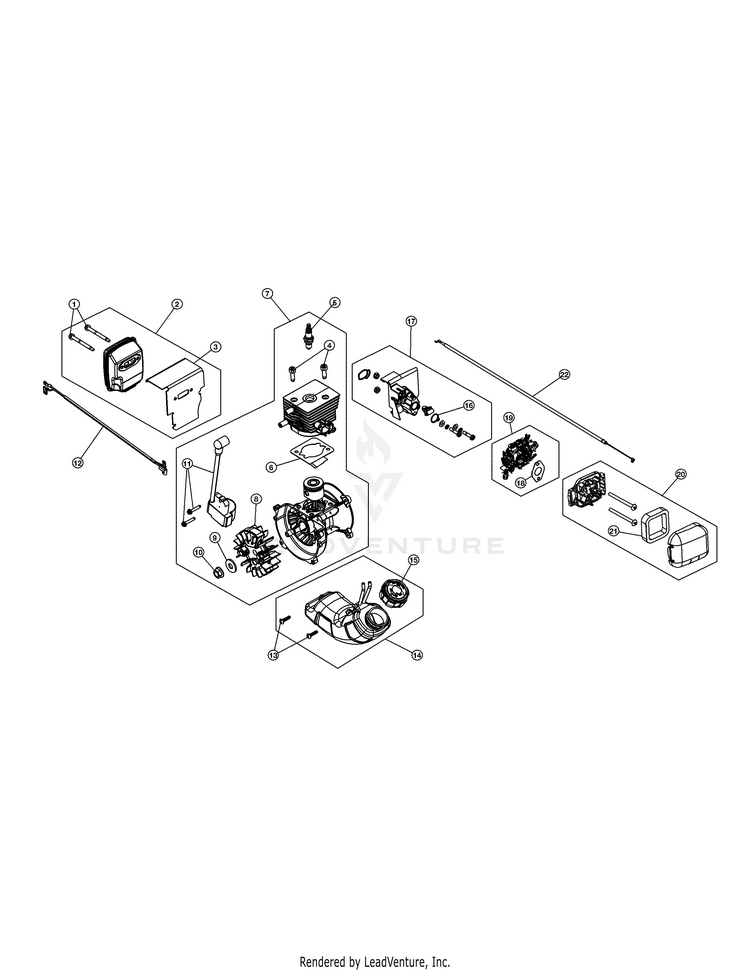

Engine Assembly

...
...
1
Muffler Screws MTD-710-04188A
...
2
Muffler Assembly (Incl Ref No. 1 & 3) MTD-753-06027
...
3
Muffler Gasket MTD-753-05946
...
4
Screw MTD-710-04715
...
5
Spark Plug MTD-753-06847
...
6
Cylinder Gasket MTD-753-06252
...
7
Shortblock Assembly (Incl Ref No. 4-6 & 8-11) MTD-753-06687
...
8
Flywheel Assembly MTD-753-06175
...
9
Washer MTD-736-04107
...
10
Nut MTD-712-04137
...
11
Module Assembly MTD-753-06443
...
12
Lead Wire MTD-753-05949
...
13
Screw MTD-710-04194
...
14
Fuel Tank Assembly (Incl Ref No. 13 & 15) MTD-753-06720
...
15
Fuel Cap MTD-791-182529
...
16
Insulator Gasket MTD-753-06185
...
17
Insulator Assembly (Incl Ref No. 16) MTD-753-06189
...
18
Carburetor Gasket MTD-753-06253
...
19
Carburetor Assembly (Incl Ref No. 18) MTD-753-06442
...
20
Aircleaner Assembly (Incl Ref No. 21) MTD-753-05725
...
21
Air Filter MTD-791-181757
...
22
Throttle Cable MTD-753-06690

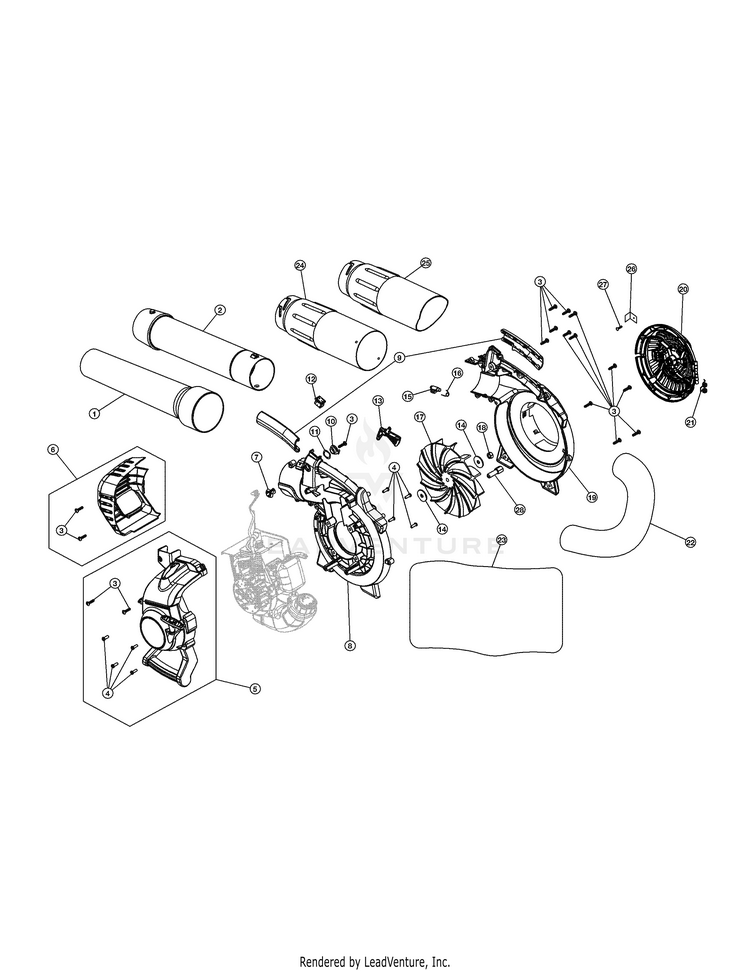

General Assembly

...
...
1
Lower Tube MTD-753-05937
...
2
Upper Tube MTD-753-05936
...
3
Screw MTD-710-04194
...
4
SCREW:10-32X.5 MTD-1964
...
5
STARTER HOUSING ASSEMBLY (Incl Ref No. 3 & 4) MTD-753-06697
...
6
MUFFLER COVER (Incl Ref No. 3) MTD-753-06694
...
7
Outer Trigger Lock MTD-753-05932
...
8
Impeller Housing MTD-753-06693
...
9
Handle Grips MTD-753-06711
...
10
Inner Trigger Lock MTD-753-05924
...
11
WAVE WASHER MTD-736-04353
...
12
Switch MTD-791-182405
...
13
THROTTLE TRIGGER MTD-753-05930
...
14
Washer MTD-753-05928
...
15
Latch Tube MTD-753-05926
...
16
Latch Spring MTD-753-05939
...
17
Impeller MTD-753-05929
...
18
Nut MTD-912-0237
...
19
Impeller Housing MTD-753-06679
...
20
Intake Cover MTD-753-06699
...
21
Spring MTD-753-05918
...
22
Elbow MTD-753-06658
...
23
Bag MTD-753-06659
...
24
Upper Vac Tube MTD-753-06660
...
25
Lower Vac Tube MTD-791-180467
...
26
Door Lock MTD-753-06696
...
27
Screw, 10-9 x .50 MTD-1755
...
28
Adapter MTD-753-06700
...
...
...
...
...
