Craftsman 41AR4BPG799 (316.794800) Gas Blower

Model: 41AR4BPG799 (316.794800)

Save
 Part Not Listed?Part Not Listed?
product name

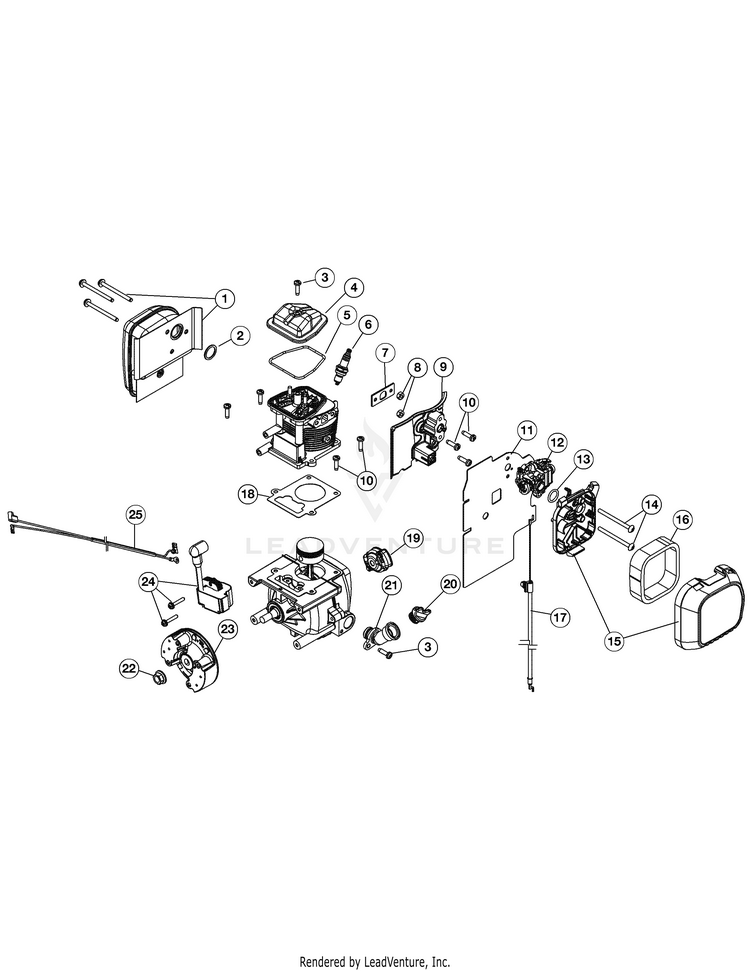

Engine Assembly

...
...
1
Muffler Assembly (Incl. Ref. No. 2) MTD-753-05669
...
2
Muffler Gasket MTD-753-05670
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
Rocker Cover MTD-753-05671
...
5
Rocker Cover O-Ring MTD-753-05672
...
6
Spark Plug MTD-794-00082
...
7
Insulator Gasket MTD-753-05673
...
8
Nut MTD-712-04099
...
9
Insulator MTD-753-05674
...
10
SCREW, M5 X18 MTD-9052-1
...
11
Carburetor Gasket MTD-753-05672
...
12
CARBURETOR W/GASKET AND INSULATOR MTD-753-08025A
...
13
Carburetor O-Ring MTD-791-181751
...
14
Screw MTD-710-04517
...
15
AIR CLEANER ASSEMBLY (Incl. Ref. No.16) MTD-753-05711
...
16
Air Filter MTD-753-05677
...
17
THROTTLE CABLE MTD-753-05679
...
18
Cylinder Gasket MTD-753-05681
...
19
PAWL ASSEMBLY 26CC MTD-753-05635
...
20
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
21
OIL TUBE ASM AC4 NLAUD (Incl. Ref. No.3) MTD-753-05682
...
22
Nut MTD-712-04137
...
23
Flywheel Asssembly MTD-753-05688
...
24
Module Assembly MTD-753-05301
...
25
Lead Wire MTD-753-05690
...
xx
Short Block Assembly (Not Shown) MTD-753-05694
...
xx
SPARK ARRESTER (Not Shown) MTD-753-05297

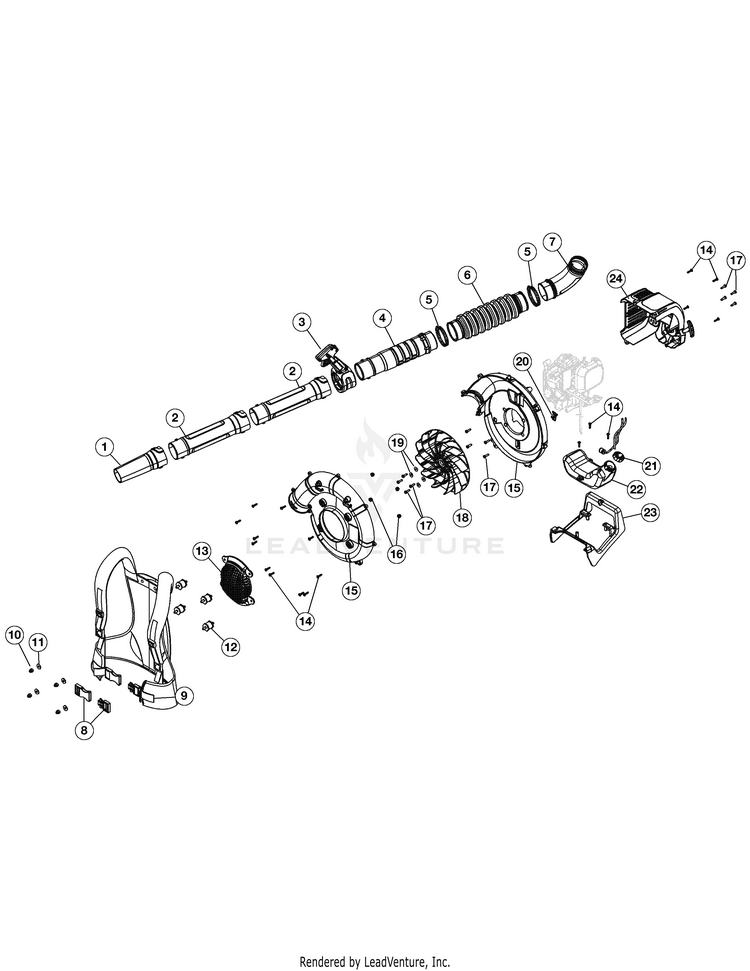

General Assembly

...
...
1
Nozzle MTD-753-06000
...
2
KIT TUBE ASSEMBLY W MTD-753-05638
...
3
THROTTLE GRIP ASSEMBLY MTD-753-05652
...
4
TUBE UPPER BKPK MTD-753-05639
...
5
Clamp MTD-726-04080
...
6
Flex Tube MTD-753-05641
...
7
TUBE ELBOW BKPK MTD-753-05642
...
8
Harness Clip MTD-731-06191
...
9
Harness (Incl. Ref. No. 8) MTD-753-05645
...
10
Acorn Lock Nut 1/4-20 MTD-712-0442
...
11
Washer MTD-750-04929
...
12
Insulator Mount MTD-753-05648
...
13
Intake Cover MTD-753-05649
...
14
Screw MTD-710-04194
...
15
Impeller Housing Assembly MTD-753-05658
...
16
Hex Lock Nut MTD-712-0324
...
17
SCREW, M5 X18 MTD-9052-1
...
18
IMPELLER BKPK (Incl. Ref. No. 17 & 19) MTD-753-05989
...
19
Washer MTD-791-182409
...
20
Throttle Retaining Clip MTD-731-06074
...
21
Fuel Cap MTD-753-05289
...
22
FUEL TANK ASSEMBLY BKP (Incl. Ref. No. 21) MTD-753-05662
...
23
Stand MTD-753-05663
...
24
Engine Cover Assembly MTD-753-06654
...
...
...
...
...
