Craftsman 41AR322G799 (316.794990) Gas Blower

Model: 41AR322G799 (316.794990)

Save
 Part Not Listed?Part Not Listed?
product name

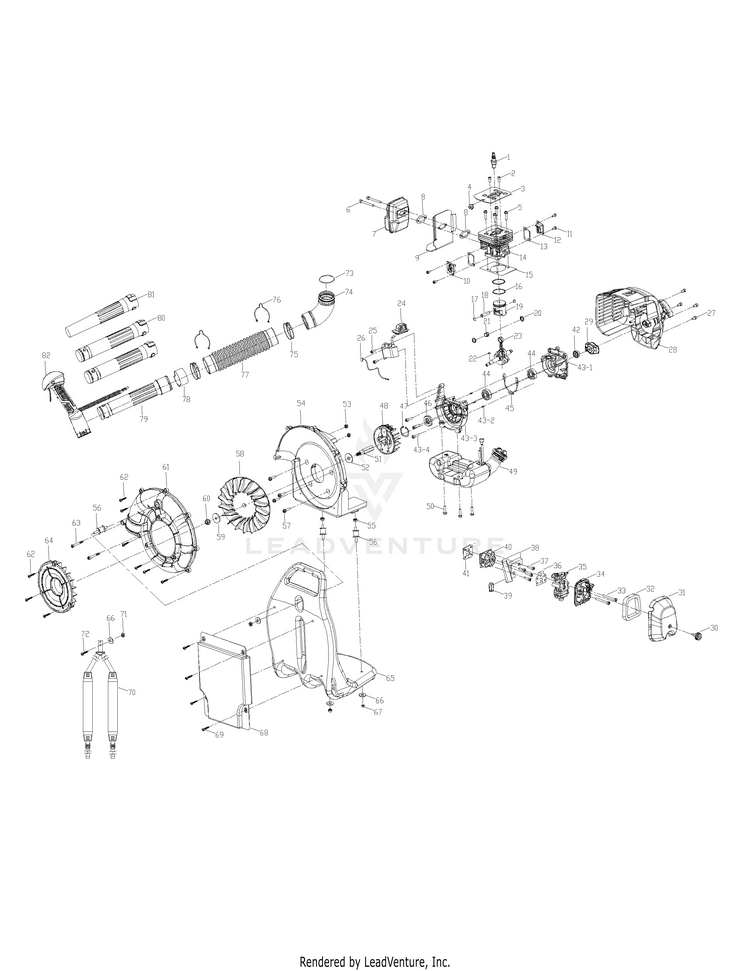

General Assembly

...
...
1
SPARK PLUG MTD-MC-9295-310501
...
2
SCREW MTD-MC-9SGEB-05-10
...
3
PLATE:SPARK MTD-MC-9211-334502
...
4
GROMMET MTD-MC-9012-330301
...
5
SCREW MTD-MC-9SRCB-05-22
...
6
SCREW MTD-MC-9SXMBJ05-50
...
7
MFLR ASSEMBLY MTD-MC-9228-334503
...
8
GASK:MFLR MTD-MC-9014-GP0102
...
9
PLATE:MFLR MTD-MC-9211-334501
...
10
COVER:FLYWL SIDE MTD-MC-9017-334501
...
11
SCREW MTD-MC-9SGEB-04-10
...
12
COVER-STARTER SIDE MTD-MC-9017-334502
...
13
GASKET MTD-MC-9014-334507
...
14
CYLINDER MTD-MC-9292-334501F
...
15
GASK MTD-MC-9014-334501
...
16
PISTON RING MTD-MC-9189-334501
...
17
CIRCLIP MTD-MC-9131-334501
...
18
PIN:PSTN MTD-MC-9115-334501
...
19
PISTON MTD-MC-9290-334501
...
20
COVER:AXIS MTD-MC-9067-334501
...
21
NEEDLE BEARING MTD-MC-9NR-KV9129.8
...
22
KEY WOODRU MTD-MC-6221-830301
...
23
CRANK ASSEMBLY MTD-MC-9228-334502
...
24
IGNITION COIL MTD-MC-9288-320601-CH
...
25
SCREW MTD-MC-9SRCB-05-20
...
26
COIL WIRE MTD-MC-9010-332102
...
27
SCREW MTD-MC-9SGKB-05-12.5
...
28
HOUSING ASSEMBLY ST MTD-MC-9228-320602
...
29
PAWL ASSEMBLY MTD-MC-9228-MD0107
...
30
COVER-FILTER W/ KN MTD-MC-9228-334513
...
31
COVER-FILTER W/ KN MTD-MC-9228-334513
...
32
AIR FILTER MTD-MC-9183-334501
...
33
SCREW MTD-MC-9SGEB-05-52
...
34
ASSEMBLY FILTER MTD-MC-9228-334511
...
35
CARB MTD-MC-9287-334501
...
36
GASKET CAR MTD-MC-9014-334505
...
37
SCREW MTD-MC-9SKKB-05-19
...
38
PLATE MTD-MC-9211-334503
...
39
GROM MTD-MC-9012-334501
...
40
INSULATOR MTD-MC-9072-334501
...
41
GASKET INS MTD-MC-9014-334506
...
42
OIL SEAL MTD-MC-9157-332101
...
43
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-1
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-2
PIN MTD-MC-9PC03-08
...
43-3
ASSEMBLY:CRANKCASE MTD-MC-9228-334501
...
43-4
SCREW MTD-MC-9SGEB-05-20
...
44
BEARING MTD-MC-9DB-620101
...
45
GASK CRCAS MTD-MC-9014-334502
...
46
SEAL MTD-MC-9157-334501
...
47
RING:C MTD-MC-9CB-32
...
48
FLYWHEEL MTD-MC-9169-334501
...
49
FUEL TANK ASS'Y MTD-MC-9228-334506
...
50
SCREW MTD-MC-9SKKBY05-18
...
51
CONNECT AX MTD-MC-9127-320601
...
52
WASHER MTD-MC-9WFZ-12.1-30
...
53
NUT MTD-MC-6NGZ-05
...
54
SCREW HOUSING MTD-MC-9038-320601
...
55
NUT MTD-MC-6NDE-06
...
56
RUBBER:ISOLATING MTD-MC-9012-320601
...
57
SCREW MTD-MC-9SRCBM05-30
...
58
IMPELLER MTD-MC-9151-320601
...
59
WASHER MTD-MC-9WFB-8.1-30
...
60
NUT MTD-MC-9NAC-08
...
61
HOUSING-SCR FRAME MTD-MC-9038-320602
...
62
SCREW MTD-710-04232
...
63
SCREW MTD-MC-9SRCB-05-75
...
64
COVER MTD-MC-9017-320601
...
65
HOUSING-SCR FRAME MTD-MC-9038-320602
...
66
WASHER MTD-MC-6WFB-06-18
...
67
NUT MTD-MC-6NGB-06
...
68
CUSHION:BACK MTD-MC-9014-320601
...
69
RIVET RIBBED MTD-MC-9RGP7.14-16.27
...
70
HARNESS MTD-MC-9149-320601
...
71
NUT MTD-MC-9NHB-06
...
72
SCREW MTD-MC-9SKKB-06-15
...
73
O RING MTD-MC-9076-320601
...
74
TUBE BLO E MTD-MC-9186-320601
...
75
HOSE CLAMP MTD-MC-9036-320601
...
76
CLAMP:WIRE MTD-MC-9036-320602
...
77
TUBE:BLO:FLEX MTD-MC-9186-320602
...
78
ACTIVE RING MTD-MC-9189-320601
...
79
BASE PIPE MTD-MC-9186-320605
...
80
BLOWER TUBE MID MTD-MC-9186-320604
...
81
TUBE:BLOWE MTD-MC-9186-320603
...
82
LVR ASSEMBLY T MTD-MC-9228-320603
...
...
...
...
...
