Craftsman 41AD760C799 (316.791870) Gas String Trimmer

Model: 41AD760C799 (316.791870)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

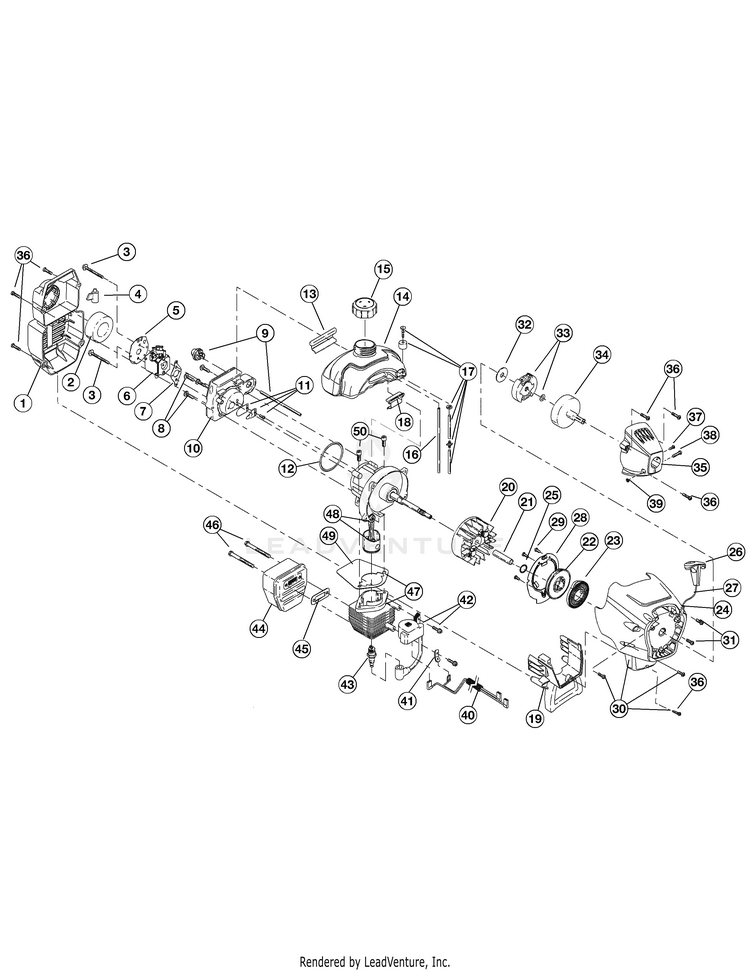

Engine Assembly

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LVR EXT RED MTD-792-10520-3
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 17) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
O-Ring MTD-721-04163
...
13
PAD, REAR MOUNT PAD MTD-791-612134
...
14
FUEL TANK ASSEMBLY WINES & CAP MTD-753-04606
...
15
ASSEMBLY, FUEL CAP (2-CYCLE RED) MTD-791-181803
...
16
Fuel Return Line MTD-791-181086
...
17
FUEL LINE ASSEMBLY MTD-753-05219
...
18
PAD, FRONT MOUNTING MTD-791-145308
...
19
EXT ASSEMBLY:SHRD MTD-753-05091
...
20
Flywheel Assembly MTD-753-05240
...
21
Spacer MTD-791-181525
...
22
START ASSEMBLY:S/A:PUL MTD-753-04823
...
23
Recoil Spring MTD-753-04286
...
24
GDE:ROPE:START MTD-753-1200
...
25
Palnut MTD-753-04288
...
26
Pull Handle MTD-631-04164B
...
27
Rope MTD-791-613103
...
28
PRESSURE PLATE MTD-753-05224
...
29
Screw, 10-9 x .50 MTD-1755
...
30
STARTER HOUSING ASSEMBLY (includes 22-29, 31 & 36) MTD-753-05049
...
31
SCREW:10-32X.5 MTD-1964
...
32
Washer MTD-9162-1
...
33
Starter Clutch Assembly MTD-753-05860
...
34
Clutch Drum Assembly MTD-791-153592
...
35
HOUSING ASSEMBLY-CLUTCH MTD-753-04497
...
36
Cover Screw MTD-791-181345
...
37
Anti-Rotation Screw MTD-791-182519
...
38
SCREW MTD-9689A
...
39
HEX NUT MTD-712-0161
...
40
WIRE:LEAD:RED/BK MTD-753-05025
...
41
TAB, GROUND MTD-791-611063
...
42
Module Assembly (includes 41) MTD-753-04336
...
43
Spark Plug MTD-791-610311B
...
44
MUFFLER ASM CAT NLAUD MTD-753-05169
...
45
Exhaust Gasket MTD-753-04619
...
46
Muffler Mounting Bolts MTD-710-04188A
...
47
Cylinder Assembly (includes 49 & 50) MTD-753-04814
...
48
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
49
Cylinder Gasket MTD-753-04182
...
50
Cylinder Bolt MTD-791-182723
...
xx
SPARK ARRESTER Not shown MTD-753-04925
...
xx
Piston Ring Set Not shown MTD-753-1209
...
xx
SHORT BLOCK Not shown (includes Crankcase, 20, 42, 43 & 47-50) MTD-753-05488
...
xx
Clutch Springs (Qty. 2) Not shown MTD-791-181599
...
...
...
...
...
