Craftsman 41AD730C799 (316.79115) Gas String Trimmer

Model: 41AD730C799 (316.79115)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

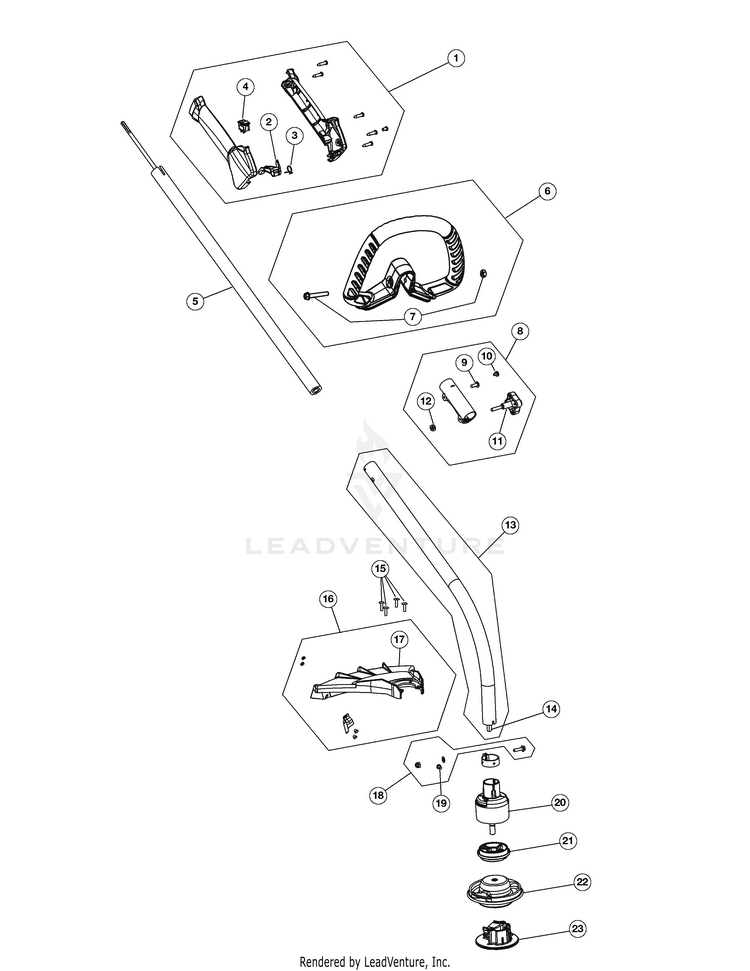

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Upper Drive Shaft Housing MTD-753-04344
...
6
Deluxe D-Handle Assembly (Incl. Ref No. 7) MTD-753-06039
...
7
Bolt MTD-710-3013
...
8
Click Link Coupler (Incl. Ref No. 9-12) MTD-753-1190
...
9
Bolt MTD-791-181617
...
10
Screw MTD-791-182057
...
11
CLICK LINK CLAMP MTD-697-00661-9
...
12
Nut MTD-712-04018A
...
13
Lower Drive Shaft Housing (Incl. Ref No. 14) MTD-791-182387
...
14
Lower Flexible Drive Shaft MTD-791-181852
...
15
SCREW, #10-24X.50 M MTD-791-181858
...
16
Blade Assembly MTD-753-05033
...
17
GUARD ASSEMBLY:W/BLADE MTD-753-05032
...
18
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
19
Anti-Rotation Screw MTD-791-145569
...
20
HOUSING ASSEMBLY:BUSH MTD-753-05050
...
21
ADAP:CS BOOM MTD-753-05034
...
22
Cutting Head Assembly MTD-753-05035
...
23
FIXED HEAD CAP MTD-731-05193
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
...
...
...
...
...
