Craftsman 41AD700G799 (316.791810) Gas String Trimmer

Model: 41AD700G799 (316.791810)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

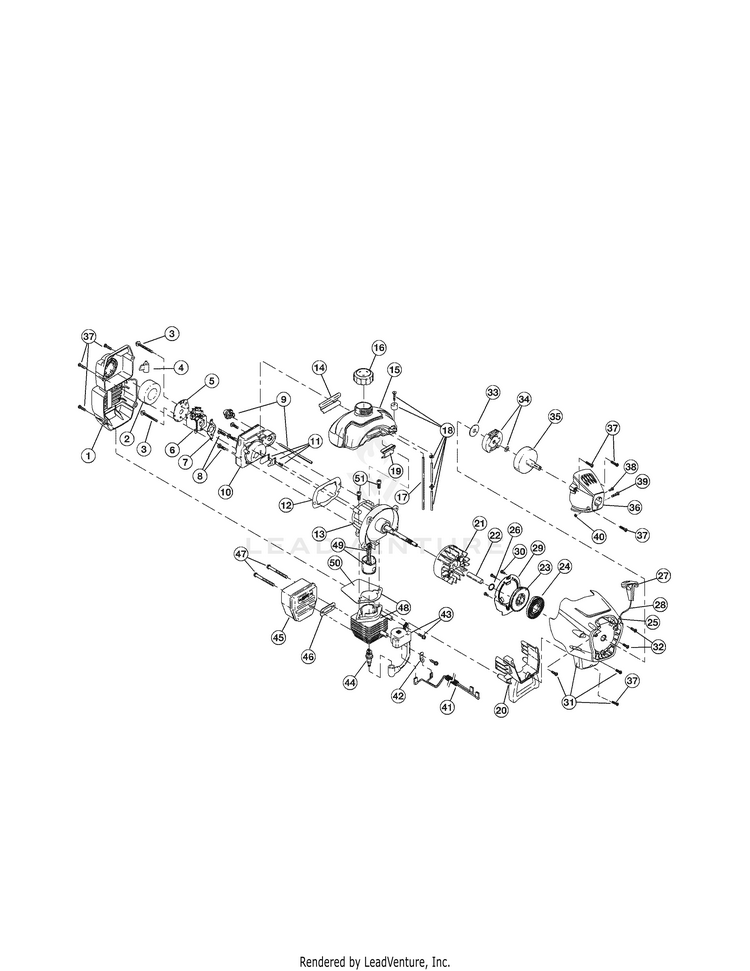

Engine Parts

...
...
1
COVER ASSEMBLY:AIRCL:MFLR MTD-753-04810
...
2
Air Cleaner Filter MTD-791-180350B
...
3
ASSEMBLY, CARBURETOR MO MTD-791-180351
...
4
CHOKE LEVER MTD-753-04227
...
5
PLATE ASSEMBLY:CHOKE:WV MTD-753-04419
...
6
Carburetor Assembly (includes 7 & 18) MTD-753-04338
...
7
CARBURETOR GASKET MTD-791P610675
...
8
SCREW, 10-24X.75 T-2 MTD-791-181860
...
9
Primer and Hose Assembly MTD-791-683974B
...
10
CARBURETOR MOUNT ASSEMBLY MTD-753-1196
...
11
REED VALVE ASSEMBLY MTD-791-684451
...
12
Carburetor Mount Gasket MTD-753-1208
...
13
CRANKCASE ASSEMBLY-SERVICE MTD-753-04401
...
14
PAD, REAR MOUNT PAD MTD-791-612134
...
15
FUEL TANK ASSEMBLY WINES & CAP MTD-753-04606
...
16
ASSEMBLY, FUEL CAP (2-CYCLE RED) MTD-791-181803
...
17
Fuel Return Line MTD-791-181086
...
18
FUEL LINE ASSEMBLY MTD-791-683398
...
19
PAD, FRONT MOUNTING MTD-791-145308
...
20
EXT-SHROUD W/HOLE MTD-753-04702
...
21
Flywheel Assembly MTD-753-05240
...
22
Spacer MTD-791-181525
...
23
START ASSEMBLY:S/A:PUL MTD-753-04823
...
24
Recoil Spring MTD-753-04286
...
25
GDE:ROPE:START MTD-753-1200
...
26
Palnut MTD-753-04288
...
27
Pull Handle MTD-631-04164B
...
28
Rope MTD-791-613103
...
29
PLATE:PRESSURE MTD-753-04417
...
30
Screw, 10-9 x .50 MTD-1755
...
31
STARTER HOUSING ASSEMBLY MTD-753-05049
...
32
SCREW:10-32X.5 MTD-1964
...
33
Washer MTD-9162-1
...
34
Starter Clutch Assembly MTD-753-05860
...
35
Clutch Drum Assembly MTD-791-153592
...
36
HOUSING ASSEMBLY-CLUTCH MTD-753-04497
...
37
Cover Screw MTD-791-181345
...
38
Anti-Rotation Screw MTD-791-182519
...
39
SCREW MTD-9689A
...
40
HEX NUT MTD-712-0161
...
41
WIRE:LEAD:RED/BK MTD-753-05025
...
42
TAB, GROUND MTD-791-611063
...
43
MODULE:CD IGN:3 SEC:- MTD-753-05012
...
44
Spark Plug MTD-791-610311B
...
45
MUFFLER ASM CAT NLAUD MTD-753-05169
...
46
Exhaust Gasket MTD-753-04619
...
47
Muffler Mounting Bolts MTD-710-04188A
...
48
Cylinder Assembly (includes 50 & 51) MTD-753-04814
...
49
PISTON ASSEMBLY:W/ROD/RIN MTD-753-04367
...
50
Cylinder Gasket MTD-753-04182
...
51
Cylinder Bolt MTD-791-182723
...
xx
SCREEN-SPA MTD-753-04689
...
xx
Piston Ring Set (NOT SHOWN) MTD-753-1209
...
xx
SHORT BLOCK MTD-753-04812
...
xx
Clutch Springs (Qty. 2) (NOT SHOWN) MTD-791-181599
...
...
...
...
...
