Craftsman 41AD700G799 (316.791810) Gas String Trimmer

Model: 41AD700G799 (316.791810)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

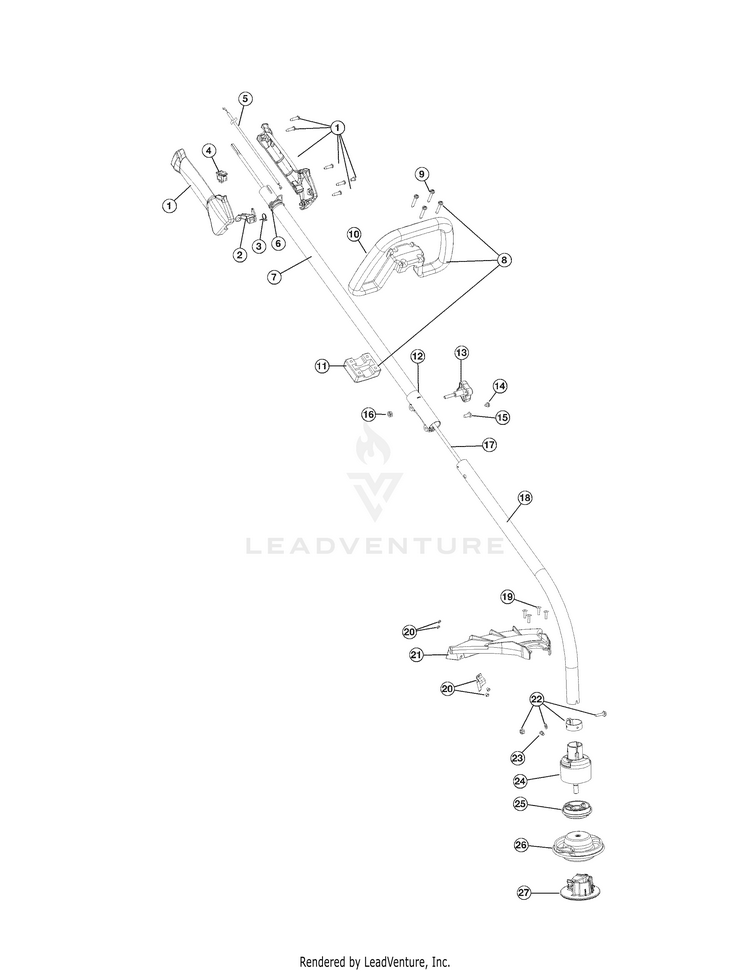

Boom & Trimmer Parts

...
...
1
Throttle Housing Assembly (includes 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-04405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Harness Clip MTD-791-610327
...
7
BOOM ASSEMBLY: MTD-753-05022
...
8
D-HANDLE A MTD-791-180869
...
9
Screw MTD-791-181070
...
10
HANDLE-LOOP MTD-791-182167
...
11
BASE-LOOP HANDLE MTD-791-182168
...
12
COUPLER ASSEMBLY:TWIST BOOM MTD-753-05029
...
13
CLICK LINK CLAMP MTD-697-00661-9
...
14
Screw MTD-791-182057
...
15
Bolt MTD-791-181617
...
16
Adjustment Knob Nut MTD-712-04018A
...
17
Flexible Drive Shaft MTD-753-05030
...
18
BOOM ASSEMBLY:TWIST:CS MTD-753-05031
...
19
SCREW, #10-24X.50 M MTD-791-181858
...
20
Blade Assembly MTD-753-05033
...
21
GUARD ASSEMBLY:W/BLADE MTD-753-05032
...
22
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
23
Anti-Rotation Screw MTD-791-145569
...
24
HOUSING ASSEMBLY:BUSH MTD-753-05050
...
25
ADAP:CS BOOM MTD-753-05034
...
26
Cutting Head Assembly MTD-753-05035
...
26
FIXED HEAD CAP MTD-731-05193
...
xx
EDGE GDE MTD-753-05039
...
...
...
...
...
