Craftsman 41AD616G799 (316.791990) Gas String Trimmer

Model: 41AD616G799 (316.791990)

Save
 Part Not Listed?Part Not Listed?
product name

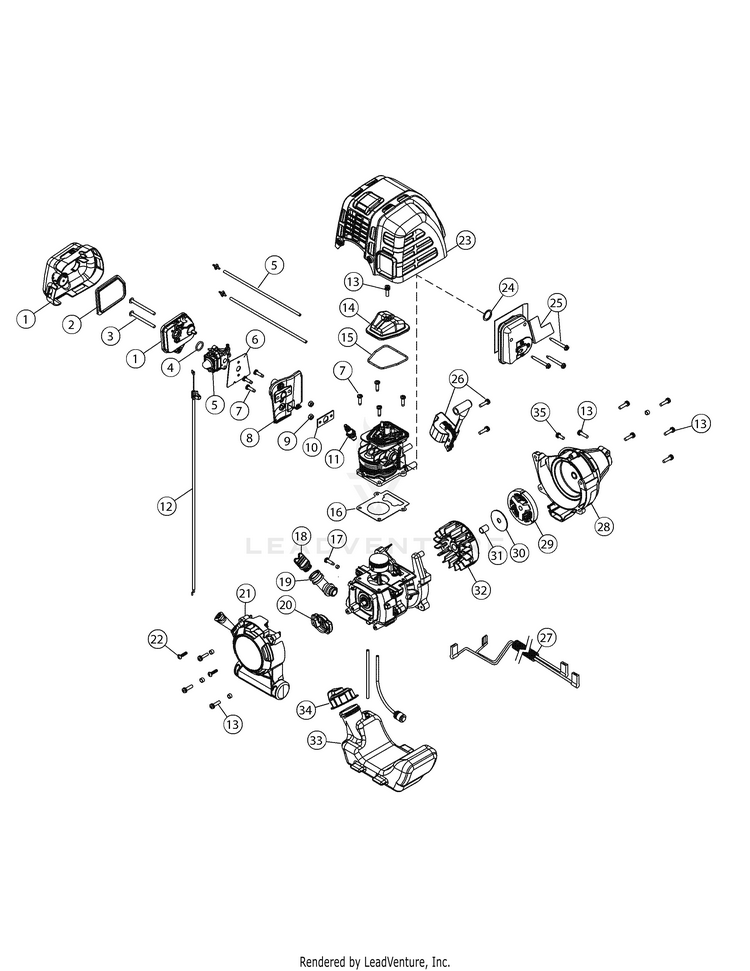

Engine Assembly

...
...
1
AIR CLEANER ASSEMBLY 4 CYCLE (Incl. Ref No. 2 & 3) MTD-753-05800
...
2
AIR FILTER MTD-753-05802
...
3
Screw MTD-710-04517
...
4
Carburetor O-Ring MTD-791-181751
...
5
CARB ASSEMBLY AC4 MTD-753-05845
...
6
GASKET CARB MTD-753-05803
...
7
SCREW, M5 X18 MTD-9052-1
...
8
INSULATOR MTD-753-05804
...
9
Nut MTD-712-04099
...
10
Insulator Gasket MTD-753-05673
...
11
Spark Plug MTD-794-00082
...
12
Throttle Cable MTD-753-05266
...
13
Screw MTD-710-04742A
...
14
Valve Cover MTD-753-05671
...
15
Valve O-Ring MTD-753-05672
...
16
Cylinder Gasket MTD-753-05681
...
17
SCREW M5X0.8 MTD-710-04604A
...
18
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
19
OIL FILL TUBE (Incl. Ref No 17) MTD-753-05806
...
20
PAWL ASSEMBLY 26CC MTD-753-05635
...
21
REAR COVER ASSEMBLY MTD-753-05808
...
22
Screw MTD-710-04194
...
23
ENGINE COVER AC4 YE MTD-753-05844
...
24
Muffler Gasket MTD-753-05670
...
25
MUFFLER W/HDW MTD-753-05810
...
26
Module Assembly MTD-753-05301
...
27
Lead Wires MTD-753-05264
...
28
CLUTCH HOUSING W/BEARING MTD-753-05811
...
29
CLUTCH MTD-753-05812
...
30
BLADE - 18" x 5/8" MTD-690-120-0086
...
31
Spacer MTD-753-05814
...
32
Flywheel (Incl. Ref No 34) MTD-753-05815
...
33
FUEL TANK ASSEMBLY MTD-753-05816
...
34
Fuel Cap MTD-753-1229
...
35
SCREW 10-24X.50 MTD-710-04394
...
xx
SHORT BLOCK (Not Shown) MTD-753-05817

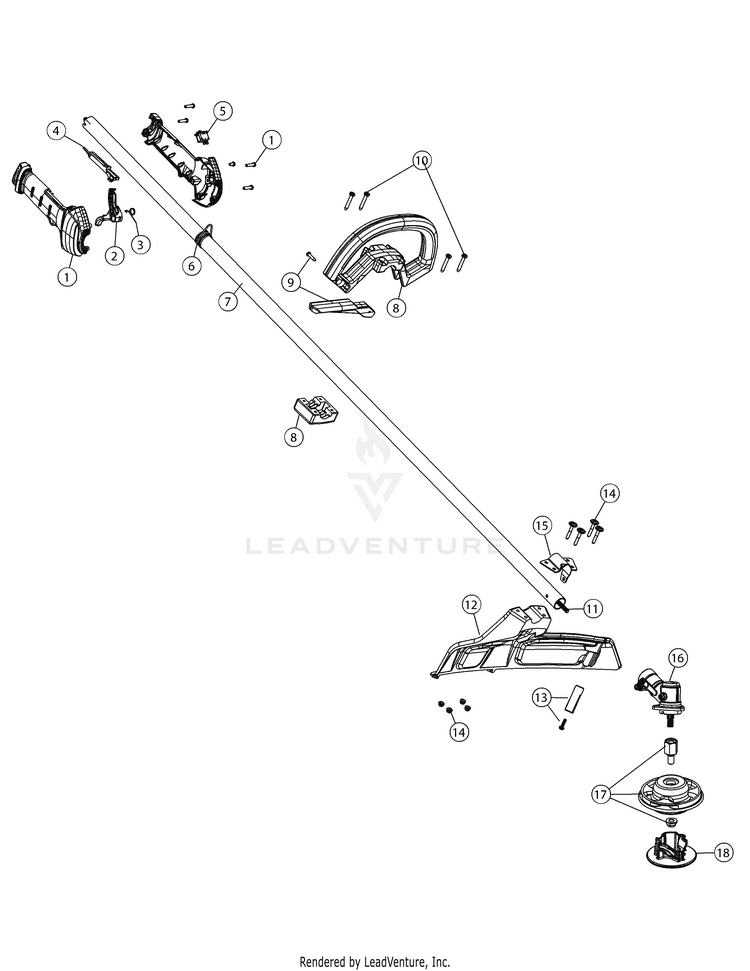

General Assembly

...
...
1
THROTTLE GRIP (Incl. Ref No.2-5) MTD-753-09645
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182673
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
DRIVE SHAFT HOUSING 59 MTD-753-05818
...
8
D-Handle Assembly (Incl. Ref No 9 & 10) MTD-753-05008
...
9
BARRIER BAR ASSEMBLY MTD-753-05295
...
10
Screw MTD-791-181070
...
11
DRIVE SHAFT SOLID MTD-753-05819
...
12
Shield Assembly (Incl. Ref No 13) MTD-753-05820
...
13
Blade Assembly MTD-753-05821
...
14
Guard Mounting Hardware MTD-753-05822
...
15
GUARD MOUNTING BRACKET MTD-753-05823
...
16
GEARBOX AC4 TRIM MTD-753-05824
...
17
HEAD ASSEMBLY W/HDW DE MTD-753-05779
...
18
Cutting Head Cap MTD-753-05780
...
xx
LOCKING ROD TOOL (Not Shown) MTD-753-05842
...
xx
TUBE:LINE:SEARS DE (Not Shown) MTD-697-00368
...
...
...
...
...
