Craftsman 41AD604G799 (316.792020) Gas String Trimmer

Model: 41AD604G799 (316.792020)

Save
 Part Not Listed?Part Not Listed?
product name

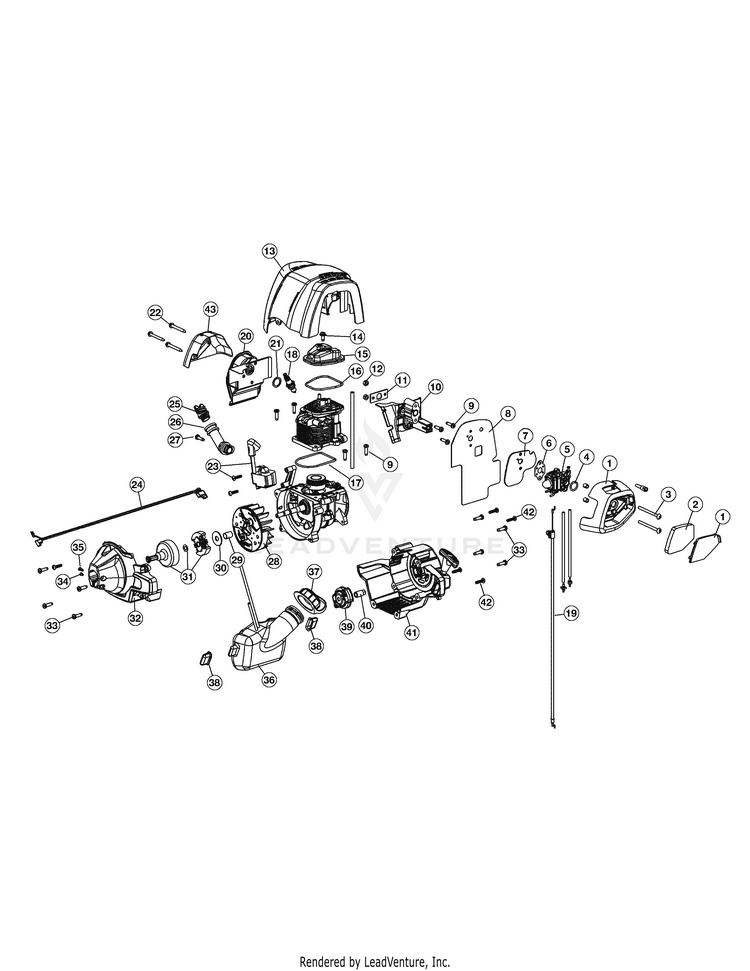

Engine Assembly

...
...
1
AIR CLEANER ASSEMBLY (Incl. Ref No. 2 & 3) MTD-753-06084
...
2
Air Filter MTD-753-06085
...
3
Screw MTD-710-04517
...
4
Carburetor O-Ring MTD-791-181751
...
5
Carburetor Assembly Does not Incl. Fuel Line, order separately MTD-753-06083
...
6
Carburetor Gasket MTD-791-181709
...
7
HEAT SINK MTD-753-06103
...
8
Carburetor Baffle MTD-753-06082
...
9
SCREW, M5 X18 MTD-9052-1
...
10
Insulator MTD-753-05904
...
11
Insulator Gasket MTD-753-05673
...
12
Nut MTD-712-04099
...
13
ENGINE COVER TOP MTD-753-06097
...
14
Screw MTD-791-181025
...
15
Valve Cover MTD-753-05901
...
16
Valve O-Ring MTD-753-05902
...
17
Cylinder O-Ring MTD-753-05910
...
18
Spark Plug MTD-794-00082
...
19
THROTTLE CABLE MTD-753-06081
...
20
MUFFLER ASSEMBLY AC5 MTD-753-06080
...
21
Muffler Gasket MTD-753-05244
...
22
Screw MTD-710-04809
...
23
Module Assembly MTD-753-05907
...
24
LEAD WIRES MTD-753-06086
...
25
Oil Plug (Incl Ref No. 9) MTD-753-05408
...
26
OIL FILL TUBE (Incl. Ref No. 27) MTD-753-06087
...
27
SCREW M5X0.8 MTD-710-04604A
...
28
Flywheel MTD-753-05815
...
29
Spacer MTD-753-05814
...
30
Clutch Washer MTD-9162-1
...
31
Clutch Assembly MTD-753-05860
...
32
Clutch Cover Assembly MTD-753-06094
...
33
SCREW M5X0.8 MTD-710-04604A
...
34
Anti-rotation Screw MTD-791-182519
...
35
SCREW:CLMPNG W/NUT MTD-753-04291
...
36
Fuel Tank (Incl. Ref No. 37) MTD-753-06093
...
37
Fuel Cap MTD-753-05289
...
38
Fuel Tank Pad MTD-753-05259
...
39
Pawl Assembly MTD-753-06091
...
40
Electric Start Adapter MTD-753-06104
...
41
STARTER HOUSING ASSEMBLY MTD-753-06096
...
42
Screw MTD-710-04194
...
43
Muffler Shield MTD-753-06101
...
xx
SHORT BLOCK Not Shown MTD-753-06088

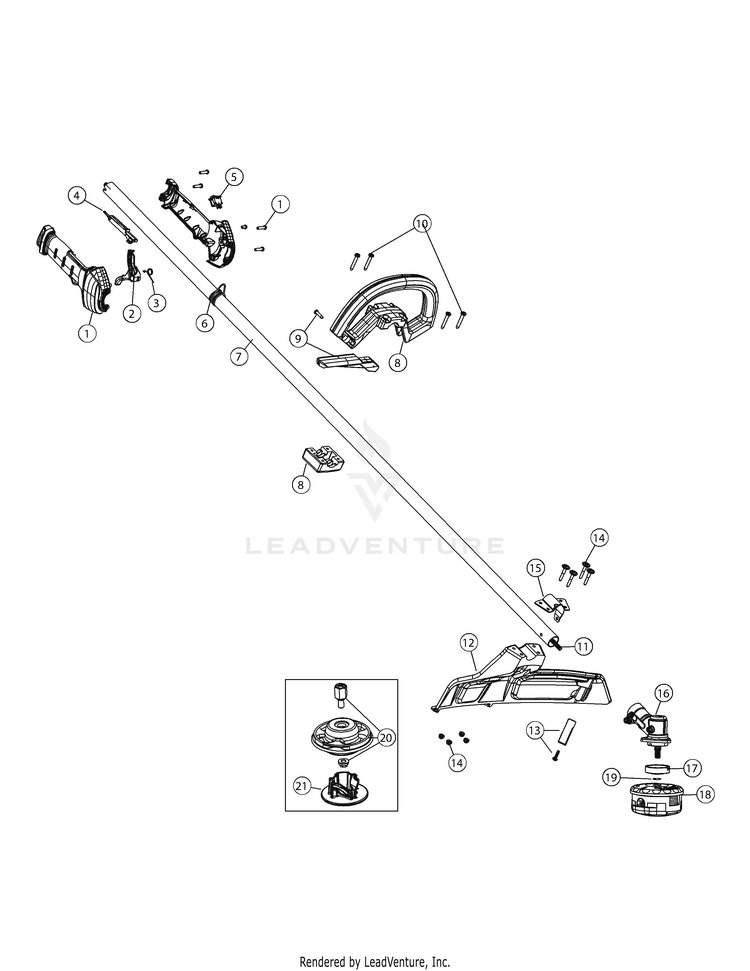

General Assembly

...
...
1
THROTTLE GRIP (Incl. Ref No. 2-5) MTD-753-09645
...
2
Throttle Trigger MTD-731-04970B-10
...
3
TRIGGER SPRING MTD-753-05007
...
4
LOCK OUT LEVER MTD-731-04971B-10
...
5
Switch MTD-791-182405
...
6
SHOULDER STRAP CLAMP MTD-4301A
...
6
Shoulder Strap Clip MTD-791-610327
...
7
DRIVE SHAFT HOUSING MTD-753-05474
...
8
D-Handle Assembly (Incl. Ref No. 9 & 10) MTD-753-05008
...
9
BARRIER BAR ASSEMBLY MTD-753-05295
...
10
Screw MTD-791-181070
...
11
FLEX SHAFT 55.6" MTD-753-06098
...
12
Shield Assembly (Incl. Ref No. 13) MTD-753-05820
...
13
Blade Assembly MTD-753-05821
...
14
Screw MTD-753-05822
...
15
GUARD MOUNT BRACKET MTD-753-06089
...
16
Gearbox MTD-791-182193
...
17
Gearbox Spacer MTD-791-182196
...
18
Cutting Head Assembly MTD-753-06102
...
18
Kit, Speed Spool Not shown, Kit contains head cover, spring and 4 eyelets for 753-06102 assembly. MTD-753-06149
...
19
Palnut MTD-753-04348
...
20
HEAD ASSEMBLY W/HDW DE MTD-753-05779
...
21
Glide Plate MTD-753-05780
...
xx
TUBE:LINE:SEARS DE Accessory, Not shown MTD-697-00368
...
...
...
...
...
