Craftsman 41AD588C799 (316.791930) Gas String Trimmer

Model: 41AD588C799 (316.791930)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

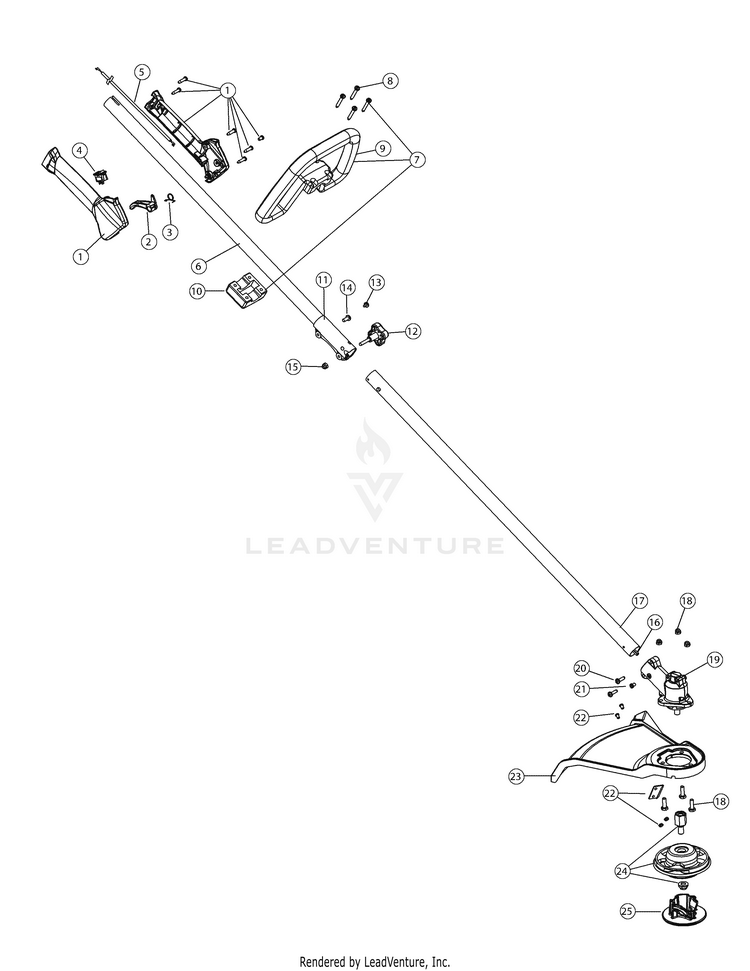

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Assembly MTD-753-04236
...
7
D-HANDLE A (Incl. Ref No. 8-10) MTD-791-180869
...
8
Screw MTD-791-181070
...
9
HANDLE-LOOP MTD-791-182167
...
10
BASE-LOOP HANDLE MTD-791-182168
...
11
Split Boom Coupler (Incl. Ref No. 12-15) MTD-753-1190
...
12
CLICK LINK CLAMP (Incl. Ref No. 15) MTD-697-00661-9
...
13
Screw MTD-791-182057
...
14
Bolt MTD-791-181617
...
15
Adjustment Knob Nut MTD-712-04018A
...
16
LOWER DRIVE SHAFT MTD-753-05267
...
17
Lower Shaft Housing MTD-753-04504
...
18
Shield Mount Screw Assembly MTD-791-182200
...
19
Gearbox Assembly (Incl. Ref No. 20 & 21) MTD-791-182193
...
20
SCREW #10-24X11/16 T-25 MTD-791-182195
...
21
Anti-Rotation Screw MTD-791-182519
...
22
GUARD ASSEMBLY W/BLADE MTD-753-05807
...
23
Shield Assembly (Incl. Ref No. 22) MTD-791-182189
...
24
HEAD ASSEMBLY W/HDW DE MTD-753-05779
...
25
Cutting Head Cap MTD-753-05780
...
xx
Spacer Not Shown MTD-791-182196
...
xx
TUBE:LINE:SEARS DE Not Shown MTD-697-00368
...
...
...
...
...
