Craftsman 41AD588C799 (316.791930) Gas String Trimmer

Model: 41AD588C799 (316.791930)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

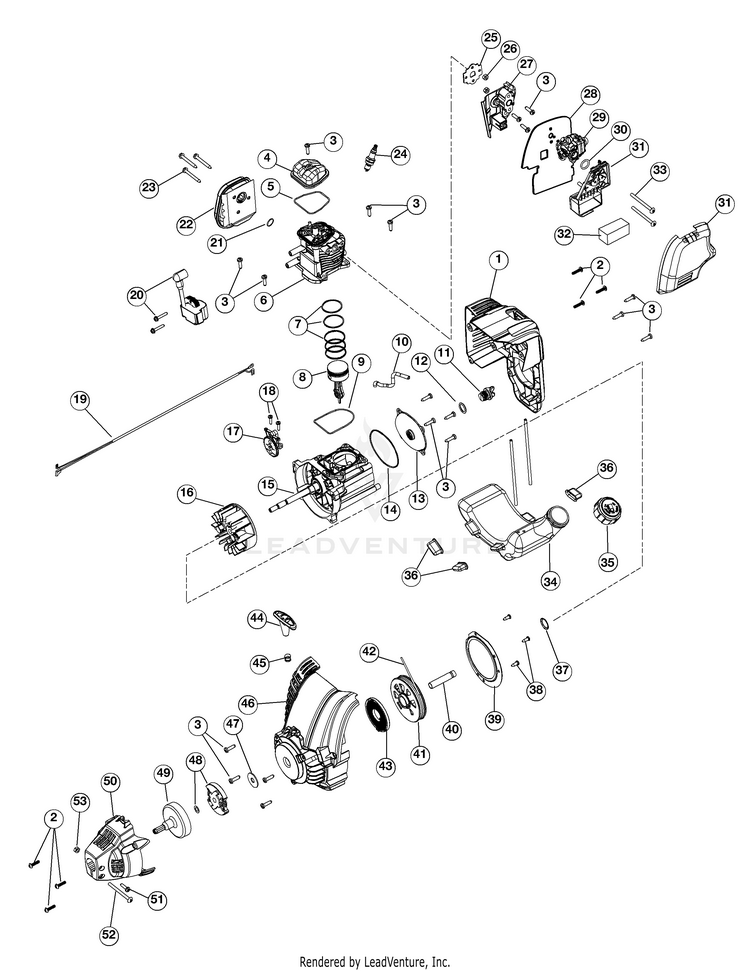

Engine Assembly

...
...
1
ENGINE COVER RR EST (Incl. Ref No. 2 & 3) MTD-753-06113
...
2
Cover Screw MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY (Incl. Ref No. 3, 5 & 9) MTD-753-05228
...
7
PISTON RING ASSEMBLY MTD-753-05229
...
8
PISTON ASSEMBLY (Incl. Ref No. 7) MTD-753-05230
...
9
Cylinder O-Ring MTD-753-05232
...
10
Breather Hose MTD-791-182379
...
11
Oil Plug (Incl. Ref No. 12) MTD-753-05408
...
12
Oil Plug O-Ring MTD-791-182290
...
13
CRANKCASE COVER MTD-841-020721S
...
14
Crankcase Cover O-ring MTD-753-05238
...
15
CRANKCASE ASSEMBLY AC3 (Incl. Ref No. 9, 10 & 14) MTD-753-06110
...
16
Flywheel Assembly MTD-753-05240
...
17
CAM BRACKET ASSEMBLY (Incl. Ref No. 18) MTD-753-05241
...
18
CAM SCREW 8-32X.625 MTD-710-04584
...
19
Lead Wires MTD-753-05264
...
20
Module Assembly MTD-753-05447
...
21
Muffler Gasket MTD-753-05244
...
22
Muffler Assembly (Incl. Ref No. 21 & 23) MTD-753-05245
...
23
Screw MTD-710-04809
...
24
Spark Plug MTD-794-00082
...
25
GASKET/INSULATOR MTD-753-05247
...
26
Nut MTD-712-04099
...
27
Insulator MTD-753-05249
...
28
Carburetor Gasket MTD-753-05366
...
29
CARBURETOR WITH PRIMER MTD-753-05440
...
30
O-Ring MTD-791-181751
...
31
AIR CLEANER ASSEMBLY (Incl. Ref No. 32) MTD-753-05831
...
32
Air Filter MTD-753-05254
...
33
Screw MTD-710-04517
...
34
Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 35) MTD-753-05256
...
35
Fuel Cap MTD-753-1229
...
36
Fuel Tank Pads MTD-753-05259
...
37
PUSH NUT MTD-712-04096
...
38
Screw, 10-9 x .50 MTD-1755
...
39
PLATE:PRESS:4 CY:AST (Incl. Ref No. 38) MTD-753-05074
...
40
Spacer MTD-750-04434
...
41
STARTER PULLEY ASSEMBLY (Incl. Ref No. 42 & 43) MTD-753-05833
...
42
Rope MTD-791-613103
...
43
Recoil Spring MTD-753-04286
...
44
Pull Handle MTD-631-04164B
...
45
Rope Guide MTD-791-611061
...
46
STARTER HOUSING ASSEMBLY (Incl. 3, 37-39 & 41-45) MTD-753-05832
...
47
Washer MTD-9162-1
...
48
Clutch & Clutch Washer MTD-753-1238
...
49
Clutch Drum MTD-791-153592
...
50
Clutch Cover (Incl. Ref No. 2) MTD-753-05263
...
51
Anti-Rotation Screw MTD-791-182519
...
52
SCREW MTD-9689A
...
53
Nut MTD-712-0161
...
xx
SPARK ARRESTER Not Shown MTD-753-05297
...
xx
SHORT BLOCK Not Shown (Incl. Ref No. 3-12, 14, 15, 17 & 24) MTD-753-06114
...
...
...
...
...
