Craftsman 41AD546G799 (316.791910) Gas String Trimmer

Model: 41AD546G799 (316.791910)

Save
 Part Not Listed?Part Not Listed?
product name

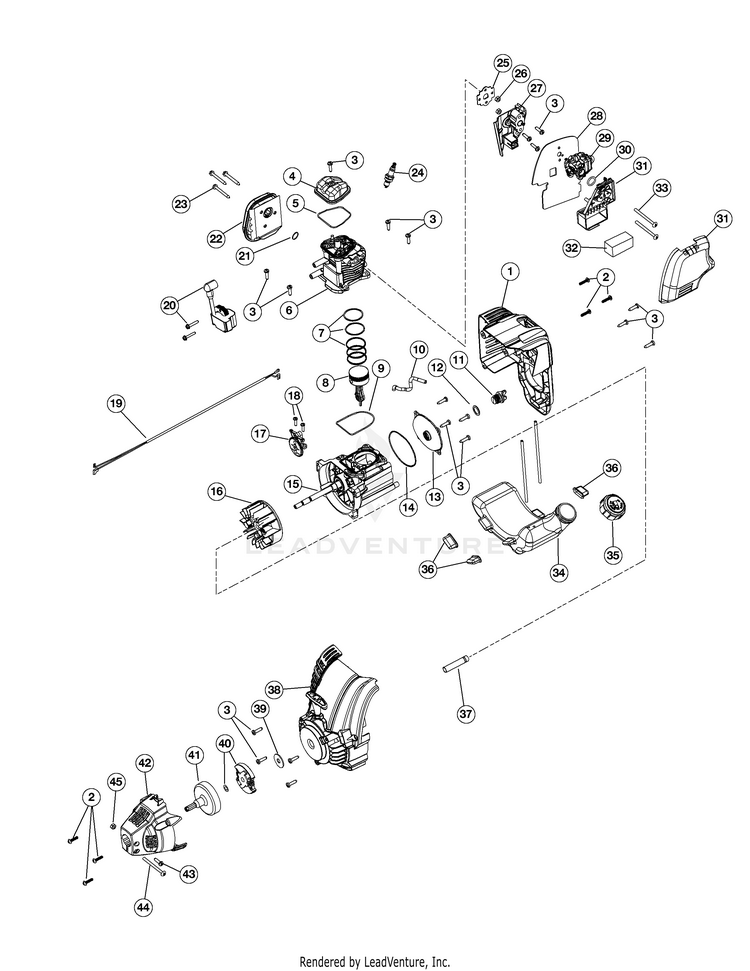

Engine Assembly

...
...
1
ENGINE COVER ASSEMBLY (Incl. Ref No. 2 & 3) MTD-753-05206
...
2
Screw MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY (Incl. Ref No. 3, 5 & 9) MTD-753-05228
...
7
PISTON RING ASSEMBLY MTD-753-05229
...
8
PISTON ASSEMBLY (Incl. Ref No. 7) MTD-753-05230
...
9
Cylinder O-Ring MTD-753-05232
...
10
Breather Hose MTD-791-182379
...
11
Oil Plug (Incl Ref No. 9) (Incl. Ref No. 12) MTD-753-05408
...
12
Oil Plug O-Ring MTD-791-182290
...
13
CRANKCASE COVER MTD-753-05237
...
14
Crankcase Cover O-ring MTD-753-05238
...
15
CRANKCASE ASSEMBLY (Incl. Ref No. 9, 10 & 14) MTD-753-05325
...
16
Flywheel Assembly MTD-753-05240
...
17
CAM BRACKET ASSEMBLY (Incl. Ref No. 18) MTD-753-05241
...
18
CAM SCREW 8-32X.625 MTD-710-04584
...
19
Lead Wires MTD-753-05264
...
20
Module Assembly MTD-753-05301
...
21
Muffler Gasket MTD-753-05244
...
22
Muffler Assembly (Incl. Ref No. 21 & 23) MTD-753-05245
...
23
Screw MTD-710-04809
...
24
Spark Plug MTD-794-00082
...
25
GASKET/INSULATOR MTD-753-05247
...
26
Nut MTD-712-04099
...
27
Insulator MTD-753-05249
...
28
Carburetor Gasket MTD-753-05366
...
29
Carburetor w/Primer MTD-753-05251
...
30
O-Ring MTD-791-181751
...
31
AIR CLEANER COVER ASSEMBLY (Incl. Ref No. 32) MTD-753-05302
...
32
Air Filter MTD-753-05254
...
33
Screw MTD-710-04517
...
34
Fuel Tank Assembly w/Fuel Lines (Incl. Ref No. 35) MTD-753-05256
...
35
Fuel Cap MTD-753-1229
...
36
Fuel Tank Pads MTD-753-05259
...
37
Spacer MTD-750-04434
...
38
Starter Housing Assembly (Incl. Ref No. 3 & 37) MTD-753-05832
...
39
Washer MTD-9162-1
...
40
Clutch & Clutch Washer MTD-753-1238
...
41
Clutch Drum MTD-791-153592
...
42
Clutch Cover (Incl. Ref No. 2) MTD-753-05263
...
43
Anti-Rotation Screw MTD-791-182519
...
44
SCREW MTD-9689A
...
45
HEX NUT MTD-712-0161
...
xx
SPARK ARRESTER Not shown MTD-753-05297
...
xx
SHORT BLOCK (Incl. Ref No. 3-12, 14, 15, 17 & 24) Not shown MTD-753-05324A

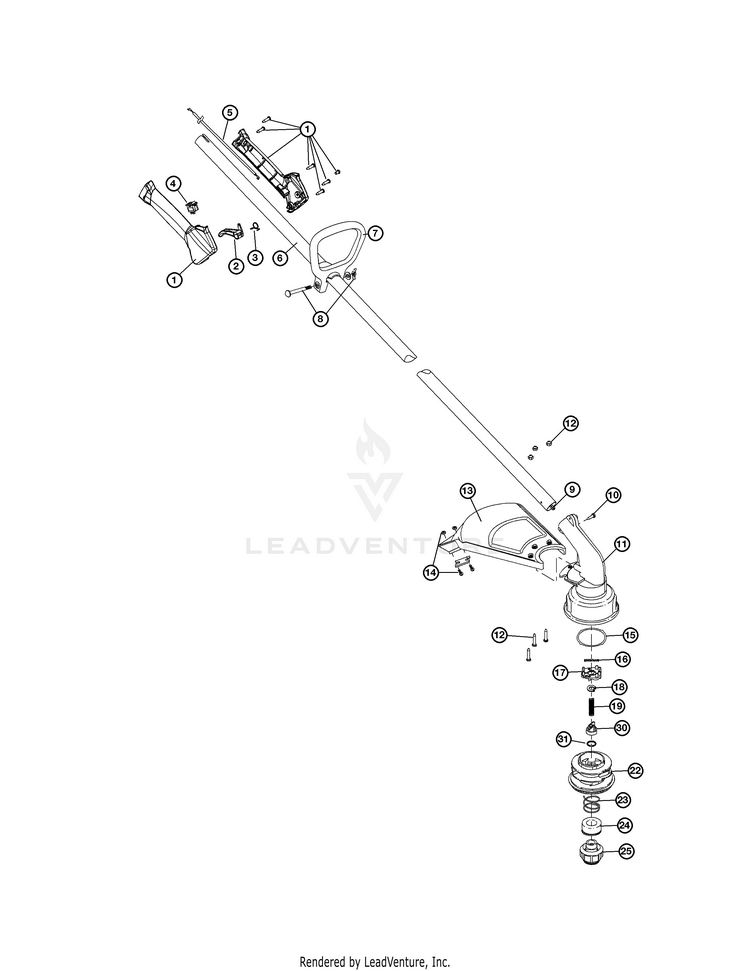

General Assembly

...
...
1
Throttle Housing Assembly (Incl. Ref. No. 2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
ASSEMBLY, DRIVE SHAFT H MTD-791-181808
...
7
D-Handle Assembly (Incl. Ref. No. 8) MTD-753-05461
...
8
D-Handle Hardware MTD-791-181587
...
9
Flexible Drive Shaft MTD-791-181817
...
10
Anti-Rotation Screw MTD-791-145569
...
11
GEARBOX ASSEMBLY MTD-753-05841
...
12
ASSEMBLY, GUARD MOUNTING SCREWS MTD-791-180547
...
13
ASSEMBLY, GUARD AND BLADE (Incl. Ref. No. 15) MTD-791-180548
...
14
Blade Assembly MTD-791-682061
...
15
Thrust Washer MTD-791-181561
...
16
Slider MTD-753-04257
...
17
SPRING, SPEED SPOOL S MTD-791-181459
...
18
E-Clip MTD-791-181532
...
19
SPRING, PLUNGER MTD-791-181531
...
20
PLUNGER, SPEED SPO MTD-791-181462
...
21
C-CLIP MTD-791-181463
...
22
Inner Reel MTD-791-181772
...
23
Large Spring MTD-791-181465B
...
24
SEAL, SPEED SPOOL MTD-791-181467
...
25
BUMP HEAD KNOB ASSEMBLY (Incl. Ref. No. 23 & 24) MTD-791-181468B
...
...
...
...
...
