Craftsman 41AD537C799 (316.79121) Gas String Trimmer

Model: 41AD537C799 (316.79121)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

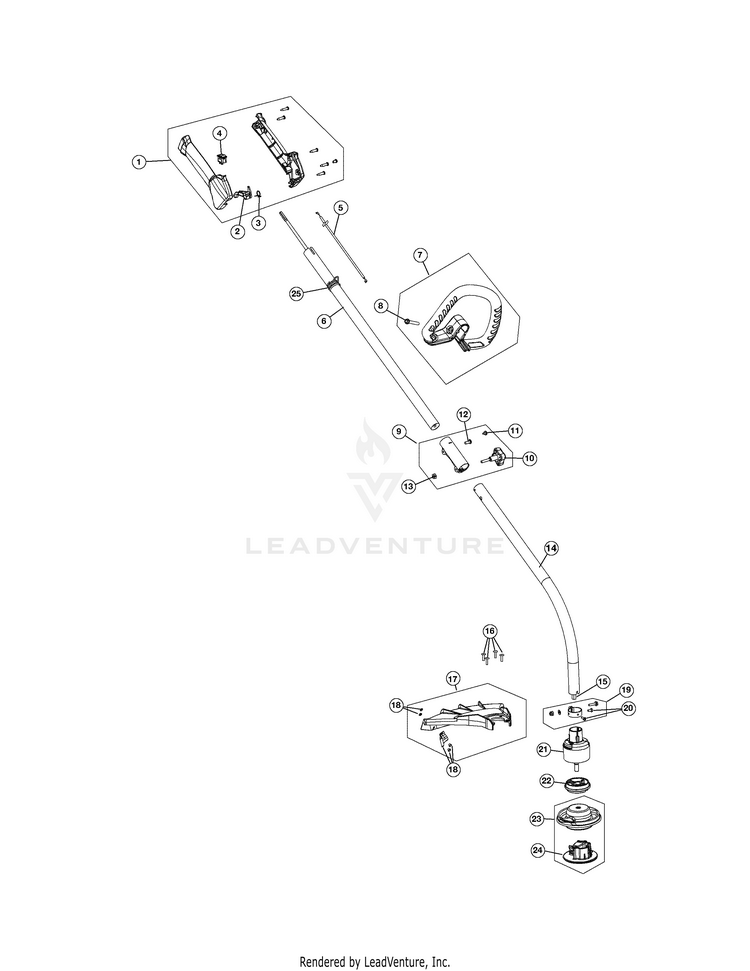

General Assembly

...
...
1
Throttle Housing Assembly (Incl Ref No.2-4) MTD-753-04234
...
2
Throttle Trigger MTD-753-04119
...
3
Throttle Trigger Spring MTD-791-182690
...
4
Switch Assembly MTD-791-182405
...
5
Throttle Cable Assembly MTD-753-05266
...
6
Upper Drive Shaft Assembly MTD-753-04236
...
7
D-Handle Assembly (Incl Ref No.8) MTD-753-06039
...
8
Handle Hardware MTD-753-06040
...
9
Split Boom Coupler (Incl Ref No.10-13) MTD-753-1190
...
10
CLICK LINK CLAMP MTD-697-00661-9
...
11
Coupler Anti-Rotation Screw MTD-791-182057
...
12
Coupler Bolt MTD-791-181617
...
13
Adjustment Knob Nut MTD-712-04018A
...
14
Lower Drive Shaft Housing (Incl Ref No.15) MTD-791-182387
...
15
Lower Flexible Drive Shaft MTD-791-181852
...
16
SCREW, #10-24X.50 M MTD-791-181858
...
17
GUARD ASSEMBLY:W/BLADE MTD-753-05032
...
18
Blade Assembly MTD-753-05033
...
19
CLAMP ASSEMBLY-LOWER MTD-791-153597
...
20
Anti-Rotation Screw MTD-791-145569
...
21
HOUSING ASSEMBLY:BUSH MTD-753-05050
...
22
ADAP:CS BOOM MTD-753-05034
...
23
Cutting Head Assembly (Incl Ref No.24) MTD-753-05035
...
24
FIXED HEAD CAP MTD-731-05193
...
25
SHOULDER STRAP CLAMP MTD-4301A
...
25
Shoulder Strap Clip MTD-791-610327
...
xx
TUBE:LINE:SEARS DE Not shown MTD-697-00368
...
...
...
...
...
