Craftsman 41AD528C799 (316.791940) Gas String Trimmer

Model: 41AD528C799 (316.791940)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

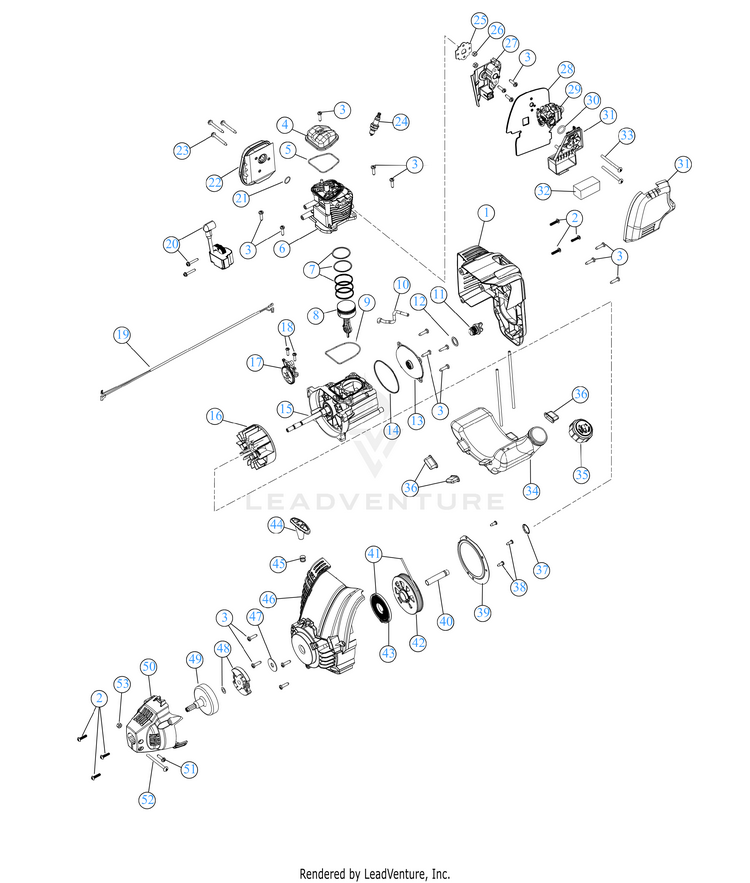

Engine Assembly

...
...
1
ENGINE COVER ASSEMBLY (Incl. 2 & 3) MTD-753-05206
...
2
SCREW 8-16 x 3/4 MTD-710-04194
...
3
SCREW, M5 X18 MTD-9052-1
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY (Incl. 3, 5 & 9) MTD-753-05228
...
7
PISTON RING ASSEMBLY MTD-753-05229
...
8
PISTON ASSEMBLY (Incl. 7) MTD-753-05230
...
9
Cylinder O-Ring MTD-753-05232
...
10
Breather Hose MTD-791-182379
...
11
Oil Plug (Incl. 12) MTD-753-05408
...
12
Oil Plug O-Ring MTD-791-182290
...
13
CRANKCASE COVER MTD-753-05237
...
14
Crankcase Cover O-ring MTD-753-05238
...
15
CRANKCASE ASSEMBLY (Incl. 9, 10 & 14) MTD-753-05325
...
16
Flywheel Assembly MTD-753-05240
...
17
CAM BRACKET ASSEMBLY (Incl. 18) MTD-753-05241
...
18
CAM SCREW 8-32X.625 MTD-710-04584
...
19
Lead Wires MTD-753-05264
...
20
MODULE MTD-753-05447
...
21
Muffler Gasket MTD-753-05244
...
22
Muffler Assembly (Incl. 21 & 23) MTD-753-05245
...
23
Screw MTD-710-04809
...
24
SPARK PLUG 4 CYCL MTD-794-00082
...
25
GASKET/INSULATOR MTD-753-05247
...
26
NUT 10-32 MTD-712-04099
...
27
Insulator MTD-753-05249
...
28
Carburetor Gasket MTD-753-05366
...
29
CARBURETOR WITH PRIMER MTD-753-05440
...
30
O-Ring MTD-791-181751
...
31
AIR CLEANER ASSEMBLY (Incl. 32) MTD-753-05831
...
32
Air Filter MTD-753-05254
...
33
SCREW 10-32X2.5 MTD-710-04517
...
34
Fuel Tank Assembly w/Fuel Lines (Incl. 35) MTD-753-05256
...
35
Fuel Cap MTD-753-1229
...
36
Fuel Tank Pads MTD-753-05259
...
37
PUSH NUT MTD-712-04096
...
38
Screw, 10-9 x .50 MTD-1755
...
39
PLATE:PRESS:4 CY:AST (Incl. 38) MTD-753-05074
...
40
SPACER :2.165" MTD-750-04434
...
41
STARTER PULLEY ASSEMBLY (Incl. 42 & 43) MTD-753-05833
...
42
Rope MTD-791-613103
...
43
Recoil Spring MTD-753-04286
...
44
PULL START HANDLE MTD-631-04164B
...
45
Rope Guide MTD-791-611061
...
46
STARTER HOUSING ASSEMBLY (Incl. 3, 37-39 & 42-45) MTD-753-05832
...
47
WASH, CLUTCH O.D. 1.155 +/- .0 MTD-9162-1
...
48
Clutch & Clutch Washer MTD-753-1238
...
49
Clutch Drum MTD-791-153592
...
50
Clutch Cover (Incl. 2) MTD-753-05263
...
51
Anti-Rotation Screw MTD-791-182519
...
52
SCREW MTD-9689A
...
53
HEX NUT MTD-712-0161
...
xx
SPARK ARRESTER MTD-753-05297
...
xx
SHORT BLOCK (Incl. 3-12, 14, 15, 17 & 24) MTD-753-05324A
...
...
...
...
...
